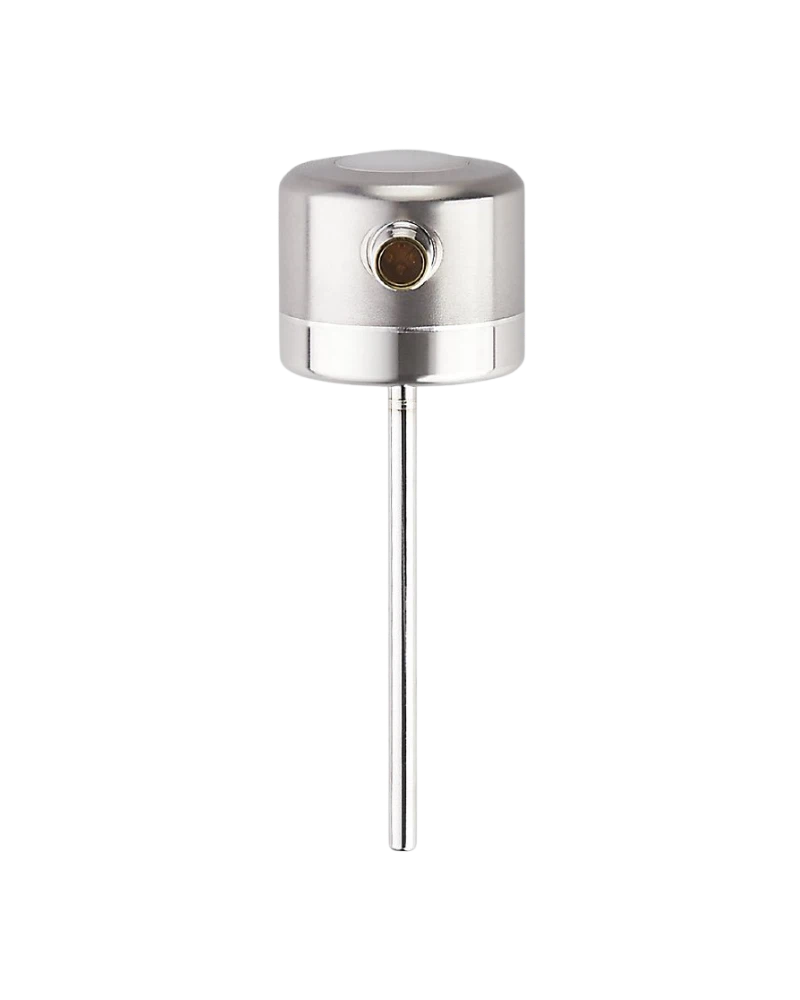

The TCC201 is a compact self-monitoring temperature transmitter designed for accurate industrial process temperature measurement. Its Pt1000 sensing element provides precise temperature measurement while the NTC reference element supports sensor-condition monitoring. IO-Link communication enables convenient configuration, diagnostics and process-data access. The compact probe configuration is suitable for installations where controlled insertion depth is required. It provides a robust combination of accuracy, diagnostics and automated temperature monitoring for process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC201 belongs to the TCC family of self-monitoring temperature transmitters. It is designed to provide stable measurement performance while continuously monitoring sensor accuracy. The transmitter supports both conventional analogue integration and digital IO-Link communication. Calibration-check functionality can help identify deviations between scheduled calibration intervals. This makes the device useful for quality-focused temperature applications.
The transmitter uses a Pt1000 primary measuring element and NTC reference element. Its measuring range extends from -25...160 °C. The analogue output provides a 4...20 mA signal for standard automation systems. IO-Link provides additional measurement, parameter and diagnostic information. Calibration-check monitoring supports early identification of measurement deviations.
The TCC201 uses a Ø6 mm clamp-adapter process configuration. The installation length is 50 mm, making it suitable for compact process measurement points. Stainless-steel wetted materials provide durability and hygienic compatibility. M12 connectivity provides a reliable industrial interface. Diagnostic functions help operators maintain measurement accuracy over the operating life.
Pt1000 temperature measurement
NTC reference element
Self-monitoring temperature technology
-25...160 °C measuring range
4...20 mA analogue output
IO-Link communication
Calibration-check functionality
Diagnostic switching output
Stainless-steel construction
M12 connection
Food processing
Dairy applications
Beverage processing
Liquid temperature monitoring
Process heating
Cooling systems
CIP-related processes
PLC-based temperature control
Quality monitoring
Predictive maintenance
| No. | Specification | Details |
|---|---|---|
| 1 | Product Code | TCC201 |
| 2 | Order Code | TCC050K1ED06-A-DKG/US |
| 3 | Product Type | Self-monitoring temperature transmitter |
| 4 | Product Family | TCC Series |
| 5 | Measuring Element | Pt1000 |
| 6 | Reference Element | NTC |
| 7 | Measuring Range | -25...160 °C |
| 8 | Factory Setting | -10...150 °C |
| 9 | Analogue Output | 4...20 mA |
| 10 | Digital Output | 1 diagnostic output |
| 11 | Communication | IO-Link |
| 12 | IO-Link Revision | 1.1 |
| 13 | Process Connection | Clamp adapter Ø6 mm |
| 14 | Installation Length | 50 mm |
| 15 | Probe Diameter | 6 mm |
| 16 | Pressure Rating | 160 bar |
| 17 | Media | Liquids and gases |
| 18 | Supply Voltage | 18...32 V DC |
| 19 | Current Consumption | 10 mA at 24 V |
| 20 | Protection Class | III |
| 21 | Protection Rating | IP68 / IP69K |
| 22 | Housing Material | Stainless steel 316L |
| 23 | Electrical Connection | M12 |
| 24 | Output Accuracy | ±0.2 K |
| 25 | Diagnostic Function | Calibration check and fault diagnostics |
