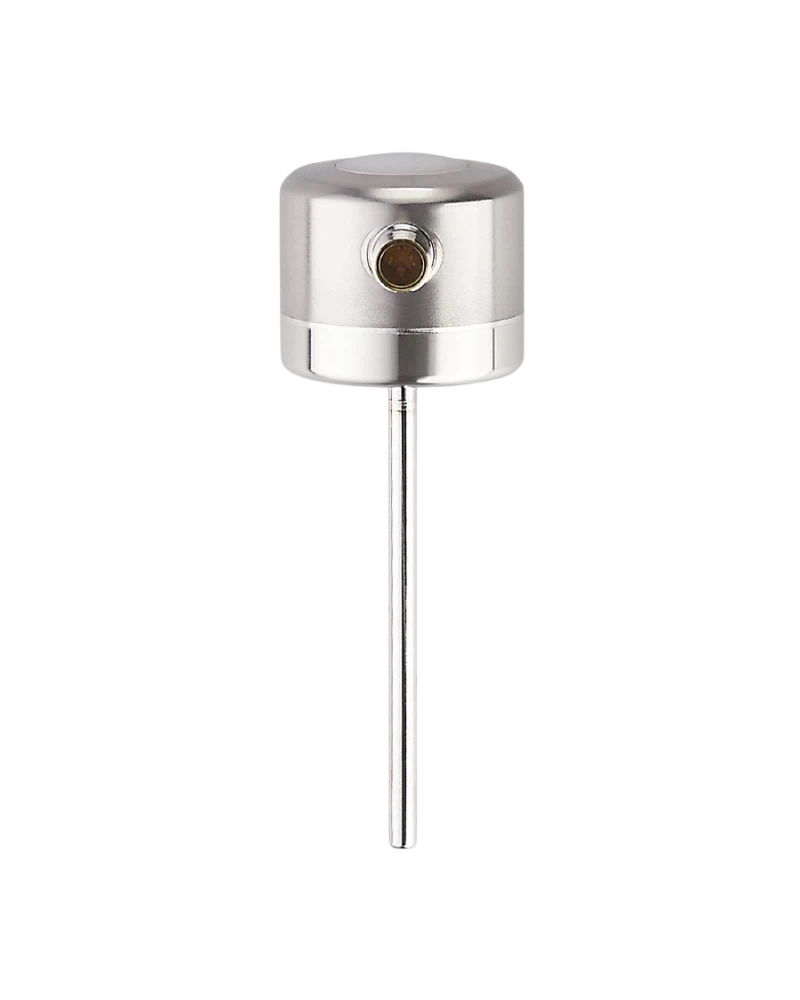

The IFM TCC201 temperature transmitter is designed for accurate and reliable temperature measurement in demanding industrial and food-processing applications. It combines a Pt1000 measuring element with an NTC reference element and provides a scalable measuring range of -25 to 160 °C. The transmitter features a 4–20 mA analogue output, diagnostic output and IO-Link communication. Its 550 mm installation length, 160 bar pressure rating and IP68/IP69K protection support dependable long-term process monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TCC201 is a self-monitoring temperature transmitter designed for process applications where reliable temperature measurement and sensor diagnostics are important. It uses a Pt1000 measuring element together with an NTC reference element to support continuous monitoring of measurement accuracy. The transmitter provides analogue and digital communication options, while IO-Link allows convenient parameter setting, process-value monitoring and diagnostic access.
The TCC201 provides a scalable measuring range from -25 to 160 °C, with a factory setting of -10 to 150 °C. Its calibration-check limit can be configured from 0.5 to 3 K in 0.05 K steps, helping monitor deviations between the measuring and reference elements. The analogue output and IO-Link accuracy are specified at ±0.2 K, while the dynamic response is approximately 1.5 seconds for T05 and 4 seconds for T09.
The transmitter features a 550 mm installation length and a 6 mm probe diameter with a clamp fitting connection. The wetted parts are manufactured from stainless steel 316L and have a surface roughness of Ra <0.8 µm. It is suitable for liquids and gases and can withstand pressures up to 160 bar. IP68/IP69K protection, robust stainless-steel construction and gold-plated M12 contacts make it suitable for demanding process environments.
Pt1000 measuring element
NTC reference element
Self-monitoring temperature measurement
Scalable measuring range
-25 to 160 °C measuring range
Factory setting -10 to 150 °C
4–20 mA analogue output
Diagnostic output
IO-Link communication
Calibration check function
Configurable calibration check limit
550 mm installation length
6 mm probe diameter
160 bar pressure rating
IP68 and IP69K protection
Gold-plated M12 contacts
PNP/NPN electrical design
Integrated watchdog
Reverse polarity protection
Simulation mode
Food processing equipment
Beverage processing systems
Industrial process monitoring
Process tanks
Long pipelines
Liquid temperature measurement
Gas temperature measurement
Heating systems
Cooling systems
Temperature control systems
Process automation
Sensor condition monitoring
Calibration verification
Industrial equipment protection
| Specification | Details |
|---|---|
| Product Code | TCC201 |
| Brand | IFM |
| Product Type | Temperature transmitter |
| Model | TCC550K1ED06-A-DKG/US |
| Measuring Element | 1 x Pt1000 |
| Reference Element | 1 x NTC |
| Measuring Principle | Resistance temperature measurement |
| Measuring Range | -25 to 160 °C |
| Temperature Range | -13 to 320 °F |
| Factory Setting | -10 to 150 °C |
| Measuring Range | Scalable |
| Calibration Check Limit | 0.5 to 3 K |
| Calibration Setting Step | 0.05 K |
| Analogue Output | 4–20 mA |
| Digital Output | 1 |
| Diagnostic Function | Calibration check status and error diagnostics |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Transmission Type | COM2, 38.4 kBaud |
| IO-Link Resolution | 0.01 K |
| Electrical Design | PNP/NPN |
| Supply Voltage | 18–32 V DC |
| Current Consumption | 10 mA at 24 V |
| Process Connection | Clamp fitting Ø6 mm |
| Installation Length | 550 mm |
| Probe Length | 550 mm |
| Probe Diameter | 6 mm |
| Pressure Rating | 160 bar / 16 MPa |
| Minimum Installation Depth | 15 mm |
| Media | Liquids and gases |
| Analogue Accuracy | ±0.2 K |
| IO-Link Accuracy | ±0.2 K |
| Analogue Temperature Coefficient | < ±0.02 % of span / 10 K |
| IO-Link Temperature Coefficient | < ±0.01 % of span / 10 K |
| Dynamic Response T05/T09 | 1.5 / 4 s |
| Ambient Temperature | -25 to 70 °C |
| Storage Temperature | -40 to 100 °C |
| Protection Rating | IP68 / IP69K |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Integrated Watchdog | Yes |
| Power-on Delay | 6 s |
| Housing Material | Stainless steel 316L, PEI, FKM, PFA |
| Wetted Material | Stainless steel 316L / 1.4404 |
| Wetted Surface Roughness | Ra <0.8 µm |
| Electrical Connection | 1 x M12, A-coded |
| Connector Contacts | Gold-plated |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 35 g, 10–2000 Hz |
| MTTF | 329 years |
| Housing Dimensions | Ø50 / L = 593.5 mm |
| Weight | 386.6 g |
| Pack Quantity | 1 piece |
| Manufacturer | IFM electronic |
