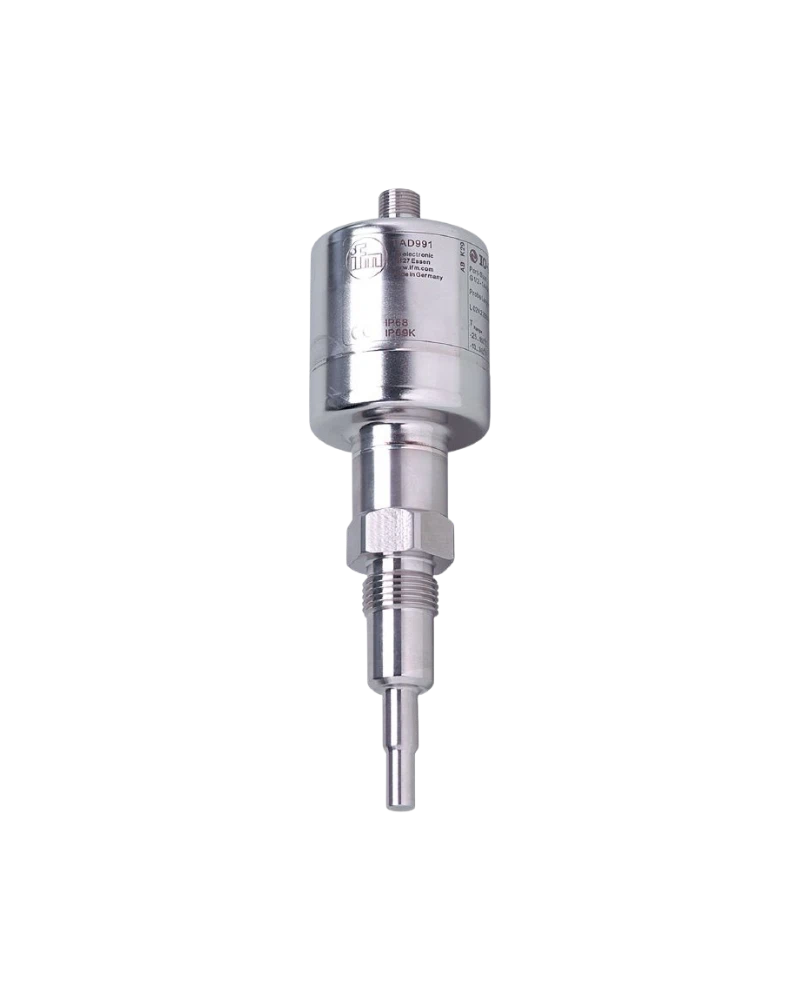

The IFM TAD991 temperature transmitter with drift detection is designed for precise and self-monitoring temperature measurement in industrial and hygienic process applications. It combines a Pt1000 measuring element with an NTC backup element to provide redundant temperature measurement. The transmitter offers a 4–20 mA analogue output, configurable diagnostic output and IO-Link communication. Its G1/2 threaded connection, 33 mm installation length, 50 bar pressure rating and IP68/IP69K protection support reliable process integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TAD991 is an intelligent IFM temperature transmitter designed for process applications requiring reliable temperature measurement and sensor-condition monitoring. It uses a thermally coupled Pt1000 and NTC arrangement with backup functionality. If one sensing element fails, the other element can continue temperature measurement. The transmitter also provides diagnostic functions that help identify drift and faults before they affect the process.
The TAD991 provides a scalable temperature measuring range of -25 to 160 °C, with a factory setting of 0 to 150 °C. Drift warning and drift alarm thresholds can be configured between 0.2 and 5 °C. The sensor provides a 4–20 mA analogue output and a configurable diagnostic output for drift and fault monitoring. IO-Link communication enables parameter setting, process-value access and diagnostic information.
The TAD991 uses a G1/2 external thread with sealing cone and has a 33 mm installation length. Its cylindrical housing uses stainless steel, PEI and FKM materials, while the wetted parts are stainless steel 316L/1.4404 with a surface roughness of Ra <0.6 µm. The sensor is suitable for liquids and gases and provides IP68/IP69K protection. It can be used in food processing, beverage production, process machinery and industrial temperature-control systems.
Pt1000 and NTC dual sensing elements
Thermally coupled measuring elements
Backup temperature measurement
Integrated drift detection
Drift warning and alarm functions
-25 to 160 °C measuring range
4–20 mA analogue output
Configurable diagnostic output
IO-Link communication
G1/2 external threaded connection
33 mm installation length
50 bar pressure rating
IP68 and IP69K protection
Gold-plated M12 contacts
Free 5-point calibration certificate
Food and beverage processing
Hygienic process systems
Process temperature monitoring
Process tanks
Pipeline temperature measurement
Liquid processing systems
Gas processing systems
Heating and cooling equipment
Temperature control systems
Industrial automation
Process safety monitoring
Predictive maintenance
Equipment protection
| Specification | Details |
|---|---|
| Product Code | TAD991 |
| Brand | IFM |
| Product Type | Temperature transmitter with drift detection |
| Model | TAD033KLER12-A-ZKG/US |
| Measuring Elements | 1 x Pt1000 + 1 x NTC |
| Measuring Element Function | Thermally coupled with backup function |
| Measuring Range | -25 to 160 °C |
| Factory Setting | 0 to 150 °C |
| Temperature Range | -13 to 320 °F |
| Process Connection | G1/2 external thread with sealing cone |
| Installation Length | 33 mm |
| Probe Diameter | 10 mm |
| Minimum Installation Depth | 25 mm |
| Media | Liquids and gases |
| Pressure Rating | 50 bar / 5 MPa |
| Analogue Output | 4–20 mA |
| Digital Output | 1 configurable output |
| Diagnostic Function | Drift and fault monitoring |
| Electrical Design | PNP/NPN |
| Communication | IO-Link |
| IO-Link Revision | 1.1 |
| Supply Voltage | 18–32 V DC |
| Current Consumption | 6 mA at 24 V |
| Protection Class | III |
| Protection Rating | IP68 / IP69K |
| Dynamic Response T05/T09 | 3 / 6 s |
| Resolution | 0.05 °C |
| Drift Warning | 0.2 to 5 °C |
| Drift Alarm | 0.2 to 5 °C |
| Accuracy | ±0.2 K in -10 to 130 °C range |
| Temperature Coefficient | < ±0.01 % of span / 10 K |
| Wetted Material | Stainless steel 316L / 1.4404 |
| Wetted Surface Roughness | Ra <0.6 µm |
| Housing Material | Stainless steel 316L/1.4404, PEI, FKM |
| Electrical Connection | M12, A-coded |
| Connector Contacts | Gold-plated |
| Ambient Temperature | -25 to 70 °C |
| Storage Temperature | -40 to 85 °C |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 20 g, 10–2000 Hz |
| Power-on Delay | 8 s |
| Integrated Watchdog | Yes |
| Manufacturer | IFM electronic |
