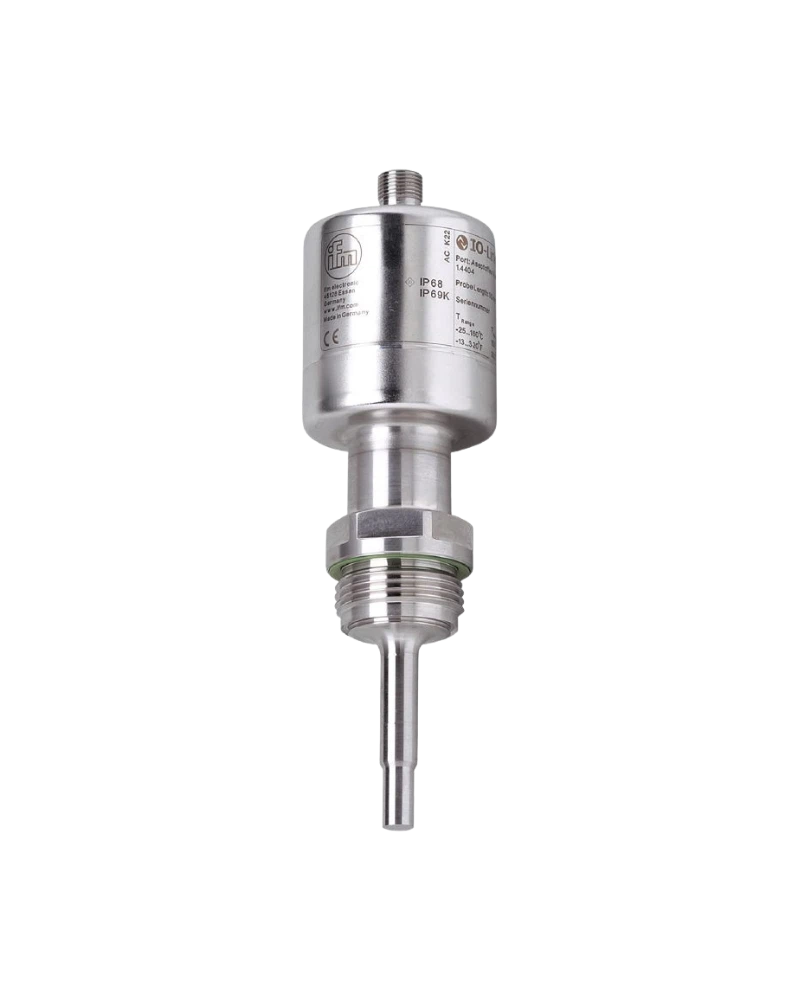

TAD081 is an advanced hygienic temperature transmitter with integrated drift and fault detection. It combines accurate temperature measurement with self-monitoring for improved process safety. The transmitter uses IO-Link for convenient parameterisation and diagnostic communication. Its 50 mm probe and hygienic process construction make it suitable for food and beverage applications. A free five-point calibration certificate supports traceable measurement quality.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TAD081 is designed for applications where temperature measurement accuracy and sensor reliability are critical. It uses a dual sensing concept to monitor temperature and detect sensor drift. The device provides a scalable 4–20 mA output and a diagnostic switching output. IO-Link enables configuration of drift thresholds and diagnostic functions. Hygienic materials and process connections support sanitary production.
The transmitter continuously monitors the sensing system for measurement drift. Drift warning and alarm thresholds can be configured. Diagnostic information helps identify sensor degradation before it causes process problems. This supports preventive maintenance and reduces unexpected failures. The self-monitoring function improves process safety.
TAD081 is designed for food and beverage applications. Its hygienic construction supports cleaning and sanitary operation. The 50 mm installation length provides practical process insertion. IO-Link simplifies configuration and maintenance. The transmitter is suitable for demanding production environments.
Drift detection
Fault monitoring
Pt1000 sensing system
50 mm probe
−25…160 °C range
4–20 mA output
Diagnostic switching output
IO-Link 1.1
COM1
Scalable output
Drift warning
Drift alarm
Self-monitoring
Five-point calibration certificate
Hygienic design
EHEDG suitability
FDA-compatible materials
Food and beverage application
Digital diagnostics
Process safety
Food processing
Dairy production
Breweries
Beverage processing
CIP systems
SIP systems
Process tanks
Sanitary pipelines
Filling machines
Temperature-critical processes
Quality assurance
Preventive maintenance
Process safety
Sensor diagnostics
Automated temperature control
| Specification | Details |
|---|---|
| Model | TAD081 |
| Order code | TAD050KLEM01-A-ZKG/US |
| Product type | Temperature transmitter with drift detection |
| Sensor | Pt1000 + NTC concept |
| Probe length | 50 mm |
| Measuring range | −25…160 °C |
| Factory setting | 0…150 °C |
| Analogue output | 4–20 mA |
| Diagnostic output | Switching/diagnostic |
| Output function | NO/NC/diagnostic |
| Communication | IO-Link |
| IO-Link version | 1.1 |
| COM mode | COM1 |
| Resolution | 0.05 K |
| Drift monitoring | Yes |
| Drift warning | Configurable |
| Drift alarm | Configurable |
| T05 | Approx. 3 s |
| T09 | Approx. 6 s |
| Supply | 18–32 V DC |
| Process application | Hygienic |
| Housing | Stainless steel |
| Wetted material | Hygienic-grade materials |
| Protection | High IP protection |
| Calibration | Five-point certificate |
| Application | Food/beverage |
