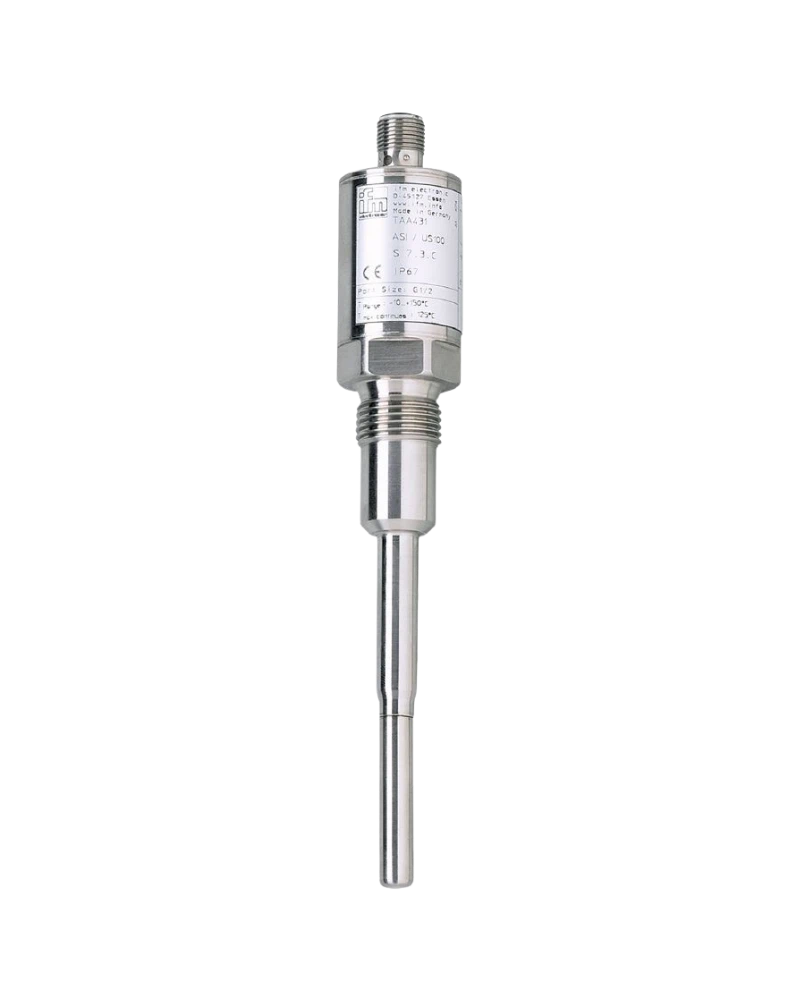

The IFM TAA431 temperature transmitter is designed for industrial process temperature measurement and automation. It uses a Pt1000 Class A sensing element and an AS-i output for communication with compatible automation systems. The transmitter features a G1/2 external threaded process connection and an 87.5 mm installation length. It is suitable for liquids and gases and supports reliable temperature monitoring in machinery, pipelines, process equipment and industrial control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TAA431 is a compact IFM temperature transmitter developed for industrial process applications. Its Pt1000 Class A measuring element provides dependable temperature measurement. The transmitter provides an AS-i output for integration with suitable automation systems. Its G1/2 threaded process connection enables secure installation in compatible industrial equipment.
TAA431 provides a -10 to 150 °C measuring range and an 87.5 mm installation length. It is designed for liquids and gases and has a pressure rating of up to 300 bar. The transmitter includes gold-plated contacts and operates from an 18–31.6 V DC supply. Its industrial construction supports reliable process monitoring and automation.
The TAA431 is suitable for industrial process temperature monitoring, machine automation and fluid-processing systems. Its AS-i interface supports connection to compatible automation networks. The longer installation length allows suitable insertion into process equipment. The sensor can support temperature control, equipment protection and process supervision. It is suitable for industrial environments where reliable temperature information is required.
Pt1000 Class A sensor
-10 to 150 °C measuring range
G1/2 external thread
87.5 mm installation length
AS-i output
Gold-plated contacts
300 bar pressure rating
Suitable for liquids and gases
18–31.6 V DC supply
Industrial process construction
Industrial process monitoring
Fluid processing
Pipeline systems
Machine automation
Tank temperature measurement
Heating systems
Cooling systems
AS-i automation
Process control
Equipment protection
| Specification | Details |
|---|---|
| Product Code | TAA431 |
| Brand | IFM |
| Product Type | Temperature transmitter |
| Model | TAA123CCDR12-ASIVG/US |
| Sensor Element | Pt1000 |
| Accuracy Class | Class A |
| Measuring Range | -10 to 150 °C |
| Temperature Range | 14 to 302 °F |
| Process Connection | G1/2 external thread |
| Installation Length | 87.5 mm |
| Media | Liquids and gases |
| Pressure Rating | 300 bar |
| Minimum Installation Depth | 15 mm |
| Output | Analogue |
| Communication | AS-i |
| Operating Voltage | 18–31.6 V DC |
| Current Consumption | <25 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Measuring Element | 1 x Pt1000 |
| Special Feature | Gold-plated contacts |
| Installation | Process equipment |
| Application | Industrial automation |
| Manufacturer | IFM electronic |
