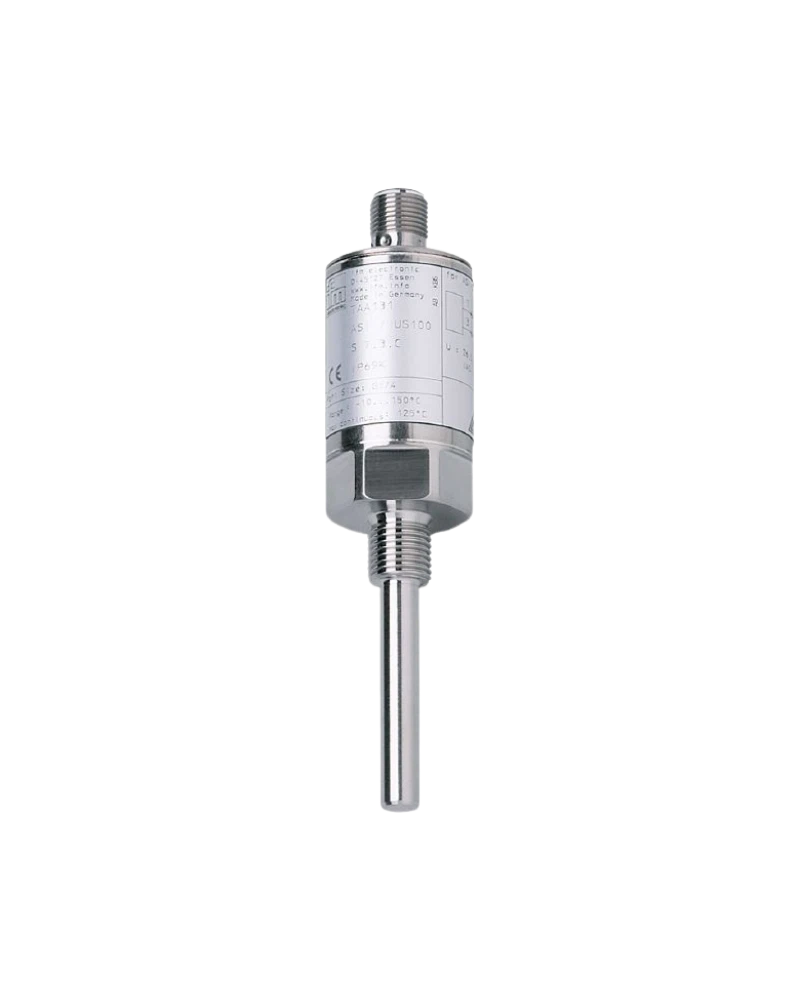

The IFM TAA131 temperature transmitter is a compact industrial temperature measuring device designed for reliable process monitoring. It uses a Pt1000 Class A sensing element and provides an AS-i analogue signal for integration with industrial automation networks. Its G1/4 external threaded connection and 60 mm installation length support practical process installation. The transmitter is suitable for liquids and gases and can be used in temperature control, monitoring and industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TAA131 is an IFM compact temperature transmitter designed for industrial process applications. It uses a Pt1000 Class A measuring element for accurate temperature detection. The transmitter converts the measured temperature into an AS-i compatible signal for automation systems. Its compact threaded construction supports integration into industrial machinery and process equipment.
The TAA131 has a -10 to 150 °C measuring range and a G1/4 external threaded process connection. Its installation length is 60 mm, providing a practical sensing depth for industrial equipment. The sensor is designed for liquids and gases and has a high pressure rating. Its gold-plated contacts support reliable electrical connections in suitable industrial installations.
The transmitter can be used for process temperature monitoring, machine temperature supervision and industrial automation. The AS-i output allows integration with compatible automation networks. Its compact construction makes it suitable for installation in machinery and process equipment. It supports continuous temperature feedback for control and monitoring. The transmitter can also assist in equipment protection by detecting temperature changes.
Pt1000 Class A element
-10 to 150 °C range
G1/4 external thread
60 mm installation length
AS-i output
Gold-plated contacts
Suitable for liquids and gases
400 bar pressure rating
Compact transmitter construction
Industrial automation integration
Industrial process monitoring
Machine temperature measurement
Tank temperature monitoring
Pipeline applications
Heating systems
Cooling systems
Factory automation
AS-i automation networks
Temperature control
| Specification | Details |
|---|---|
| Product Code | TAA131 |
| Brand | IFM |
| Product Type | Temperature transmitter |
| Model | TAA060CCDR14-ASIVG/US |
| Sensor Element | Pt1000 |
| Accuracy Class | Class A |
| Measuring Range | -10 to 150 °C |
| Temperature Range | 14 to 302 °F |
| Process Connection | G1/4 external thread |
| Installation Length | 60 mm |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Minimum Installation Depth | 15 mm |
| Output Type | Analogue |
| Communication | AS-i |
| Operating Voltage | 18–31.6 V DC |
| Current Consumption | <25 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Measuring Element | 1 x Pt1000 |
| Special Feature | Gold-plated contacts |
| Installation | Process equipment |
| Application | Industrial automation |
| Manufacturer | IFM electronic |
