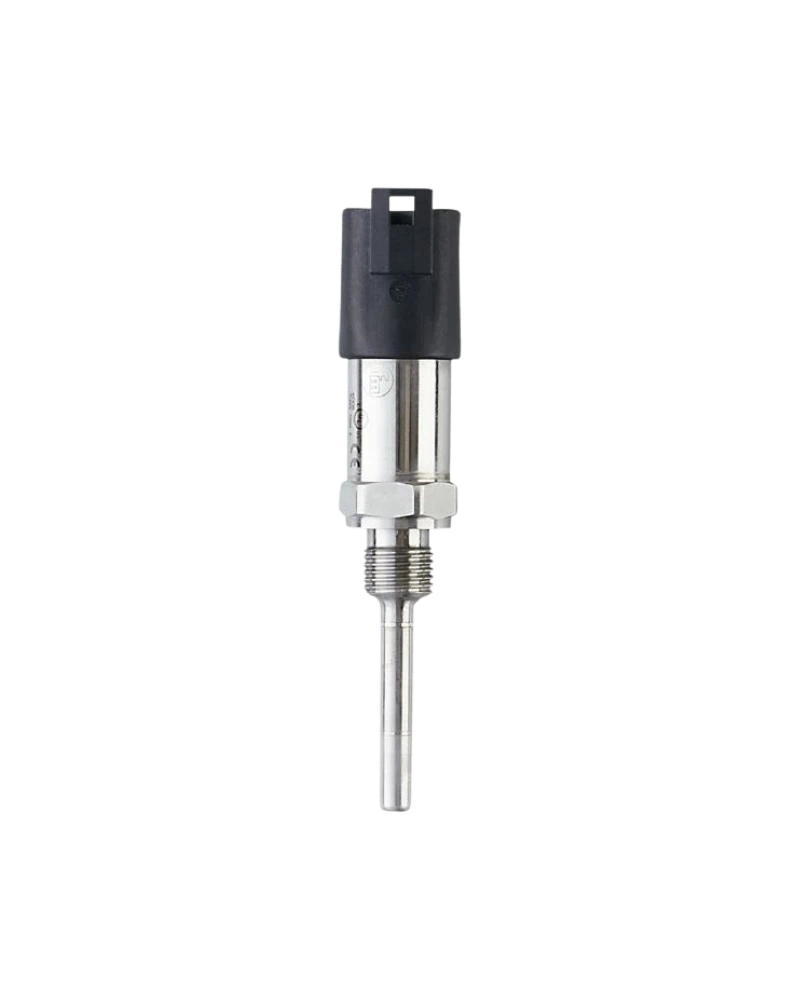

TA4115 is a 50 mm temperature transmitter designed for mobile and industrial machinery. It provides a −50…150 °C measuring range and 4–20 mA analogue output. The G 1/4 process connection supports secure machine installation. Its DEUTSCH connector is suitable for mobile-machine electrical systems. Robust stainless-steel construction and high environmental protection provide reliable performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA4115 provides a longer sensing depth than the 25 mm TA4105. The 50 mm probe is suitable for hydraulic systems and machine components requiring deeper measurement. Its analogue output integrates with machine controllers. The 10–30 V DC supply is suitable for mobile electrical architectures. The transmitter provides fast and stable temperature monitoring.
−50…150 °C
50 mm installation length
G 1/4 connection
4–20 mA
10–30 V DC
DEUTSCH connector
Pt1000
Stainless steel
Gold-plated contacts
1 s T05
3 s T09
IP68/IP69K
Reverse-polarity protection
Overload protection
Short-circuit protection
Vibration resistance
Shock resistance
Compact housing
PLC compatible
Mobile machinery
Hydraulic systems
Construction equipment
Agricultural machinery
Industrial equipment
Pumps
Compressors
Engine systems
Machine control
Temperature alarms
Equipment protection
Preventive maintenance
Machine diagnostics
PLC automation
Process monitoring
| Specification | Details |
|---|---|
| Model | TA4115 |
| Order code | TA-050CLEM14-A-ZVG/DE |
| Measuring range | −50…150 °C |
| Installation length | 50 mm |
| Process connection | G 1/4 |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | DEUTSCH |
| Sensor | Pt1000 |
| Contacts | Gold-plated |
| T05 | 1 s |
| T09 | 3 s |
| Ambient | −40…100 °C |
| Protection | IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Reverse polarity | Yes |
| Overload | Yes |
| Short circuit | Yes |
| Media | Liquids/gases |
| EMC | Industrial |
| Shock | High |
| Vibration | High |
| Application | Mobile machinery |
| Integration | Controller/PLC |
