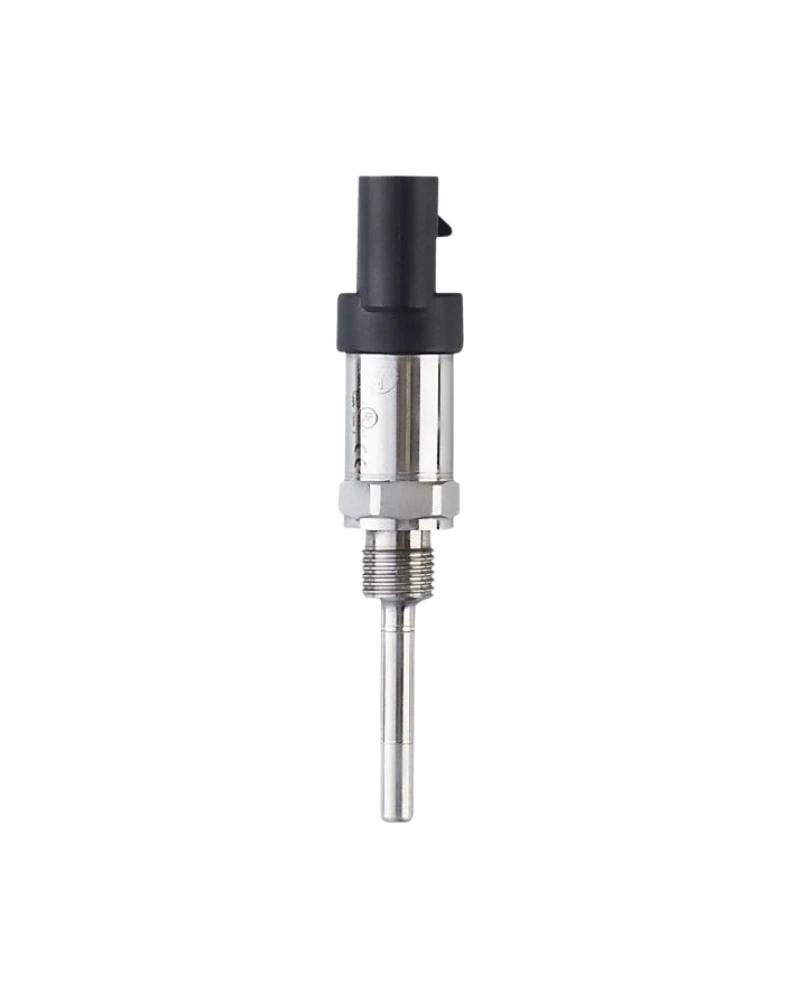

The IFM TA5115 temperature transmitter is designed for accurate industrial temperature measurement using a Pt1000 Class A sensing element. It features a 50 mm installation length, G1/4 external threaded process connection and a 4–20 mA analogue output. The transmitter operates from a 10–30 V DC supply and is suitable for liquids and gases. Its compact construction, robust protection and reliable signal transmission make it suitable for mobile machinery and industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TA5115 provides reliable temperature measurement and analogue signal transmission for industrial applications. Its Pt1000 Class A sensing element supports accurate resistance-based temperature detection. The transmitter is designed for installation through a G1/4 threaded connection. It can provide continuous temperature information to PLCs, controllers and monitoring equipment.
The transmitter has a -50 to 150 °C measuring range and a 50 mm installation length. It provides a 4–20 mA analogue output and operates from a 10–30 V DC supply. The design includes short-circuit and overload protection for dependable electrical operation. Its stainless-steel and industrial-grade construction supports demanding applications.
TA5115 is suitable for mobile machines, hydraulic systems, heating and cooling circuits and industrial machinery. Its 50 mm installation length allows direct measurement at suitable process locations. The standard 4–20 mA output allows simple integration into industrial control systems. Its robust construction supports continuous operation. It can be used for temperature control, process supervision and equipment protection.
Pt1000 Class A sensing element
-50 to 150 °C measuring range
50 mm installation length
G1/4 external thread
4–20 mA output
10–30 V DC supply
400 bar pressure rating
IP68 / IP69K protection
Short-circuit protection
Overload protection
Mobile machinery
Hydraulic equipment
Industrial machinery
Cooling systems
Heating systems
Process monitoring
Temperature control
PLC systems
Equipment protection
Factory automation
| Specification | Details |
|---|---|
| Product Code | TA5115 |
| Brand | IFM |
| Product Type | Temperature transmitter |
| Model | TA-050CLEM14-A-ZVG/AM |
| Measuring Element | Pt1000 |
| Accuracy Class | Class A |
| Measuring Range | -50 to 150 °C |
| Temperature Range | -58 to 302 °F |
| Process Connection | G1/4 external thread |
| Installation Length | 50 mm |
| Probe Length | 38 mm |
| Probe Diameter | Approx. 6 mm |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Output Signal | 4–20 mA |
| Supply Voltage | 10–30 V DC |
| Current Consumption | <30 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Response T05/T09 | 1 / 3 s |
| Ambient Temperature | -40 to 100 °C |
| Housing Material | Stainless steel / PPS / FKM |
| Manufacturer | IFM electronic |
