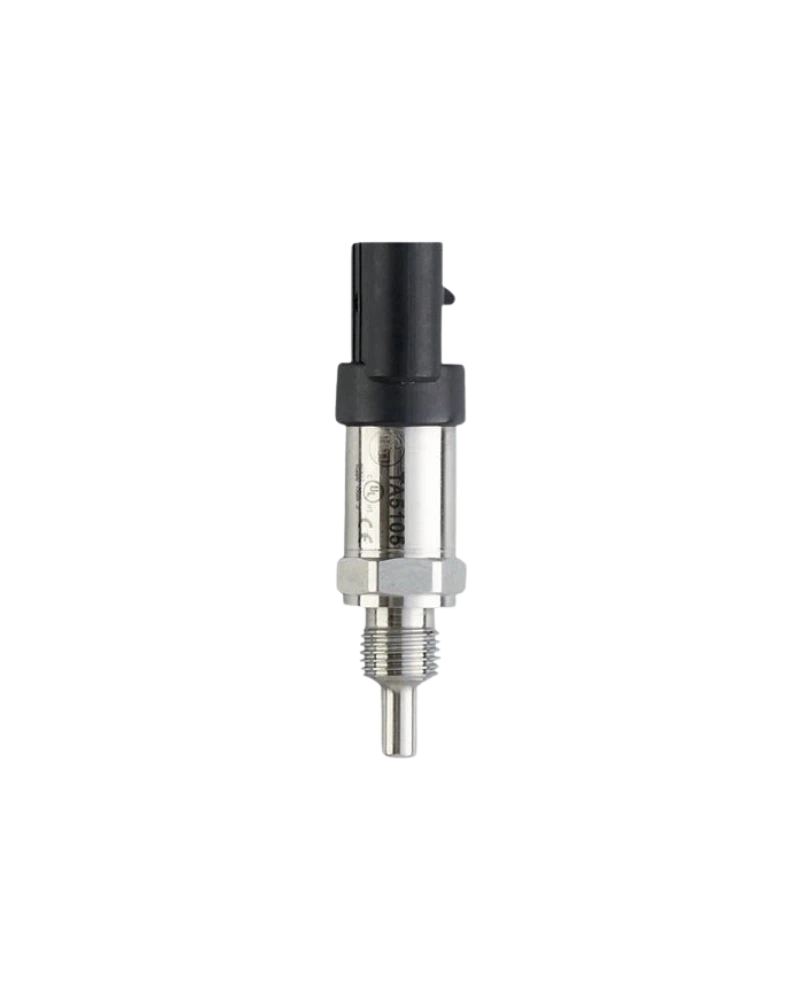

The IFM TA5105 temperature transmitter is a compact solution for reliable temperature measurement in industrial and mobile-machine applications. It uses a Pt1000 Class A sensing element and provides a 4–20 mA analogue output for connection to automation controllers. Its G1/4 external threaded process connection and 25 mm installation length allow convenient installation. The transmitter is suitable for liquids and gases and supports continuous temperature monitoring, control and equipment protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TA5105 is designed to measure process temperatures and provide a standard analogue signal for industrial automation systems. It uses a Pt1000 Class A measuring element according to DIN EN 60751. The compact transmitter construction supports installation in machinery and process equipment. Its threaded connection provides a secure mounting arrangement for compatible systems.
The TA5105 provides a -50 to 150 °C measuring range and uses a G1/4 external threaded process connection. Its 25 mm installation length is suitable for applications requiring a compact sensing arrangement. The transmitter provides a 4–20 mA analogue signal and operates from 10–30 V DC. It is suitable for liquids and gases and has a 400 bar pressure rating.
TA5105 can be used in mobile machinery, hydraulic equipment, cooling systems, heating circuits and industrial process equipment. The transmitter provides temperature feedback to PLCs and controllers. Its compact form allows integration into equipment with limited installation space. The analogue output simplifies connection with conventional automation systems. It supports process control, machine protection and continuous operating-condition monitoring.
Pt1000 Class A sensor
-50 to 150 °C measuring range
25 mm installation length
G1/4 external thread
4–20 mA analogue output
10–30 V DC supply
400 bar pressure rating
Suitable for liquids and gases
Compact construction
Industrial automation compatible
Mobile machinery
Hydraulic systems
Cooling circuits
Heating systems
Industrial process equipment
Temperature control
Machine protection
PLC monitoring
Factory automation
Condition monitoring
| Specification | Details |
|---|---|
| Product Code | TA5105 |
| Brand | IFM |
| Product Type | Temperature transmitter |
| Model | TA-025CLEM14-A-ZVG/AM |
| Measuring Element | Pt1000 |
| Accuracy Class | Class A |
| Measuring Range | -50 to 150 °C |
| Temperature Range | -58 to 302 °F |
| Process Connection | G1/4 external thread |
| Installation Length | 25 mm |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Output | Analogue |
| Output Signal | 4–20 mA |
| Supply Voltage | 10–30 V DC |
| Current Consumption | <30 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Probe Diameter | Approx. 6 mm |
| Installation | Process equipment |
| Application | Mobile/industrial machinery |
| Manufacturer | IFM electronic |
