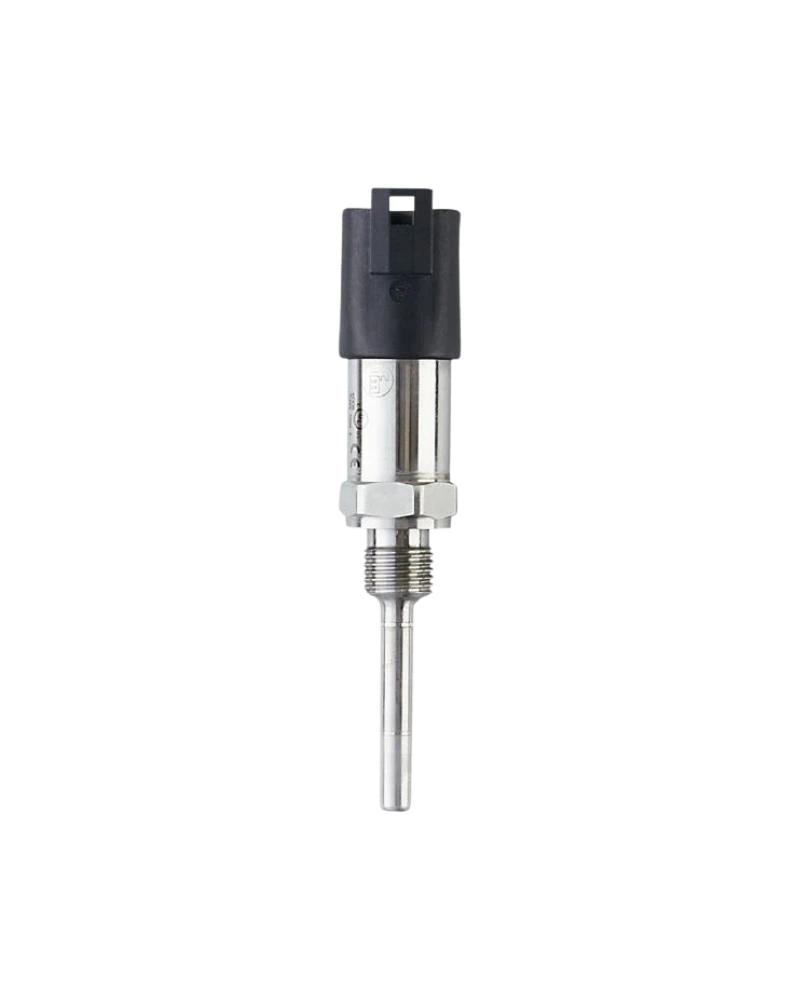

The IFM TA4115 temperature transmitter provides reliable industrial temperature measurement using a Pt1000 Class A sensing element. It features a 50 mm installation length and G1/4 external threaded process connection for practical installation in compatible equipment. The transmitter provides a 4–20 mA analogue output and operates from a 10–30 V DC supply. It is suitable for monitoring liquids and gases in mobile machinery, process equipment and industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TA4115 is a compact IFM temperature transmitter designed for accurate process temperature monitoring. Its Pt1000 Class A sensing element provides reliable resistance-based measurement. The transmitter converts the measured temperature into a standard 4–20 mA signal for automation and control equipment. Its G1/4 threaded connection supports convenient installation in compatible process systems.
TA4115 provides a measuring range of -50 to 150 °C and uses a Pt1000 element according to DIN EN 60751, Class A. The 50 mm installation length allows deeper process insertion than shorter transmitter versions. Its analogue output makes integration with PLCs and controllers straightforward. The transmitter is designed for liquids and gases and can operate at pressures up to 400 bar.
The transmitter is suitable for temperature monitoring in mobile machines, hydraulic systems, industrial machinery and process equipment. It can provide continuous temperature feedback to control systems. Its compact construction supports installation in restricted spaces while maintaining dependable measurement. The 4–20 mA output is widely compatible with industrial automation systems. It can support process regulation, machine protection and operating-condition monitoring.
Pt1000 Class A sensing element
-50 to 150 °C range
50 mm installation length
G1/4 external thread
4–20 mA output
10–30 V DC supply
Suitable for liquids and gases
400 bar pressure rating
Short-circuit protection
Overload protection
Mobile machines
Hydraulic equipment
Industrial machinery
Process equipment
Cooling systems
Heating systems
Temperature control
PLC automation
Machine protection
Condition monitoring
| Specification | Details |
|---|---|
| Product Code | TA4115 |
| Brand | IFM |
| Product Type | Temperature transmitter |
| Model | TA-050CLEM14-A-ZVG/DE |
| Measuring Element | Pt1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50 to 150 °C |
| Temperature Range | -58 to 302 °F |
| Process Connection | G1/4 external thread |
| Installation Length | 50 mm |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Output Type | Analogue |
| Output Signal | 4–20 mA |
| Supply Voltage | 10–30 V DC |
| Current Consumption | <30 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Installation | Process equipment |
| Application | Industrial/mobile machinery |
| Manufacturer | IFM electronic |
