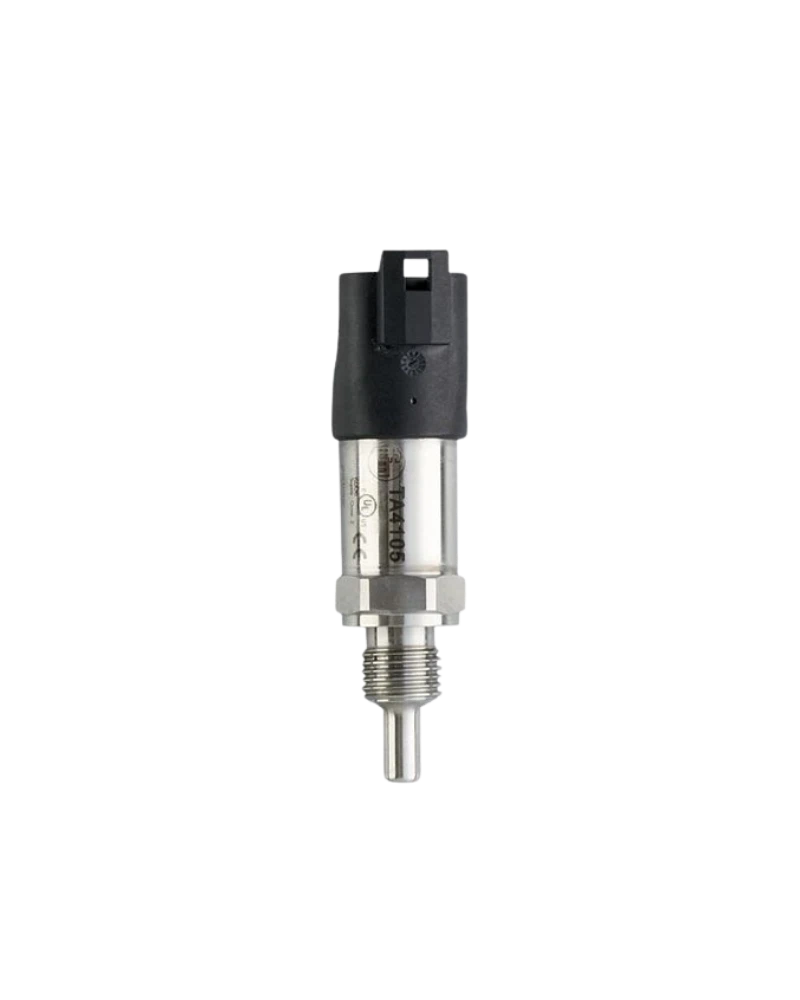

TA4105 is a compact temperature transmitter with a 25 mm probe designed for mobile machinery. It provides a 4–20 mA analogue output and operates from a 10–30 V DC supply. The G 1/4 process connection provides secure installation. A DEUTSCH connector is used for machine electrical integration. Its compact design is suitable for hydraulic systems, construction equipment and industrial machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA4105 is designed for reliable temperature measurement in mobile applications. Its 25 mm installation length supports compact machine installations. The −50…150 °C range covers many hydraulic and mechanical temperature-monitoring requirements. The 4–20 mA output integrates directly with machine controllers. Its robust construction supports continuous mobile-machine operation.
−50…150 °C
25 mm installation length
G 1/4 process connection
4–20 mA
10–30 V DC
DEUTSCH connector
Pt1000 sensing element
Stainless steel
Gold-plated contacts
1 s T05 response
3 s T09 response
IP68/IP69K
Reverse-polarity protection
Overload protection
Short-circuit protection
High vibration resistance
High shock resistance
Compact body
PLC compatible
Mobile hydraulics
Construction machinery
Agricultural machinery
Off-highway vehicles
Industrial machines
Pumps
Compressors
Engine systems
Temperature monitoring
Machine diagnostics
Equipment protection
Preventive maintenance
PLC control
Machine automation
Process monitoring
| Specification | Details |
|---|---|
| Model | TA4105 |
| Order code | TA-025CLEM14-A-ZVG/DE |
| Measuring range | −50…150 °C |
| Installation length | 25 mm |
| Process connection | G 1/4 |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | DEUTSCH |
| Sensor | Pt1000 |
| Contacts | Gold-plated |
| T05 | 1 s |
| T09 | 3 s |
| Ambient | −40…100 °C |
| Protection | IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Reverse polarity | Yes |
| Overload | Yes |
| Short circuit | Yes |
| Media | Liquids/gases |
| EMC | Industrial |
| Shock resistance | High |
| Vibration resistance | High |
| Application | Mobile machinery |
| Integration | Machine controller |
