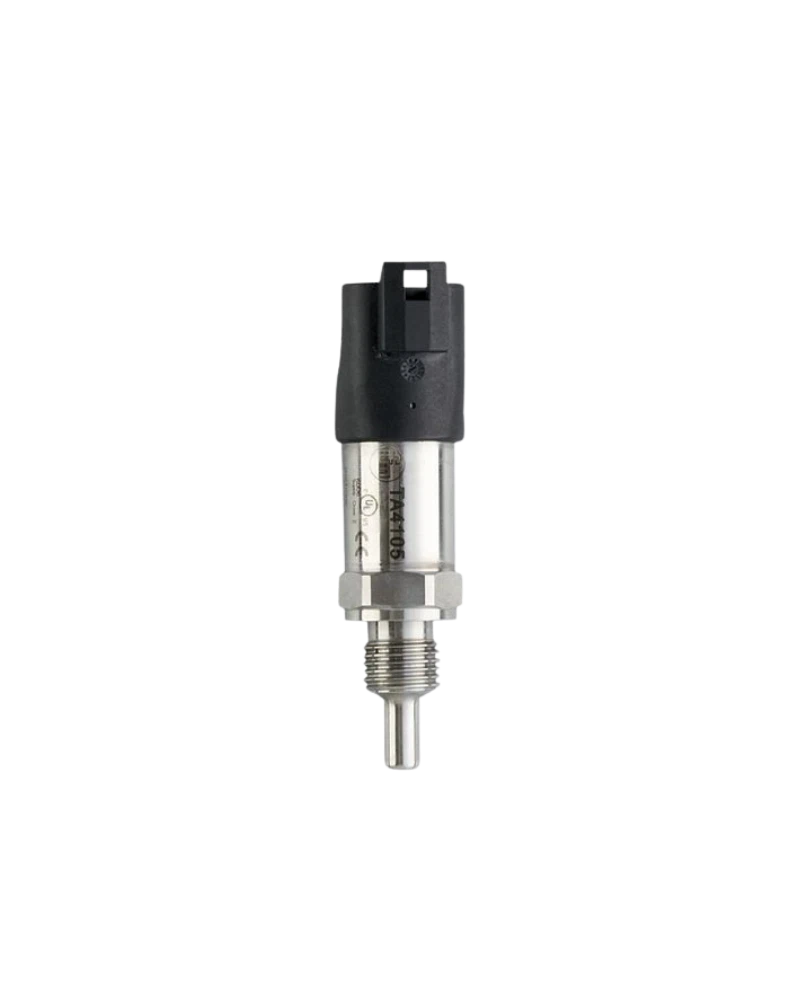

The IFM TA4105 temperature transmitter is a compact industrial sensor designed for accurate temperature measurement and analogue signal transmission. It uses a Pt1000 Class A sensing element and provides a 4–20 mA output for easy integration with control systems. The transmitter has a G1/4 external threaded process connection and a 25 mm installation length. It is suitable for liquids and gases and is designed for demanding mobile-machine and industrial temperature applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The TA4105 is a compact IFM temperature transmitter designed for temperature measurement in industrial and mobile-machine applications. It uses a Pt1000 Class A sensing element according to DIN EN 60751. The measured temperature is converted into a standard analogue output signal for connection to controllers and automation systems. Its compact threaded design allows straightforward process installation.
The transmitter measures temperatures from -50 to 150 °C and provides a 4–20 mA analogue output. Its G1/4 external thread provides a secure process connection for compatible installations. The sensor is designed for measuring liquids and gases and supports integration into industrial control systems. The Pt1000 sensing element provides dependable temperature information for automated monitoring and regulation.
TA4105 is suitable for mobile machinery, hydraulic systems, cooling circuits, heating equipment and industrial process systems. Its compact design allows installation where available space is limited. The 4–20 mA output can be connected directly to PLCs, controllers and monitoring systems. It can support temperature regulation, machine protection and condition monitoring in demanding industrial applications.
Pt1000 Class A measuring element
-50 to 150 °C measuring range
4–20 mA analogue output
G1/4 external thread
25 mm installation length
Compact transmitter design
Suitable for liquids and gases
10–30 V DC operating voltage
Short-circuit protection
Overload protection
Mobile machinery
Hydraulic systems
Cooling circuits
Heating systems
Industrial process equipment
Machine temperature monitoring
Temperature control
PLC-based automation
Equipment protection
Condition monitoring
| Specification | Details |
|---|---|
| Product Code | TA4105 |
| Brand | IFM |
| Product Type | Temperature transmitter |
| Model | TA-025CLEM14-A-ZVG/DE |
| Measuring Element | 1 x Pt1000 |
| Accuracy Class | Class A |
| Standard | DIN EN 60751 |
| Measuring Range | -50 to 150 °C |
| Temperature Range | -58 to 302 °F |
| Process Connection | G1/4 external thread |
| Installation Length | 25 mm |
| Media | Liquids and gases |
| Pressure Rating | 400 bar |
| Output | 1 analogue output |
| Output Signal | 4–20 mA |
| Supply Voltage | 10–30 V DC |
| Current Consumption | <30 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Application | Industrial/mobile machinery |
| Installation | Process connection |
| Manufacturer | IFM electronic |
