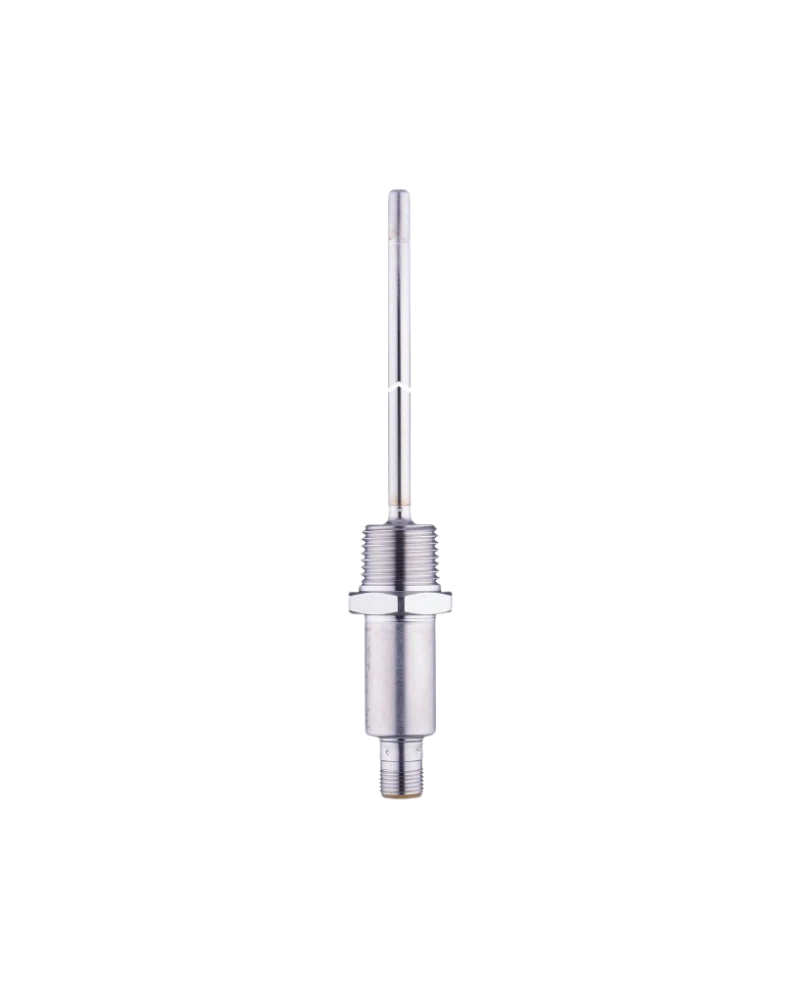

TA3633 is a 100 mm temperature transmitter designed for deeper temperature measurement in mobile and industrial machinery. It uses a 1/2-inch NPT external thread for secure process installation. The transmitter provides a 4–20 mA analogue output and operates from a 10–30 V DC supply. Its extended probe allows measurement deeper inside tanks, hydraulic systems and machinery. The robust construction supports continuous operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA3633 provides extended sensing depth compared with compact variants. The 100 mm installation length allows the sensing element to reach deeper into the process medium. Its analogue output integrates with PLC and machine-control systems. The threaded NPT connection provides secure mounting. Robust construction supports mobile and industrial applications.
100 mm installation length
1/2-inch NPT connection
Pt1000 Class A
4–20 mA
10–30 V DC
M12 connector
Gold-plated contacts
0.04 K resolution
300 bar pressure rating
Fast response
IP68/IP69K
Stainless steel
Reverse-polarity protection
Overload protection
Short-circuit protection
High shock resistance
High vibration resistance
Extended probe
PLC compatible
Hydraulic systems
Mobile machinery
Industrial tanks
Pipelines
Pumps
Compressors
Construction equipment
Agricultural machinery
Machine tools
Temperature monitoring
Process control
Equipment protection
Preventive maintenance
Machine diagnostics
PLC automation
| Specification | Details |
|---|---|
| Model | TA3633 |
| Order code | TA-100FLEN12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Installation length | 100 mm |
| Process connection | 1/2 in NPT |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | M12 |
| Contacts | Gold-plated |
| Resolution | 0.04 K |
| Pressure rating | 300 bar |
| Media | Liquids/gases |
| Response T05 | Approx. 1 s |
| Response T09 | Approx. 3 s |
| Protection | IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Reverse polarity | Yes |
| Overload | Yes |
| Short circuit | Yes |
| Shock resistance | High |
| Vibration resistance | High |
| Mounting | NPT threaded |
| Application | Mobile/industrial |
| Integration | PLC/controller |
