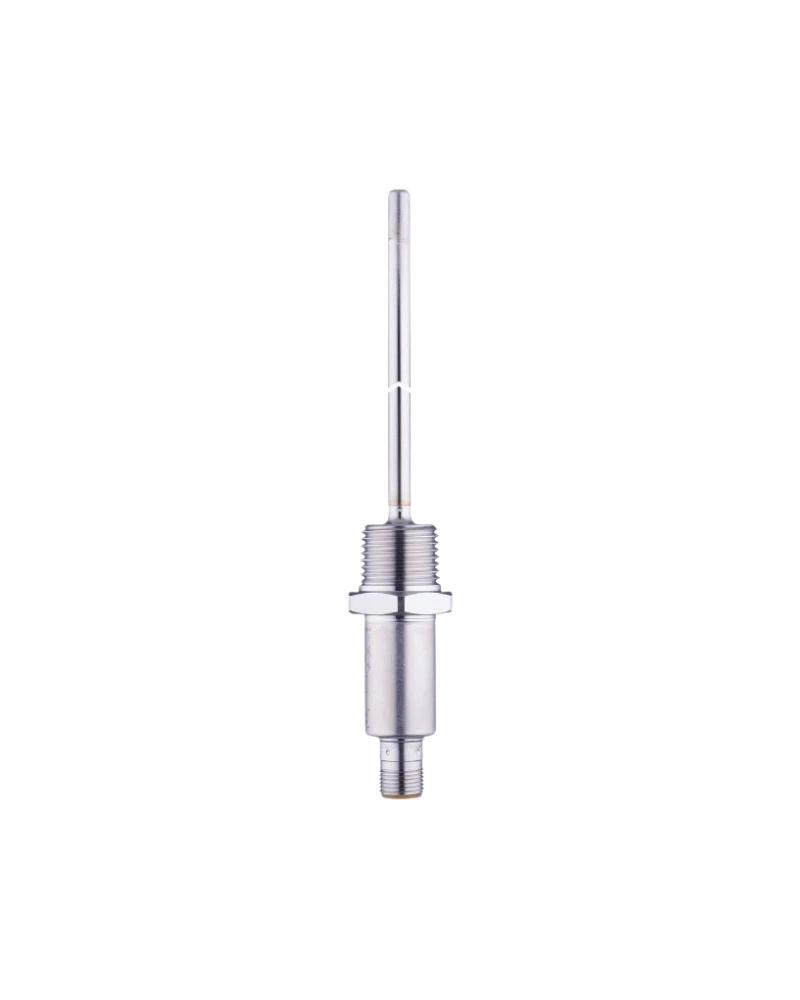

TA3613 is a 50 mm temperature transmitter designed for mobile-machine temperature monitoring. It uses a 1/2-inch NPT external threaded process connection and provides a 4–20 mA analogue output. The transmitter has a 0…300 °F scaled range and uses a Pt1000 Class A measuring element. Its 10–30 V DC supply and M12 connector simplify machine integration. The compact stainless-steel design supports demanding mobile applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA3613 is designed for temperature measurement in industrial and mobile equipment. Its 50 mm installation length provides practical sensing depth. The 4–20 mA signal is compatible with standard machine controllers. The Pt1000 Class A element provides repeatable temperature measurement. Its NPT connection provides secure installation in compatible equipment.
Pt1000 Class A
50 mm installation length
0…300 °F range
−18…149 °C equivalent range
1/2-inch NPT connection
4–20 mA output
10–30 V DC
M12 connector
Gold-plated contacts
0.04 K resolution
300 bar pressure rating
Fast response
IP68/IP69K
Reverse-polarity protection
Short-circuit protection
Overload protection
Stainless steel
High vibration resistance
High shock resistance
Mobile machinery
Hydraulic systems
Construction equipment
Agricultural equipment
Industrial machines
Pumps
Compressors
Engine systems
Temperature monitoring
Machine control
PLC systems
Equipment protection
Preventive maintenance
Machine diagnostics
Industrial automation
| Specification | Details |
|---|---|
| Model | TA3613 |
| Order code | TA-050FLEN12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Installation length | 50 mm |
| Probe length | 41.99 mm |
| Process connection | 1/2 in NPT external |
| Measuring range | −18…149 °C |
| Factory range | 0…300 °F |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | M12 |
| Contacts | Gold-plated |
| Resolution | 0.04 K |
| Pressure rating | 300 bar |
| Media | Liquids/gases |
| Max load | 720 Ω at 24 V |
| Current consumption | <30 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Short circuit | Yes |
| Overload | Yes |
| Housing | Stainless steel |
| Protection | IP68/IP69K |
| Application | Mobile machinery |
| Integration | PLC/controller |
