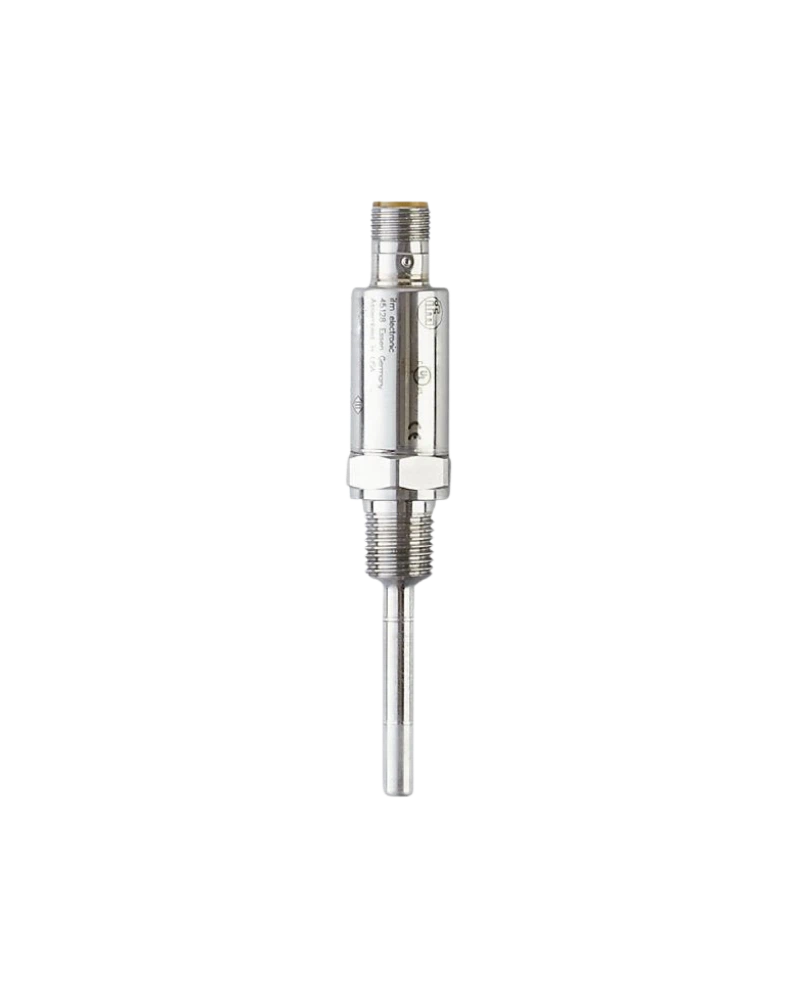

TA3605 is a compact industrial temperature transmitter designed for mobile machinery and demanding automation applications. Its 25 mm installation length provides a compact measurement point. The transmitter provides a 4–20 mA analogue signal and uses a threaded process connection. Its 10–30 V DC supply supports mobile control architectures. Stainless-steel construction and electrical protection provide reliable operation in harsh environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA3605 continuously monitors temperature in machinery and process equipment. Its compact design allows installation in restricted spaces. The 4–20 mA output can be connected to machine controllers and PLC systems. The transmitter is designed for liquid and gaseous media. High environmental protection supports outdoor and mobile equipment.
25 mm installation length
Pt1000 Class A
−50…150 °C class range
4–20 mA output
10–30 V DC
M12 connection
Threaded process connection
Stainless steel
Gold-plated contacts
0.04 K resolution
Fast response
IP68/IP69K
Reverse-polarity protection
Overload protection
Short-circuit protection
High shock resistance
High vibration resistance
Compact body
PLC compatible
Mobile hydraulics
Construction machinery
Agricultural equipment
Industrial machinery
Pumps
Compressors
Hydraulic power units
Engine monitoring
Machine tools
Temperature control
Machine diagnostics
Preventive maintenance
Equipment protection
PLC automation
Process monitoring
| Specification | Details |
|---|---|
| Model | TA3605 |
| Order code | TA-025C5EN14-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Installation length | 25 mm |
| Process connection | Threaded |
| Measuring range | −50…150 °C class |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | M12 |
| Contacts | Gold-plated |
| Resolution | 0.04 K |
| Response T05 | Approx. 1 s |
| Response T09 | Approx. 3 s |
| Protection | IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Reverse polarity | Yes |
| Overload | Yes |
| Short circuit | Yes |
| Media | Liquids/gases |
| Mounting | Threaded |
| Shock resistance | High |
| Vibration resistance | High |
| Application | Mobile machinery |
| Integration | PLC/controller |
