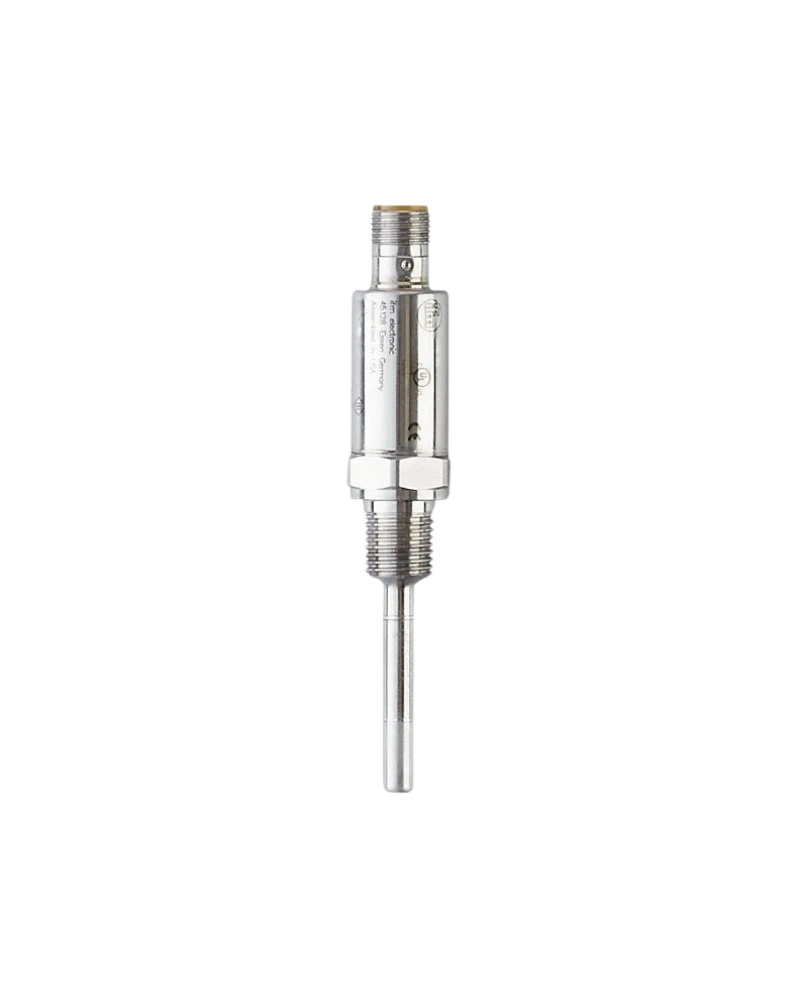

TA3603 is a compact temperature transmitter designed for mobile machinery and industrial temperature measurement. Its 25 mm installation length provides a short sensing depth for compact equipment. The transmitter uses a 1/2-inch NPT external threaded connection and provides a 4–20 mA output. It operates from a 10–30 V DC supply and uses an M12 connection. The robust stainless-steel design supports demanding machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA3603 provides reliable temperature monitoring in machinery where installation space is limited. The compact probe can be installed in hydraulic and mechanical systems. Its analogue 4–20 mA output is compatible with machine controllers. The NPT process connection supports secure threaded installation. Protective features support reliable operation under vibration and temperature variation.
25 mm installation length
1/2-inch NPT connection
−18…150 °C class range
Pt1000 Class A
4–20 mA
10–30 V DC
M12 connector
Gold-plated contacts
0.04 K resolution
300 bar pressure resistance
Fast response
IP68/IP69K
Reverse-polarity protection
Overload protection
Short-circuit protection
Stainless steel
High shock resistance
High vibration resistance
Compact housing
Mobile machinery
Hydraulic equipment
Construction machinery
Agricultural machinery
Industrial machines
Pumps
Compressors
Machine tools
Engine systems
Temperature alarms
PLC control
Machine diagnostics
Equipment protection
Preventive maintenance
Industrial automation
| Specification | Details |
|---|---|
| Model | TA3603 |
| Order code | TA-025F3EN14-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Installation length | 25 mm |
| Process connection | 1/2 in NPT |
| Measuring range | Model-dependent |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | M12 |
| Contacts | Gold-plated |
| Resolution | 0.04 K |
| Pressure resistance | 300 bar |
| Response | Approx. 1/3 s |
| Protection | IP68/IP69K |
| Reverse polarity | Yes |
| Overload | Yes |
| Short circuit | Yes |
| Housing | Stainless steel |
| Probe | Stainless steel |
| Media | Liquids/gases |
| Mounting | Threaded |
| Shock resistance | High |
| Vibration resistance | High |
| Application | Mobile machinery |
| Integration | PLC/controller |
