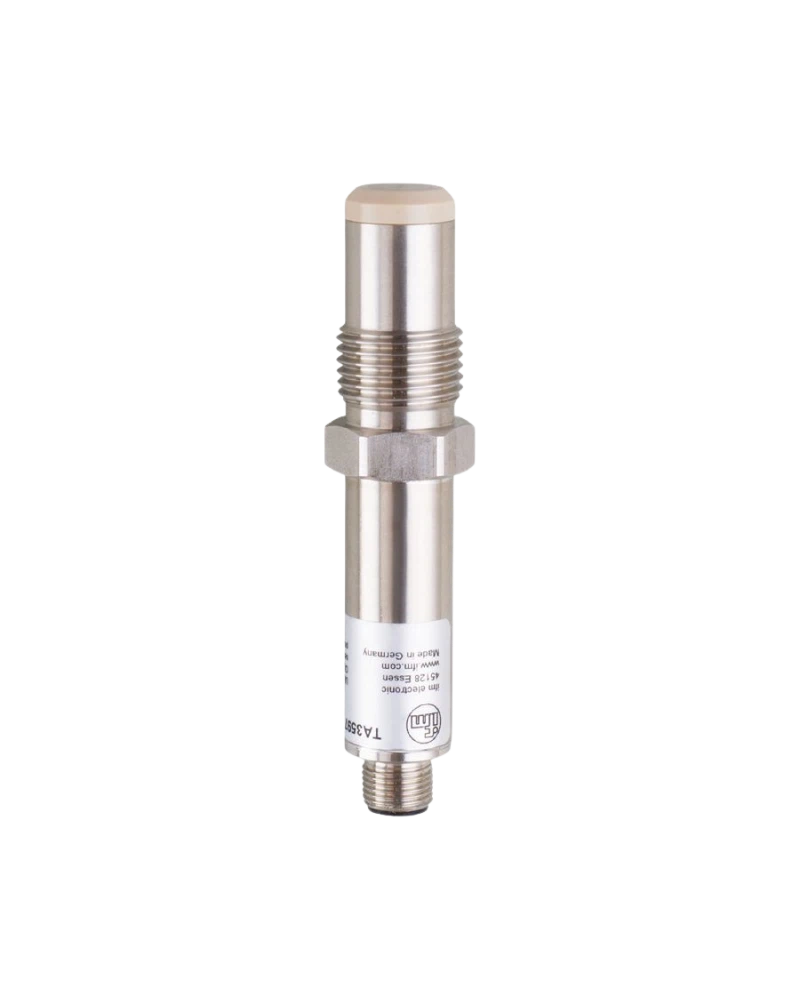

TA3597 is a flush-mount temperature transmitter designed for hygienic temperature measurement in food and beverage applications. Its flush process connection minimizes intrusion into the process medium. The stainless-steel 316L and PEEK construction supports hygienic installation and cleaning. An M12 connector provides reliable electrical connection. The transmitter is designed for demanding sanitary process environments with high ingress protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA3597 provides temperature measurement using a compact flush-mounted design. Its G 1/2 external thread with sealing cone allows installation into compatible hygienic adapters. The flush construction is suitable for applications where a conventional protruding probe is undesirable. The stainless-steel wetted construction provides good durability. IP69K protection supports demanding cleaning conditions.
The flush sensing arrangement supports hygienic process installation. Wetted materials include stainless steel 316L and PEEK. The surface characteristics are designed for hygienic applications. The G 1/2 sealing-cone connection provides secure mounting. High ingress protection supports washdown environments.
Flush temperature measurement
G 1/2 external thread
Sealing cone
Stainless steel 316L
PEEK wetted material
M12 A-coded connector
Gold-plated contacts
Cylindrical housing
IP69K protection
Compact flush design
Hygienic construction
Food-industry suitability
Washdown resistance
Reliable electrical connection
High mechanical durability
Food processing
Dairy processing
Beverage production
Breweries
Sanitary pipelines
Process tanks
Filling equipment
Packaging machinery
CIP systems
Hygienic machinery
Temperature monitoring
Process control
Quality assurance
Production automation
Sanitary process systems
| Specification | Details |
|---|---|
| Model | TA3597 |
| Order code | TA-000KLER12-/US |
| Product type | Flush temperature transmitter |
| Installation type | Flush mount |
| Process connection | G 1/2 external |
| Connection style | Sealing cone |
| Housing | Cylindrical |
| Dimensions | Ø18 × 102 mm |
| Wetted material | 316L / PEEK |
| Housing material | Stainless steel |
| Surface finish | Ra <0.8 µm |
| Electrical connector | M12 |
| Connector coding | A-coded |
| Contacts | Gold-plated |
| Protection | IP69K |
| Tightening torque | 10 Nm |
| Application | Hygienic |
| Media | Liquids/gases |
| Installation | Adapter-based |
| Sensor type | Temperature |
| Construction | Compact |
| Cleaning suitability | Washdown |
| Industry | Food/beverage |
| Maintenance | Low-maintenance |
| Process compatibility | Hygienic systems |
