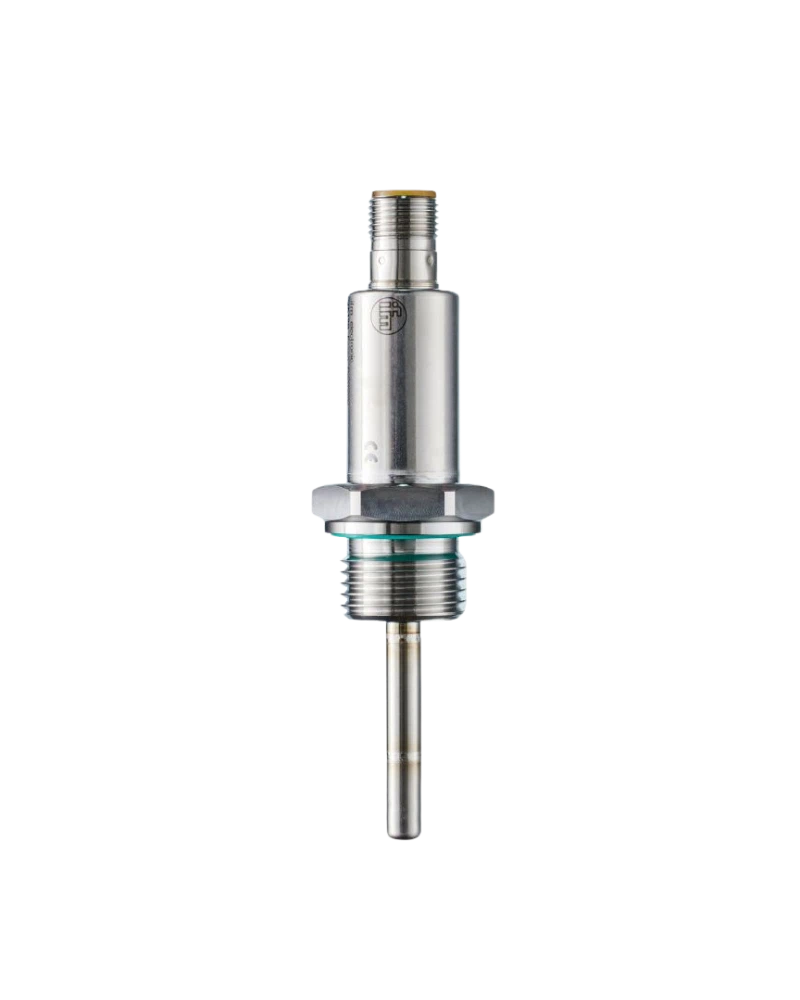

TA3435 is a long-probe temperature transmitter designed for reliable industrial temperature measurement. Its 100 mm installation length allows the sensing element to reach deeper into tanks, pipes and machine components. The transmitter uses a Pt1000 Class A sensing element and provides a 4–20 mA output. A G 1/2 external thread provides secure process installation. Its robust stainless-steel construction supports demanding industrial and mobile-machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA3435 provides accurate temperature measurement across a −50…150 °C range. The Pt1000 Class A element provides stable and repeatable temperature sensing. The 100 mm installation length is useful where a deeper measurement point is required. Its 4–20 mA output integrates easily with PLCs and machine controllers. The transmitter is designed for continuous operation in demanding industrial environments.
TA3435 continuously detects process temperature changes. The sensing element produces a resistance value corresponding to the measured temperature. Internal electronics convert this information into a standard current output. The output can be used for temperature regulation and alarms. Continuous measurement supports equipment protection and preventive maintenance.
The stainless-steel construction provides mechanical durability. The G 1/2 connection allows secure threaded installation. The long probe provides greater insertion depth than compact variants. High pressure resistance supports demanding applications. The transmitter is suitable for liquids and gases.
Pt1000 Class A
−50…150 °C range
100 mm installation length
G 1/2 external thread
4–20 mA output
10–30 V DC
M12 connector
Gold-plated contacts
0.04 K resolution
400 bar pressure resistance
Fast response
IP68/IP69K
Reverse-polarity protection
Overload protection
Short-circuit protection
Stainless-steel housing
High vibration resistance
High shock resistance
PLC compatible
Industrial automation
Hydraulic machinery
Process equipment
Industrial tanks
Pipelines
Pumps
Compressors
Mobile machinery
Construction equipment
Agricultural machinery
Machine tools
Temperature control
Equipment protection
Preventive maintenance
PLC systems
Machine diagnostics
| Specification | Details |
|---|---|
| Model | TA3435 |
| Order code | TA-100C5ER12-A-ZVG/US |
| Product type | Temperature transmitter |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Installation length | 100 mm |
| Process connection | G 1/2 |
| Probe | Stainless-steel |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | M12 |
| Contacts | Gold-plated |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Media | Liquids/gases |
| Pressure resistance | 400 bar |
| T05 | Approx. 1 s |
| T09 | Approx. 3 s |
| Protection | IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | Stainless steel |
| Electrical protection | Reverse polarity |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Application | Mobile/industrial |
