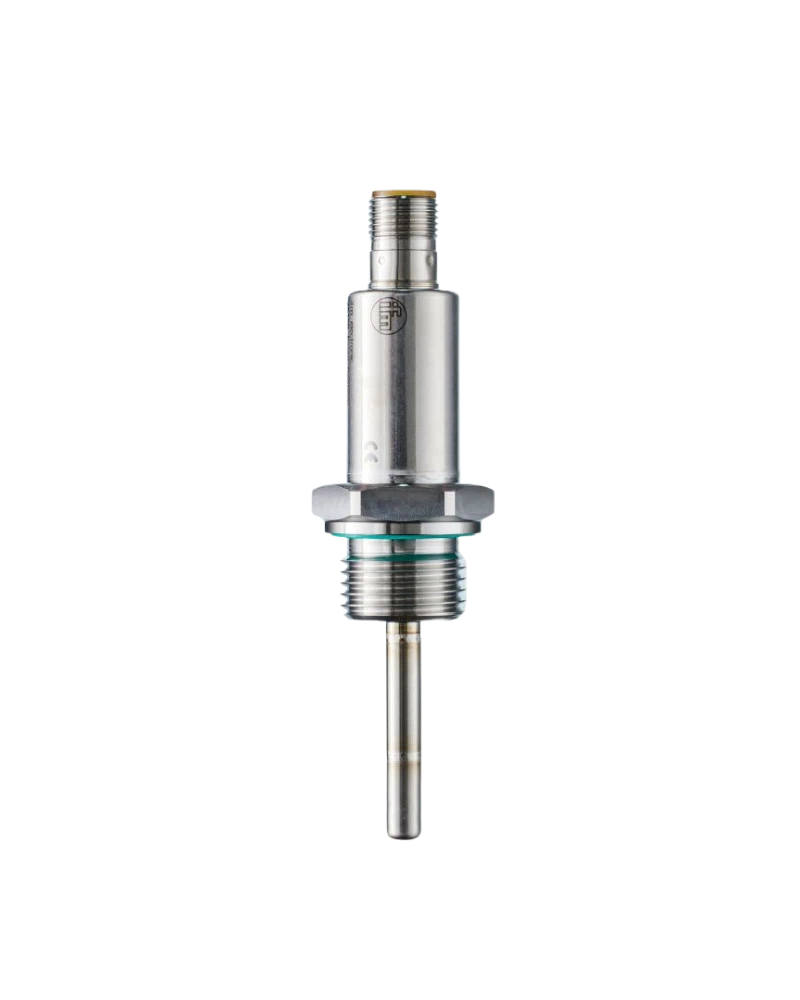

TA3415 is a compact industrial temperature transmitter designed for reliable temperature measurement in machinery and mobile applications. It uses a Pt1000 Class A sensing element for accurate and repeatable temperature measurement. The transmitter provides a 4–20 mA analogue output for direct integration with controllers and PLC systems. Its 50 mm installation length provides useful sensing depth for industrial equipment. The stainless-steel construction and high pressure resistance make it suitable for demanding operating environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA3415 provides continuous temperature monitoring across a −50…150 °C measuring range. The Pt1000 Class A element is designed according to DIN EN 60751 and provides dependable temperature measurement. A G 1/2 external thread enables secure process installation. The 4–20 mA output provides compatibility with standard industrial automation systems. Its robust construction supports mobile machinery, hydraulic systems and industrial equipment.
The sensor detects changes in process temperature continuously. The Pt1000 element converts temperature changes into resistance variations. Integrated electronics process the measurement and generate the analogue output. The 4–20 mA signal can be monitored by PLC, controller or data-acquisition equipment. This provides reliable temperature information for process control and equipment protection.
TA3415 uses a robust stainless-steel housing designed for demanding environments. The G 1/2 process connection provides secure mechanical installation. High pressure resistance allows use in hydraulic and industrial systems. The M12 connector supports reliable electrical integration. Protection features help maintain reliable operation during continuous machine use.
Pt1000 Class A sensing element
−50…150 °C measuring range
50 mm installation length
G 1/2 external thread
4–20 mA analogue output
10–30 V DC supply
M12 electrical connection
Gold-plated contacts
0.04 K analogue resolution
400 bar pressure resistance
Fast response
IP68/IP69K protection
Reverse-polarity protection
Overload protection
Short-circuit protection
Stainless-steel construction
High vibration resistance
High shock resistance
PLC compatible
Industrial automation integration
Mobile machinery
Hydraulic systems
Construction equipment
Agricultural machinery
Industrial machinery
Pumps
Compressors
Machine tools
Process equipment
Temperature monitoring
Equipment protection
Preventive maintenance
PLC automation
Machine diagnostics
Process control
| Specification | Details |
|---|---|
| Model | TA3415 |
| Order code | TA-050C5ER12-A-ZVG/US |
| Product type | Temperature transmitter |
| Sensor element | Pt1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | −50…150 °C |
| Installation length | 50 mm |
| Probe length | 36 mm |
| Process connection | G 1/2 external thread |
| Output signal | 4–20 mA |
| Output type | Analogue |
| Supply voltage | 10–30 V DC |
| Electrical connection | M12 |
| Contacts | Gold-plated |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Media | Liquids and gases |
| Pressure resistance | 400 bar |
| Response T05 | Approx. 1 s |
| Response T09 | Approx. 3 s |
| Protection | IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | Stainless steel |
| Protection functions | Reverse polarity/overload/short circuit |
| Application | Mobile and industrial machinery |
