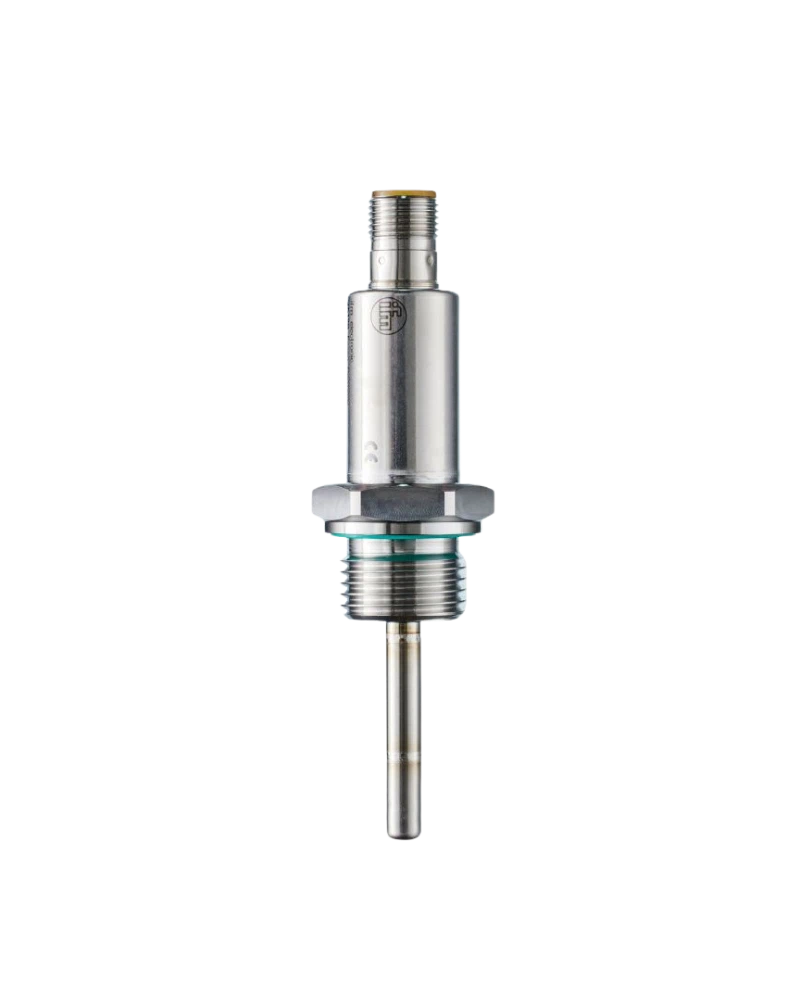

TA3405 is a robust temperature transmitter designed specifically for demanding mobile-machine and industrial applications. It has a 30 mm installation length and a G 1/2 external process connection. The transmitter provides a 4–20 mA output and operates from a 10–30 V DC supply. Its Pt1000 Class A element provides accurate temperature measurement across −50…150 °C. The stainless-steel housing, high pressure resistance, IP68/IP69K protection and strong shock and vibration resistance make it suitable for harsh machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA3405 is designed for reliable temperature measurement on mobile working machines and demanding industrial equipment. Its Pt1000 Class A element provides accurate measurement across the specified temperature range. The 30 mm insertion length provides a compact sensing point for machine installations. The 4–20 mA output provides straightforward integration with machine controllers. Its robust mechanical design supports high-pressure, vibration-intensive and outdoor environments.
Measurement Performance
The transmitter measures temperature through a Pt1000 Class A sensing element. Internal electronics process the resistance signal and generate a proportional 4–20 mA output. The analogue resolution is specified at 0.04 K. The T05/T09 response times are approximately 1 and 3 seconds. This fast response supports dynamic mobile-machine temperature monitoring.
Rugged Construction
TA3405 features a stainless-steel 316L housing and wetted construction. The G 1/2 external thread provides secure process installation. The device is rated for pressure resistance up to 400 bar. IP68 and IP69K protection supports demanding environmental conditions. Shock resistance up to 50 g and vibration resistance up to 20 g make it suitable for mobile machinery.
Electrical Integration
The transmitter operates from 10–30 V DC. Its M12 connector uses gold-plated contacts for reliable electrical connection. The analogue output delivers 4–20 mA with a maximum load dependent on supply voltage. Reverse-polarity, short-circuit and overload protection improve system reliability. The transmitter can be integrated directly into PLC and mobile-machine controller architectures.
Pt1000 Class A element
−50…150 °C measuring range
30 mm installation length
G 1/2 external thread
6 mm probe diameter
4–20 mA analogue output
10–30 V DC supply
M12 electrical connection
Gold-plated contacts
0.04 K analogue resolution
±0.3 K + ±0.1% MS accuracy
T05 approximately 1 s
T09 approximately 3 s
400 bar pressure resistance
IP68 protection
IP69K protection
50 g shock resistance
20 g vibration resistance
Reverse-polarity protection
Short-circuit protection
Overload protection
Stainless steel 316L
PEI/FKM construction materials
Mobile-machine suitability
Mobile working machines
Construction equipment
Agricultural machinery
Off-highway vehicles
Hydraulic systems
Hydraulic power units
Engine temperature monitoring
Transmission systems
Industrial machinery
Pumps
Compressors
Machine temperature control
Equipment protection
Preventive maintenance
Machine diagnostics
PLC control systems
Mobile automation
Outdoor machinery
Heavy-duty equipment
Process machinery
| Specification | Details |
|---|---|
| Model | TA3405 |
| Order code | TA-030C5ER12-A-ZVG/US |
| Product type | Temperature transmitter |
| Measuring element | 1 × Pt1000 Class A |
| Standard | DIN EN 60751 |
| Measuring range | −50…150 °C |
| Installation length | 30 mm |
| Probe length | 16 mm rod section |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external thread |
| Output signal | 4–20 mA |
| Analogue outputs | 1 |
| Supply voltage | 10–30 V DC |
| Maximum load | (Ub − 8.5 V) / 21.5 mA |
| Load at 24 V | 720 Ω |
| Analogue resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Temperature coefficient | 0.1% span / 10 K |
| Response T05 | 1 s |
| Response T09 | 3 s |
| Ambient temperature | −40…100 °C |
| Storage temperature | −40…100 °C |
| Protection rating | IP68 / IP69K |
| Shock resistance | 50 g / 11 ms |
| Vibration resistance | 20 g / 10…2000 Hz |
| Housing material | Stainless steel 316L |
| Electrical connection | M12, A-coded |
| Contact material | Gold-plated |
| Wetted material | Stainless steel 316L + FKM |
| Pressure resistance | 400 bar |
| Weight | Approx. 122.7 g |
| Housing dimensions | Ø18.8 mm × approx. 85.3 mm |
| Electrical protection | Reverse polarity / overload / short circuit |
| EMC | DIN EN 61000-6-2 / DIN EN 61000-6-3 |
