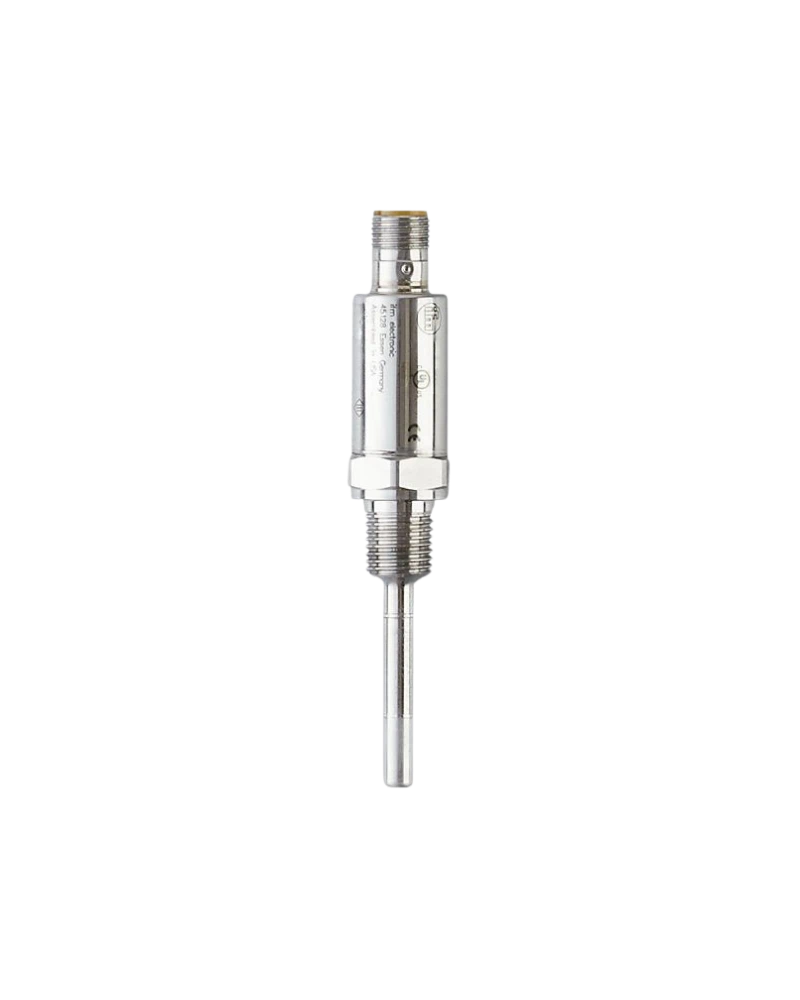

TA3317 is a 50 mm temperature transmitter designed for industrial temperature measurement with a 1/4-inch NPT process connection. It provides a 4–20 mA output and a factory range of 0…100 °C. The transmitter uses a 10–30 V DC supply and M12 electrical connection. Its compact design makes it suitable for machinery and process equipment. The robust construction supports reliable operation in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA3317 provides a practical 50 mm sensing length for industrial applications. Its 1/4-inch NPT connection enables threaded installation in compatible equipment. The 4–20 mA output provides standard automation-system integration. The 0…100 °C factory setting is suitable for many moderate-temperature processes. Its compact construction supports installation in restricted machine spaces.
Temperature Measurement
The sensing element continuously detects process temperature. Internal electronics convert the measurement into a proportional 4–20 mA signal. The output can be used for PLC monitoring and temperature control. The transmitter can support alarm and protection functions. Its compact probe supports fast response.
Industrial Reliability
The NPT process connection provides secure mounting. Stainless-steel wetted materials provide mechanical durability. The M12 connector supports reliable electrical installation. Protection functions help protect against electrical faults. The device is suitable for continuous industrial operation.
50 mm installation length
0…100 °C factory range
1/4-inch NPT connection
4–20 mA output
10–30 V DC
M12 connector
Pt1000 sensing platform
Stainless steel
Fast response
IP68/IP69K
Reverse-polarity protection
Overload protection
Short-circuit protection
Shock resistance
Vibration resistance
Compact construction
PLC integration
Temperature alarms
Equipment protection
Industrial automation
Industrial machinery
Hydraulic systems
Pumps
Compressors
Process piping
Machine tools
Mobile equipment
OEM machinery
Temperature monitoring
PLC systems
SCADA
Preventive maintenance
Equipment protection
Process control
Industrial automation
| Specification | Details |
|---|---|
| Model | TA3317 |
| Order code | TA-050CLEN14-A-ZVG/US |
| Product type | Temperature transmitter |
| Factory range | 0…100 °C |
| Installation length | 50 mm |
| Process connection | 1/4 in NPT |
| Sensor | Pt1000 platform |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | M12 |
| Output type | Analogue |
| Scaling | Factory/application dependent |
| Response | Fast |
| T05 | Approx. 1 s |
| T09 | Approx. 3 s |
| Protection | IP68/IP69K |
| Reverse polarity | Yes |
| Overload | Yes |
| Short circuit | Yes |
| Wetted material | Stainless steel |
| Ambient | −40…100 °C class |
| Shock resistance | High |
| Vibration resistance | High |
| EMC | Industrial |
| Mounting | NPT threaded |
| Application | Industrial/mobile |
