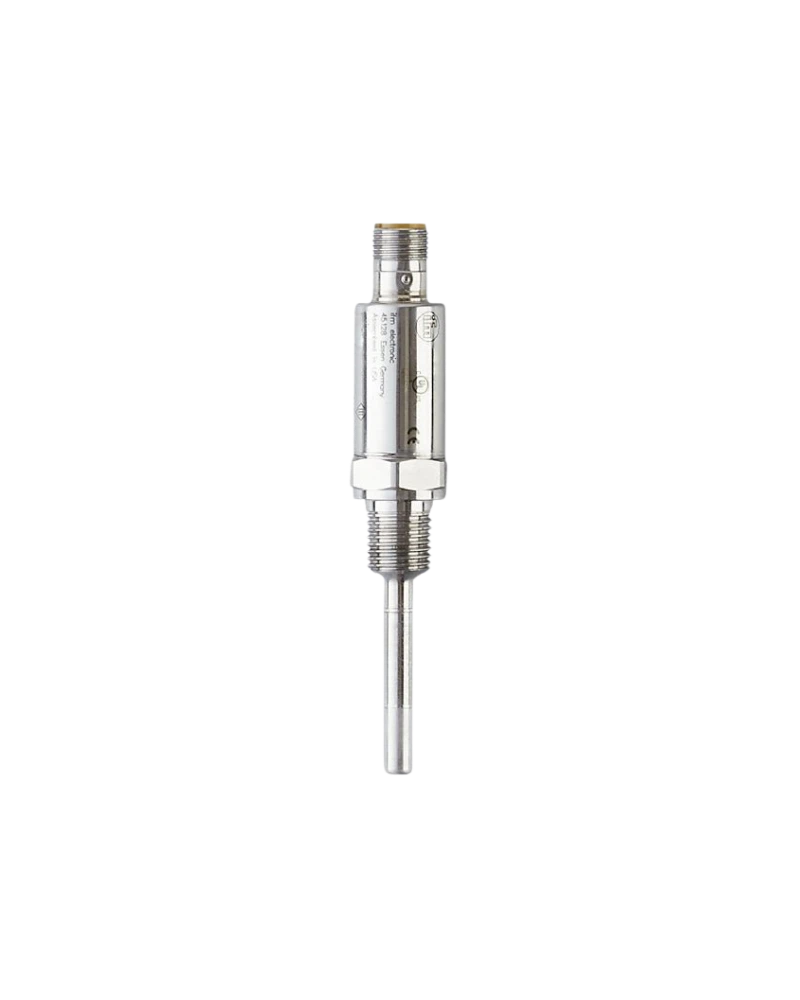

TA3313 is a compact temperature transmitter with a 50 mm installation length and 1/4-inch NPT process connection. It is designed for industrial and mobile-machine temperature measurement. The transmitter provides a 4–20 mA output and operates from a 10–30 V DC supply. Its M12 connector supports reliable electrical integration. The 0…300 °F factory configuration makes it suitable for applications using Fahrenheit-based temperature monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA3313 is designed for industrial applications requiring a 1/4-inch NPT connection. Its 50 mm probe provides useful sensing depth for machinery and process systems. The transmitter provides a standard 4–20 mA signal for controllers. The Fahrenheit-oriented factory setting simplifies integration into US-oriented applications. Its robust construction supports continuous operation.
Temperature Monitoring
TA3313 measures process temperature and converts it into an analogue current signal. The 4–20 mA output can be connected to PLC and machine controllers. The signal can be used for temperature alarms and process control. Its 50 mm installation length provides practical sensing depth. Continuous measurement supports equipment protection.
Industrial Design
The transmitter is designed for industrial environments. Its NPT process connection supports secure threaded mounting. Stainless-steel wetted construction provides durability. The M12 connector simplifies installation and maintenance. Electrical protection improves reliability in machine applications.
50 mm installation length
0…300 °F factory setting
−50…150 °C family capability
1/4-inch NPT connection
4–20 mA output
10–30 V DC supply
M12 connector
Pt1000 temperature sensing
Stainless-steel wetted material
Fast response
IP68/IP69K
Reverse-polarity protection
Overload protection
Short-circuit protection
Vibration resistance
Shock resistance
PLC integration
Machine-control compatibility
Temperature alarms
Industrial construction
Mobile machinery
Industrial equipment
Hydraulic systems
Pumps
Compressors
Machine tools
Process piping
Construction equipment
Agricultural machinery
Temperature monitoring
PLC systems
Equipment protection
Preventive maintenance
Machine diagnostics
Industrial automation
| Specification | Details |
|---|---|
| Model | TA3313 |
| Order code | TA-050FLEN14-A-ZVG/US |
| Product type | Temperature transmitter |
| Factory setting | 0…300 °F |
| Equivalent | Approximately −18…149 °C |
| Installation length | 50 mm |
| Process connection | 1/4 in NPT |
| Sensor | Pt1000 platform |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | M12 |
| Output scaling | Factory/application dependent |
| Response T05 | Approx. 1 s |
| Response T09 | Approx. 3 s |
| Protection | IP68/IP69K |
| Reverse polarity | Yes |
| Overload | Yes |
| Short circuit | Yes |
| Wetted material | Stainless steel |
| Ambient | −40…100 °C class |
| Shock resistance | High |
| Vibration resistance | High |
| EMC | Industrial |
| Mounting | NPT threaded |
| Application | Industrial/mobile |
