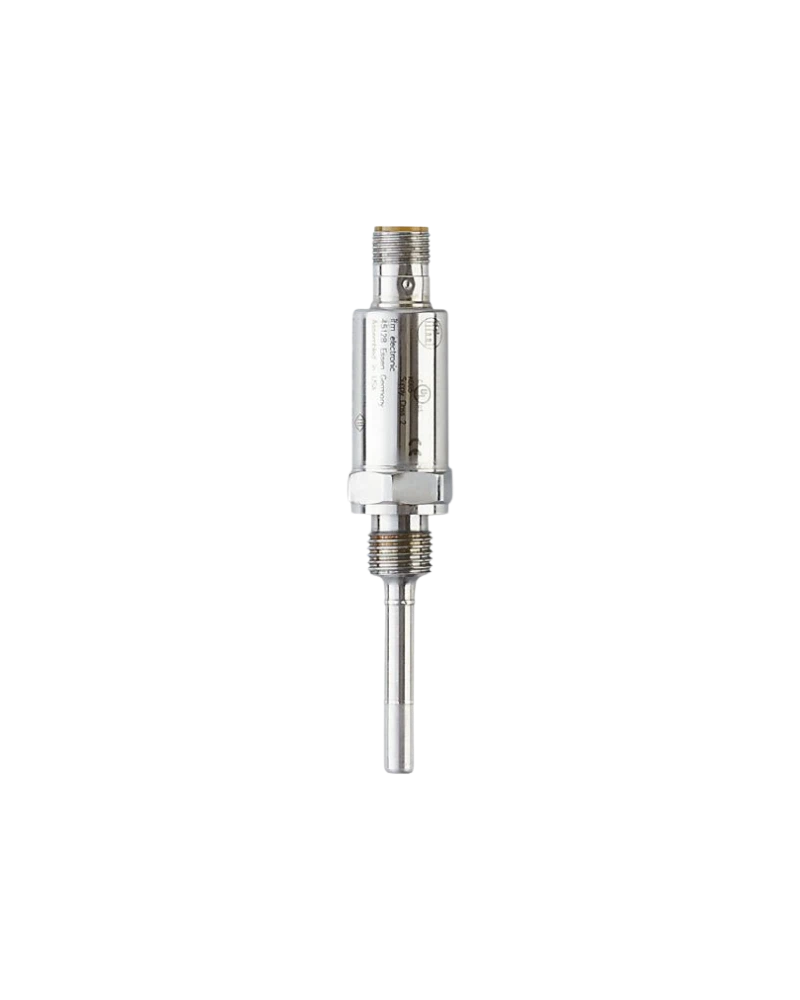

TA3115 is a 50 mm temperature transmitter designed for mobile machinery and industrial equipment. It provides a −50…150 °C measuring range and a scalable 4–20 mA output. The G 1/4 process connection provides secure machine installation. Its 10–30 V DC supply and M12 connector support integration into mobile control systems. The robust construction provides reliable temperature monitoring in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA3115 provides a 50 mm sensing length for applications requiring more insertion depth than the compact TA3105. The transmitter is suitable for hydraulic systems, mobile machinery and industrial equipment. Its analogue output provides direct communication with machine controllers. The M12 connector simplifies electrical installation. Robust protection features support continuous operation.
Temperature Monitoring
The sensor continuously measures temperature in the process medium. The analogue signal is transmitted to a controller for monitoring and control. Temperature limits can be used to trigger alarms or protective functions. Fast response supports dynamic machine conditions. This makes the sensor suitable for preventive maintenance strategies.
Rugged Design
TA3115 is designed for mobile-machine applications. Stainless-steel wetted materials provide mechanical durability. The transmitter supports operation across a wide ambient temperature range. Protection against polarity reversal and overload improves system reliability. The M12 connector supports secure electrical integration.
50 mm installation length
−50…150 °C range
G 1/4 process connection
4–20 mA output
10–30 V DC supply
M12 connector
Pt1000 sensing platform
Stainless-steel wetted material
Gold-plated contacts
T05 1 s class
T09 3 s class
IP68/IP69K
Reverse-polarity protection
Overload protection
Short-circuit protection
Vibration resistance
Shock resistance
Mobile-machine design
PLC compatible
Fast response
Mobile hydraulics
Construction machinery
Agricultural equipment
Off-highway vehicles
Industrial machinery
Hydraulic power units
Pumps
Compressors
Engine monitoring
Temperature alarms
Machine control
Preventive maintenance
Equipment protection
PLC systems
Mobile automation
| Specification | Details |
|---|---|
| Model | TA3115 |
| Order code | TA-050CLEM14-A-ZVG/US |
| Product type | Mobile-machine temperature transmitter |
| Measuring range | −50…150 °C |
| Installation length | 50 mm |
| Process connection | G 1/4 |
| Sensor | Pt1000 platform |
| Output | 4–20 mA |
| Supply | 10–30 V DC |
| Connector | M12 |
| Output scaling | Configurable |
| T05 | Approx. 1 s |
| T09 | Approx. 3 s |
| Protection | IP68/IP69K |
| Reverse polarity | Yes |
| Overload protection | Yes |
| Short circuit | Yes |
| Wetted material | 316L stainless steel |
| Ambient | −40…100 °C family |
| Shock resistance | Industrial/mobile grade |
| Vibration resistance | Industrial/mobile grade |
| EMC | DIN EN 61000-6-2 |
| EMC emission | DIN EN 61000-6-3 |
| Mounting | G 1/4 threaded |
| Application | Mobile machinery |
