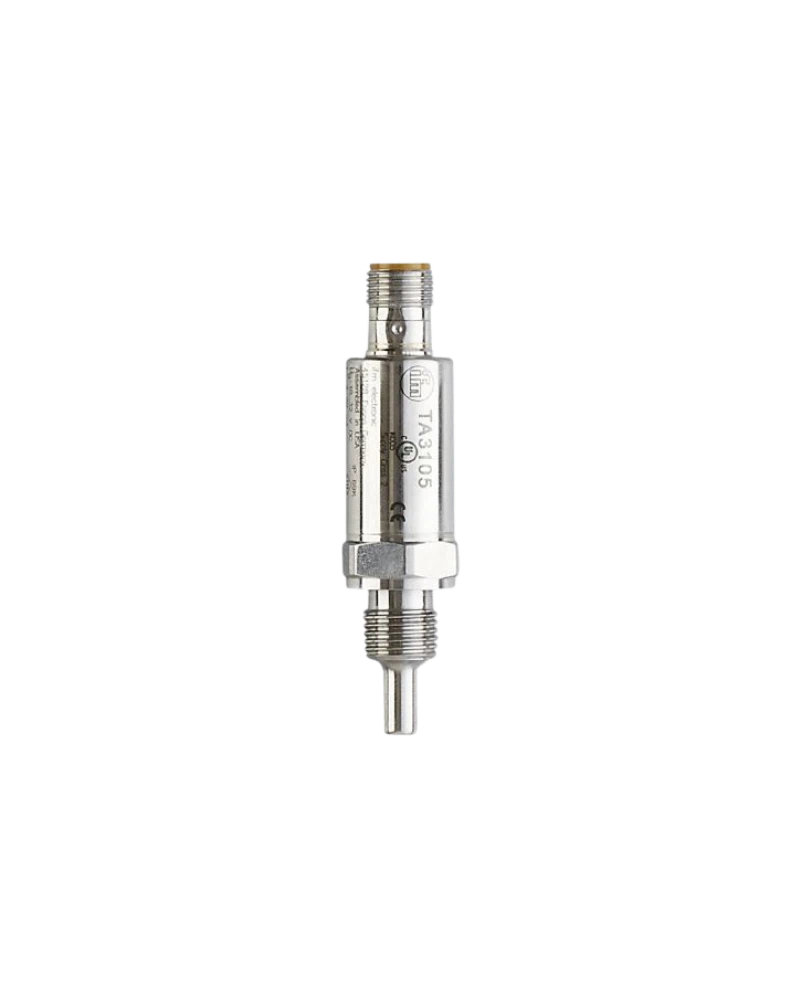

TA3105 is a compact temperature transmitter designed especially for mobile-machine and industrial applications. It has a 25 mm installation length and a G 1/4 process connection. The transmitter provides a 4–20 mA analogue output and operates from a 10–30 V DC supply. Its M12 electrical connection provides practical integration with automation systems. The stainless-steel wetted construction and robust design support demanding mobile and machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA3105 is designed for compact temperature measurement where space is limited. Its 25 mm probe provides short insertion depth and fast thermal response. The G 1/4 process connection supports common industrial machine installations. A 4–20 mA output provides direct compatibility with controllers. The transmitter is suitable for mobile hydraulics, machinery and industrial automation.
Machine Monitoring
TA3105 can continuously monitor temperatures in hydraulic and mechanical systems. The 4–20 mA signal can be connected to machine controllers. Its compact design helps integrate temperature measurement into restricted installation areas. Fast response supports dynamic machine operation. This enables monitoring of temperature-critical components.
Rugged Construction
The transmitter is designed for demanding mobile-machine environments. Stainless-steel wetted materials provide mechanical durability. Reverse-polarity and overload protection help protect the electronics. High protection ratings support exposure to moisture and contamination. Its M12 connection simplifies service and installation.
25 mm installation length
−50…150 °C measuring range
G 1/4 process connection
Pt1000 temperature sensing
4–20 mA output
10–30 V DC supply
M12 electrical connection
Stainless-steel wetted material
Gold-plated contacts
Fast response
T05 approximately 1 s
T09 approximately 3 s
IP68/IP69K protection
Reverse-polarity protection
Overload protection
High vibration resistance
Machine automation compatibility
Compact housing
PLC integration
Continuous monitoring
Mobile machinery
Construction equipment
Agricultural machinery
Hydraulic systems
Off-highway vehicles
Industrial machines
Pumps
Compressors
Engine systems
Machine temperature monitoring
PLC control
Machine diagnostics
Preventive maintenance
Equipment protection
Industrial automation
| Specification | Details |
|---|---|
| Model | TA3105 |
| Order code | TA-025CLEM14-A-ZVG/US |
| Product type | Temperature transmitter |
| Measuring range | −50…150 °C |
| Installation length | 25 mm |
| Process connection | G 1/4 |
| Sensor | Pt1000 / RTD platform |
| Output | 4–20 mA |
| Supply voltage | 10–30 V DC |
| Electrical connection | M12 |
| Connector type | M12 x1 |
| Output scaling | Configurable |
| Response T05 | Approx. 1 s |
| Response T09 | Approx. 3 s |
| Protection | IP68/IP69K |
| Reverse polarity | Yes |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Wetted material | Stainless steel 316L |
| Ambient | −40…100 °C family |
| Operating class | Industrial/mobile |
| EMC | DIN EN 61000-6-2 |
| EMC emission | DIN EN 61000-6-3 |
| Mounting | Threaded |
| Application | Mobile machinery |
