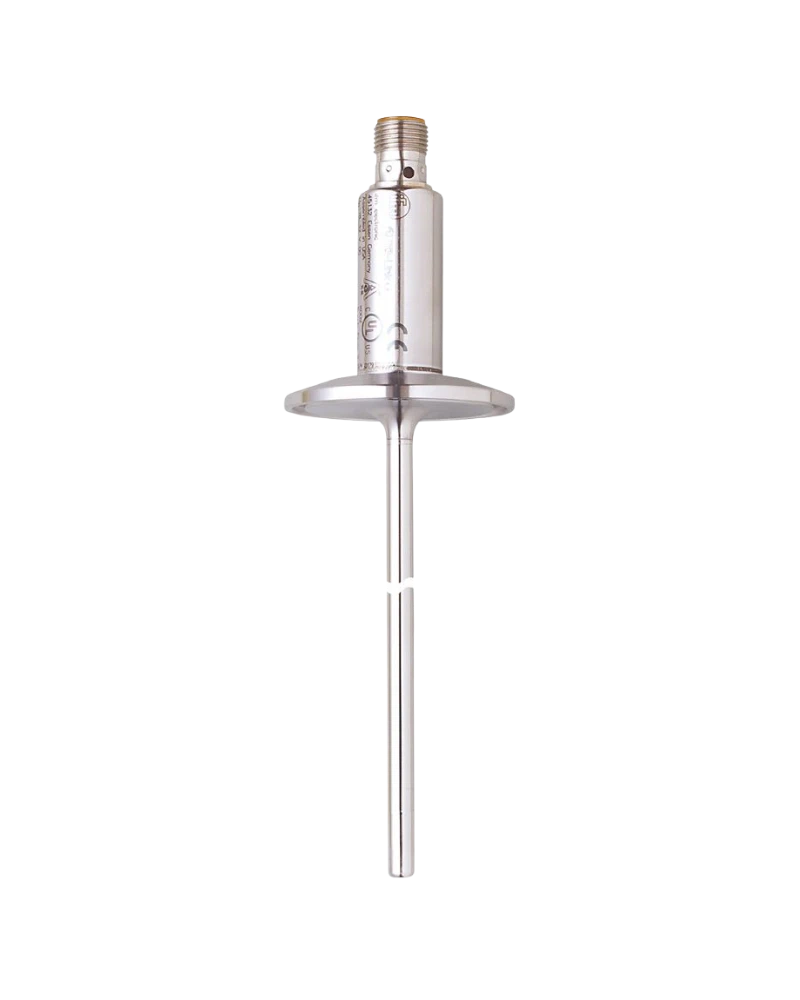

TA2844 is a 150 mm hygienic temperature transmitter designed for deep temperature measurement in sanitary process equipment. It uses a 1.5-inch Tri-Clamp process connection for hygienic installation. The transmitter provides a scalable 4–20 mA analogue output and IO-Link communication. Its extended probe is suitable for larger tanks and process vessels. Stainless-steel construction and high ingress protection provide reliable performance in demanding process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2844 is the long-probe Tri-Clamp variant of the TA28 transmitter family. Its 150 mm installation length provides extended sensing depth. The sensor continuously measures process temperature and provides the result to automation systems. The analogue output supports standard PLC integration. IO-Link adds digital parameterisation, diagnostics and process data.
Process Measurement
The temperature element responds to changes in process temperature. Internal electronics calculate and transmit the measured value. The 4–20 mA signal provides continuous process information. IO-Link provides additional digital communication. This allows the transmitter to support automated process control and monitoring.
Hygienic Reliability
The Tri-Clamp interface provides a sanitary connection to process equipment. Stainless-steel materials support cleaning and hygienic operation. High protection ratings help protect against washdown exposure. The long probe provides access to deeper process zones. The transmitter is suitable for continuous food and beverage production.
150 mm installation length
1.5-inch Tri-Clamp
Pt1000 sensing element
−50…200 °C family range
4–20 mA
IO-Link 1.1
COM2
18–32 V DC
M12 connection
Stainless steel
316L wetted material
0.04 K resolution
Fast response
High IP protection
Hygienic design
Washdown suitability
Digital diagnostics
Scalable output
PLC compatible
Industrial reliability
Food processing
Dairy plants
Beverage production
Breweries
Large hygienic tanks
Process vessels
Sanitary pipelines
Filling machinery
CIP systems
SIP systems
Temperature control
Quality monitoring
PLC automation
SCADA
Production monitoring
| Specification | Details |
|---|---|
| Model | TA2844 |
| Order code | TA-150FLEC01--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 |
| Measuring range | −50…200 °C family |
| Installation length | 150 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | Tri-Clamp |
| Clamp size | 1.5 in |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
| Application | Hygienic |
| Installation | Tri-Clamp |
