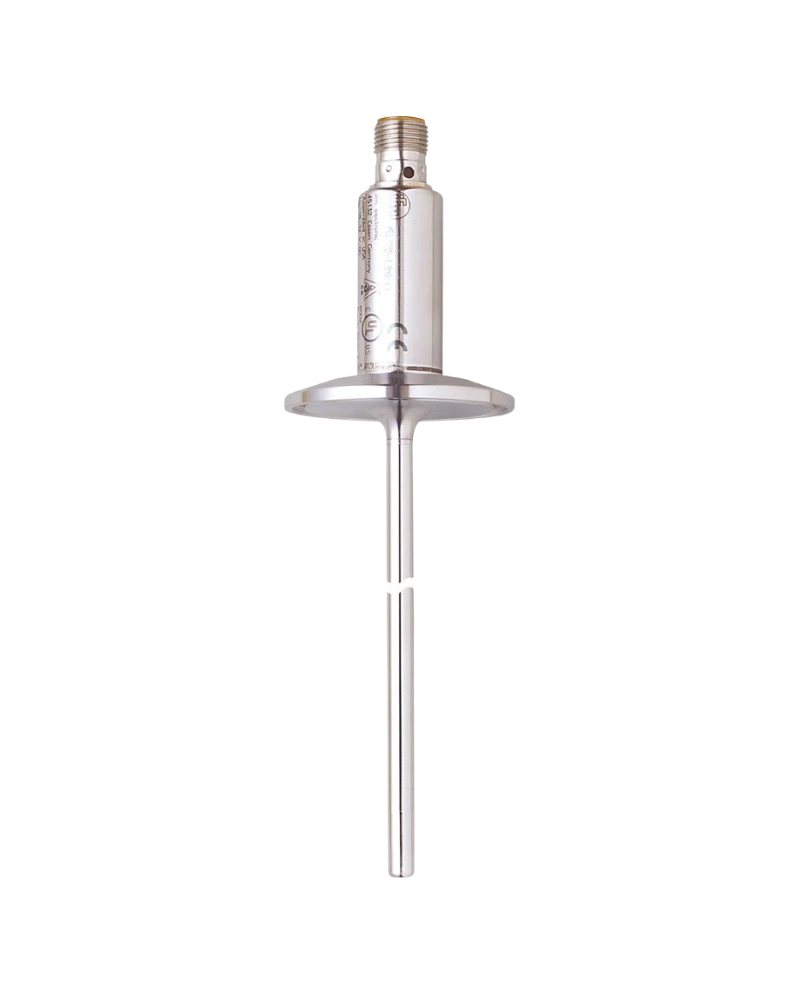

TA2842 is a long-probe hygienic temperature transmitter with a 150 mm installation length. It is designed for deeper temperature measurement in sanitary tanks, vessels and process piping. The transmitter provides a scalable 4–20 mA output and IO-Link communication. Its clamp process connection supports hygienic installation and maintenance. Stainless-steel construction and high protection make it suitable for demanding food and beverage environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2842 provides extended sensing depth for hygienic process applications. Its 150 mm probe allows temperature measurement deeper inside process media. The Pt1000-based sensing system provides reliable temperature monitoring. The 4–20 mA output supports standard control systems. IO-Link provides additional digital parameterisation and diagnostics.
Deep Process Measurement
The longer probe allows the sensing element to reach deeper process zones. This is useful in larger tanks and process vessels. The analogue output continuously transmits the measured temperature. Digital communication provides additional process information. The sensor can be integrated into automated temperature-control systems.
Hygienic Construction
The clamp-style process connection supports sanitary process installation. Stainless-steel materials provide durability and cleaning compatibility. High IP protection supports washdown conditions. The 150 mm probe provides useful reach for larger process equipment. The transmitter is designed for continuous industrial service.
150 mm installation length
Pt1000 sensor
−50…200 °C family range
Clamp process connection
4–20 mA
IO-Link 1.1
COM2
18–32 V DC
M12 connector
Stainless steel
316L wetted material
Fast response
0.04 K resolution
High IP rating
Hygienic construction
Washdown suitable
Digital diagnostics
Scalable output
PLC integration
Food processing
Dairy tanks
Beverage plants
Brewing systems
Large process vessels
Sanitary pipelines
Filling equipment
CIP systems
SIP systems
Process skids
Temperature control
Quality assurance
PLC automation
SCADA
Production monitoring
| Specification | Details |
|---|---|
| Model | TA2842 |
| Order code | TA-150CLEC01--/US |
| Sensor | Pt1000 |
| Measuring range | −50…200 °C family |
| Installation length | 150 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | Clamp |
| Clamp family | 1–1.5 in |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
| Application | Hygienic process |
| Installation | Clamp |
