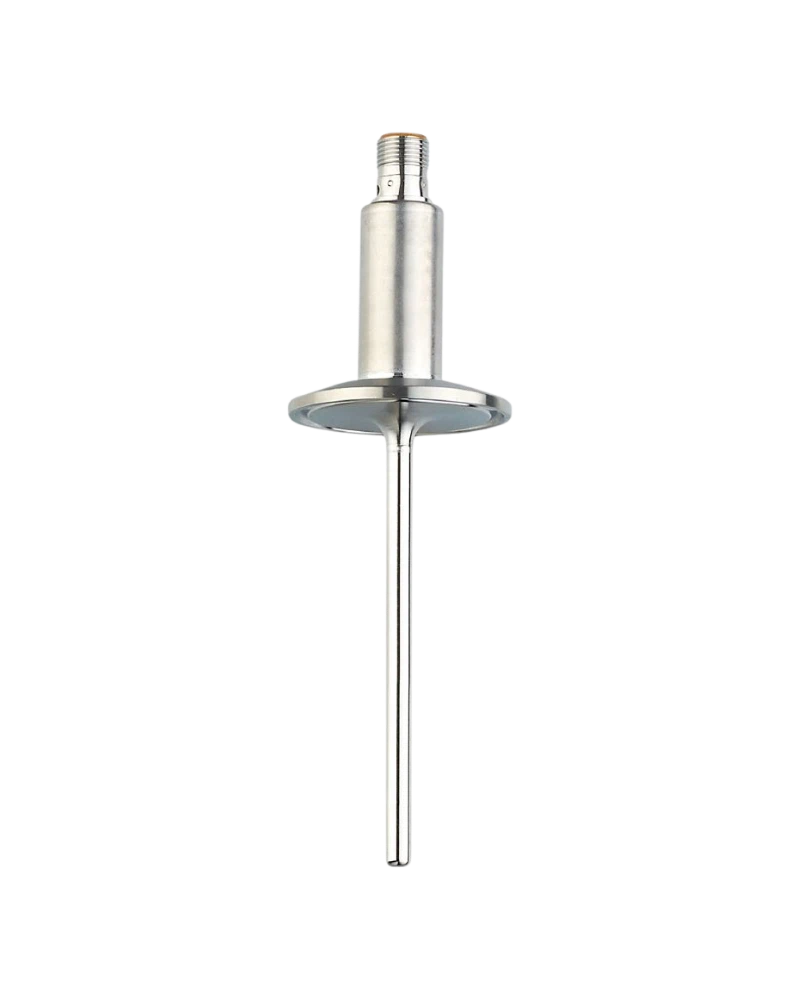

TA2834 is a 100 mm hygienic temperature transmitter with a 1.5-inch Tri-Clamp process connection. It is designed for reliable temperature monitoring in sanitary process systems. The extended probe provides deeper sensing inside tanks and process equipment. A 4–20 mA output supports conventional automation while IO-Link enables digital communication. Stainless-steel construction provides durability in food, beverage and process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2834 is designed for hygienic temperature measurement where a 100 mm insertion length is required. Its Tri-Clamp process interface provides a practical sanitary mounting method. The temperature sensing element provides continuous process measurement. The analogue output supports PLC and process controllers. IO-Link adds digital configuration and diagnostic functions.
Process Control
TA2834 can be used for continuous temperature monitoring and regulation. The measured value is transmitted through the 4–20 mA output. IO-Link provides additional digital process data. PLC systems can use the signal for heating or cooling control. This supports consistent process conditions and equipment protection.
Hygienic Reliability
The Tri-Clamp connection supports sanitary process installation. Stainless-steel materials provide mechanical durability. High IP protection supports cleaning and washdown. The 100 mm probe provides extended sensing depth. This makes the transmitter useful for larger hygienic process vessels.
100 mm installation length
1.5-inch Tri-Clamp
Pt1000 element
−50…200 °C family range
4–20 mA output
IO-Link 1.1
COM2
18–32 V DC
M12 connector
Stainless steel
316L wetted material
Fast response
0.04 K resolution
High IP rating
Hygienic construction
Washdown protection
Digital diagnostics
Scalable output
PLC integration
Food processing
Dairy systems
Beverage manufacturing
Breweries
Process vessels
Sanitary tanks
Filling systems
CIP
SIP
Process skids
Temperature control
Quality monitoring
PLC automation
SCADA
Production monitoring
| Specification | Details |
|---|---|
| Model | TA2834 |
| Order code | TA-100FLEC01--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 |
| Measuring range | −50…200 °C family |
| Installation length | 100 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | Tri-Clamp |
| Clamp size | 1.5 in |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
| Installation | Sanitary clamp |
