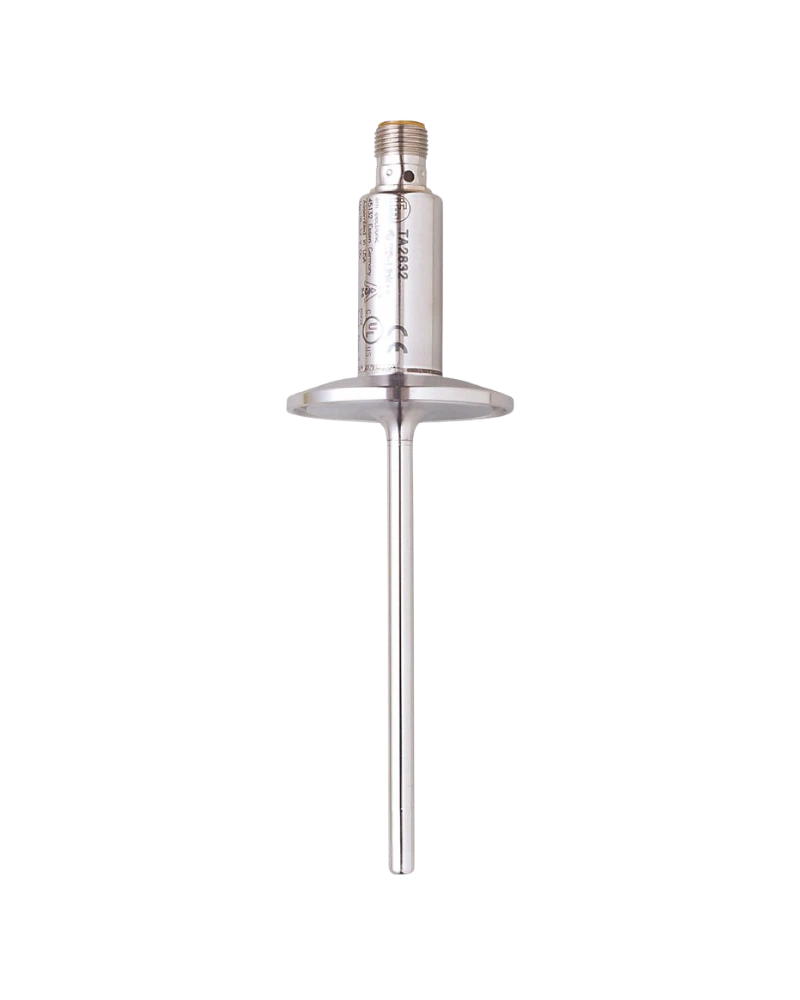

TA2832 is a 100 mm hygienic temperature transmitter designed for deeper process temperature measurement. It provides a scalable 4–20 mA output and digital IO-Link communication. The 100 mm probe provides useful insertion depth for tanks and process vessels. Its clamp-style process connection supports hygienic installation. Stainless-steel construction and high protection make it suitable for demanding food and beverage environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2832 provides reliable temperature measurement where a longer hygienic probe is required. The 100 mm insertion length allows the sensing element to reach deeper into process media. Its Pt1000-based measurement platform supports accurate temperature monitoring. The analogue output supports PLC and process-control integration. IO-Link adds digital configuration and diagnostics.
Process Monitoring
TA2832 continuously monitors temperature in process equipment. The transmitter converts the measured temperature into an analogue current signal. IO-Link provides digital access to process data. This allows integration into automated control systems. The sensor can support process alarms and temperature regulation.
Hygienic Construction
The clamp connection is suitable for sanitary process equipment. Stainless-steel materials support hygienic operation and cleaning. High IP protection helps withstand washdown conditions. The 100 mm probe provides extended process reach. The transmitter is suitable for continuous production environments.
100 mm installation length
Pt1000 temperature sensing
−50…200 °C family range
Clamp process connection
4–20 mA
IO-Link 1.1
COM2
18–32 V DC
M12 connector
Stainless steel
316L wetted material
Fast response
0.04 K resolution
High IP protection
Hygienic design
Washdown capability
Digital diagnostics
Scalable output
PLC compatible
Food production
Dairy processing
Beverage manufacturing
Breweries
Process tanks
Sanitary vessels
Hygienic piping
Filling machinery
CIP systems
SIP systems
Temperature control
Process monitoring
PLC automation
Quality control
Production systems
| Specification | Details |
|---|---|
| Model | TA2832 |
| Order code | TA-100CLEC01--/US |
| Sensor | Pt1000 |
| Measuring range | −50…200 °C family |
| Installation length | 100 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | Clamp |
| Clamp family | 1–1.5 in |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
| Application | Hygienic |
| Installation | Clamp |
