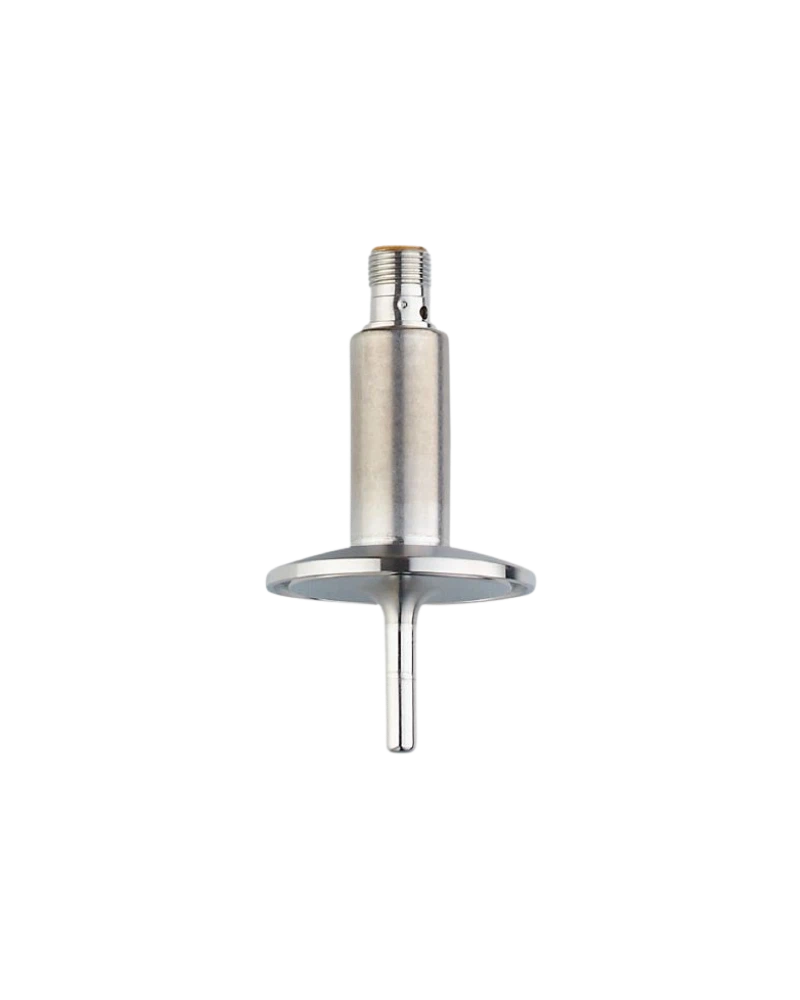

TA2814 is a 50 mm hygienic temperature transmitter designed for process installations using a 1.5-inch Tri-Clamp connection. It provides reliable temperature monitoring for sanitary process systems. The transmitter supports a scalable 4–20 mA output for conventional automation. IO-Link enables digital configuration and diagnostics. Its stainless-steel construction and hygienic connection make it suitable for food, beverage and pharmaceutical-style process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2814 combines a 50 mm installation length with a sanitary Tri-Clamp process connection. It provides a practical sensing depth for process tanks and hygienic pipelines. The temperature element continuously measures process conditions. The 4–20 mA output allows connection to conventional controllers. IO-Link provides additional digital process information.
Hygienic Construction
The Tri-Clamp connection supports fast and hygienic installation. Stainless-steel materials provide durability and cleaning compatibility. The transmitter is designed for demanding washdown environments. High ingress protection protects the electronics. Its compact form simplifies installation in sanitary machinery.
Process Automation
TA2814 can be integrated into PLC and process-control systems. The analogue output provides continuous temperature information. IO-Link can provide configuration and diagnostic data. Temperature limits can be monitored by the automation controller. This supports quality, safety and process consistency.
50 mm installation length
1.5-inch Tri-Clamp
Pt1000 sensing element
−50…200 °C family range
4–20 mA output
IO-Link 1.1
COM2
18–32 V DC
M12 connector
Stainless steel
316L wetted material
Hygienic design
0.04 K resolution
Fast response
IP67/IP68/IP69K
Washdown protection
Digital diagnostics
Scalable signal
PLC integration
Food processing
Dairy systems
Beverage plants
Brewing
Hygienic tanks
Sanitary piping
Filling equipment
CIP systems
SIP systems
Process skids
Temperature control
Quality assurance
PLC automation
SCADA
Production monitoring
| Specification | Details |
|---|---|
| Model | TA2814 |
| Order code | TA-050FLEC01--/US |
| Sensor | Pt1000 |
| Family range | −50…200 °C |
| Installation length | 50 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | Tri-Clamp |
| Clamp size | 1.5 in |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Communication mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
| Application | Hygienic processing |
| Installation | Sanitary clamp |
