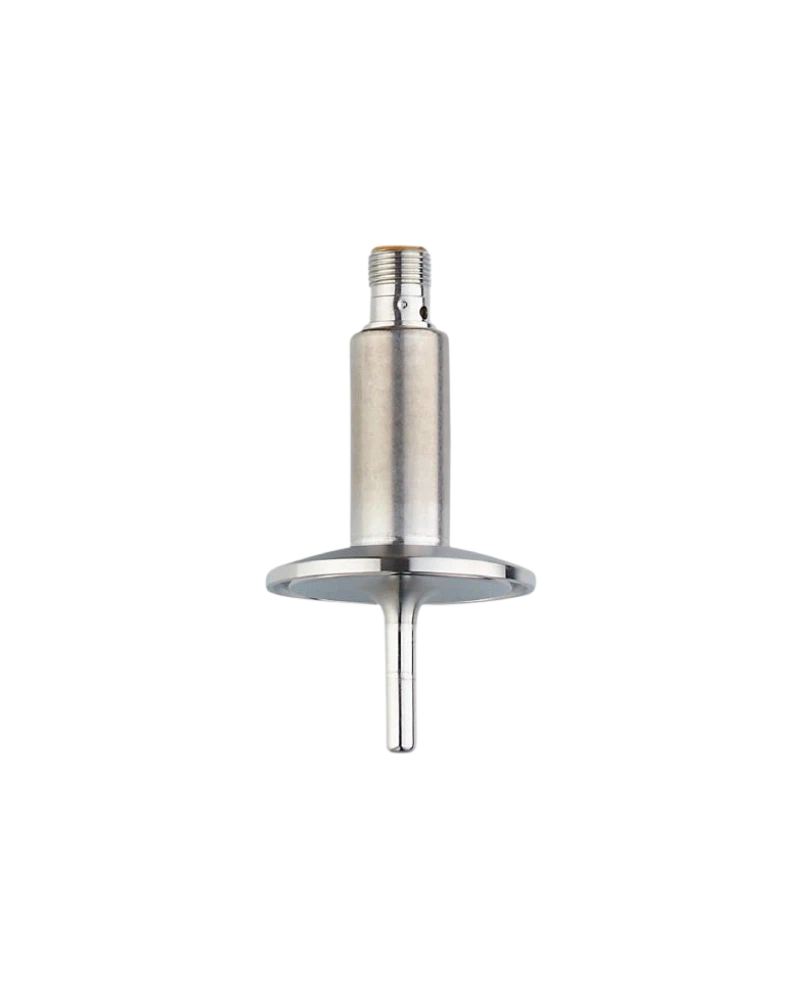

TA2812 is a hygienic temperature transmitter with a 50 mm installation length for reliable process temperature measurement. It is designed for sanitary installations using a compatible clamp connection. The transmitter provides a scalable 4–20 mA analogue output for industrial automation. IO-Link provides digital parameterisation and diagnostics. Its stainless-steel construction makes it suitable for food, beverage and hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2812 provides additional insertion depth compared with the 30 mm TA2802. Its 50 mm probe is suitable for tanks, process pipes and sanitary machinery. The temperature element provides stable measurement for process monitoring. The analogue output integrates with PLC and control systems. Digital communication provides additional flexibility for commissioning and maintenance.
Hygienic Process Design
The clamp connection allows practical installation in sanitary process systems. Stainless-steel wetted materials support hygienic operation. High ingress protection helps protect the device during washdown. The compact transmitter can be integrated into process machinery. Its construction supports continuous production environments.
Temperature Control
TA2812 continuously monitors process temperature. The internal electronics generate a proportional 4–20 mA signal. IO-Link provides digital process information. This allows connection to modern automation systems. The sensor can be used for temperature alarms and closed-loop control.
50 mm installation length
Pt1000 sensor
−50…200 °C family range
Clamp process connection
4–20 mA output
IO-Link 1.1
COM2
18–32 V DC
M12 connector
Stainless steel
316L wetted material
0.04 K resolution
Fast response
IP67/IP68/IP69K
Hygienic design
Washdown suitability
Digital diagnostics
Scalable output
PLC integration
Food processing
Dairy plants
Beverage production
Brewing
Hygienic tanks
Sanitary piping
Filling systems
CIP
SIP
Process skids
Temperature control
Quality monitoring
PLC automation
SCADA
Production monitoring
| Specification | Details |
|---|---|
| Model | TA2812 |
| Order code | TA-050CLEC01--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 |
| Measuring range | −50…200 °C family |
| Installation length | 50 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | Clamp |
| Clamp size | 1–1.5 in family |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | ≤0.5 s |
| Response T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
| Application | Hygienic process |
