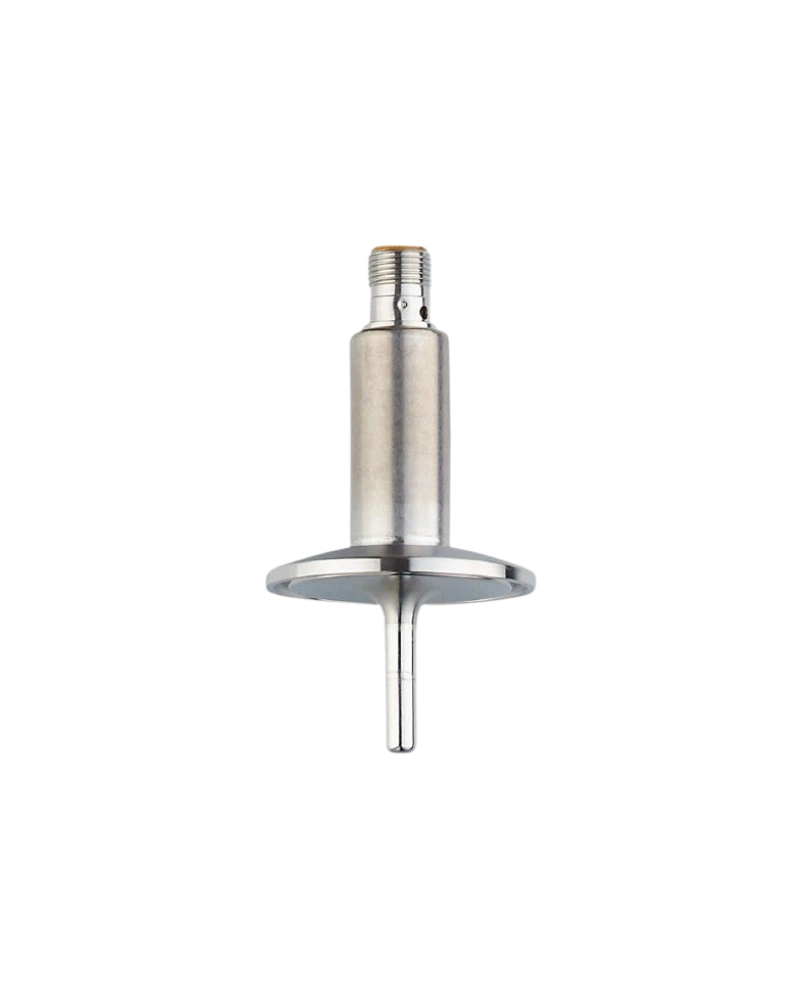

TA2804 is a compact hygienic temperature transmitter designed for process applications using a 1.5-inch Tri-Clamp connection. Its 30 mm installation length provides a compact sensing solution. The transmitter is designed for temperature measurement in food, beverage and sanitary processing systems. A 4–20 mA output supports standard industrial automation. IO-Link provides additional digital configuration and diagnostics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2804 is the 30 mm version of the TA28 hygienic transmitter family. The Tri-Clamp process interface allows easy installation and removal in sanitary process systems. The compact probe supports applications with limited insertion depth. The transmitter provides continuous temperature data for control systems. Its digital communication capability supports modern automation and maintenance workflows.
Hygienic Construction
The sensor is intended for hygienic applications requiring sanitary process connections. Stainless-steel construction provides durability and cleaning compatibility. The Tri-Clamp interface supports quick process installation. High ingress protection helps protect the electronics during washdown. The compact body is suitable for food and beverage machinery.
Process Monitoring
The sensing element measures process temperature continuously. Electronics generate the proportional analogue output. The 4–20 mA signal can be connected to PLC and process controllers. IO-Link provides additional process and diagnostic information. This allows automated temperature control and monitoring.
30 mm insertion length
1.5-inch Tri-Clamp family
Pt1000 sensor
−50…200 °C family capability
4–20 mA
IO-Link 1.1
COM2
18–32 V DC
M12 connector
Stainless steel
316L wetted material
Hygienic construction
Fast response
0.04 K resolution
High IP protection
Washdown resistant
Digital diagnostics
Scalable output
PLC compatible
Process automation
Food processing
Dairy plants
Beverage systems
Brewing
Sanitary tanks
Hygienic pipelines
Filling systems
CIP
SIP
Process skids
Temperature control
Quality control
Production monitoring
PLC automation
Sanitary machinery
| Specification | Details |
|---|---|
| Model | TA2804 |
| Order code | TA-030FLEC01--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 |
| Family measuring range | −50…200 °C |
| Installation length | 30 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | Tri-Clamp |
| Clamp size | 1.5 in |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| IO-Link | 1.1 |
| Communication | COM2 |
| Supply | 18–32 V DC |
| Electrical connection | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
| Application | Hygienic process |
