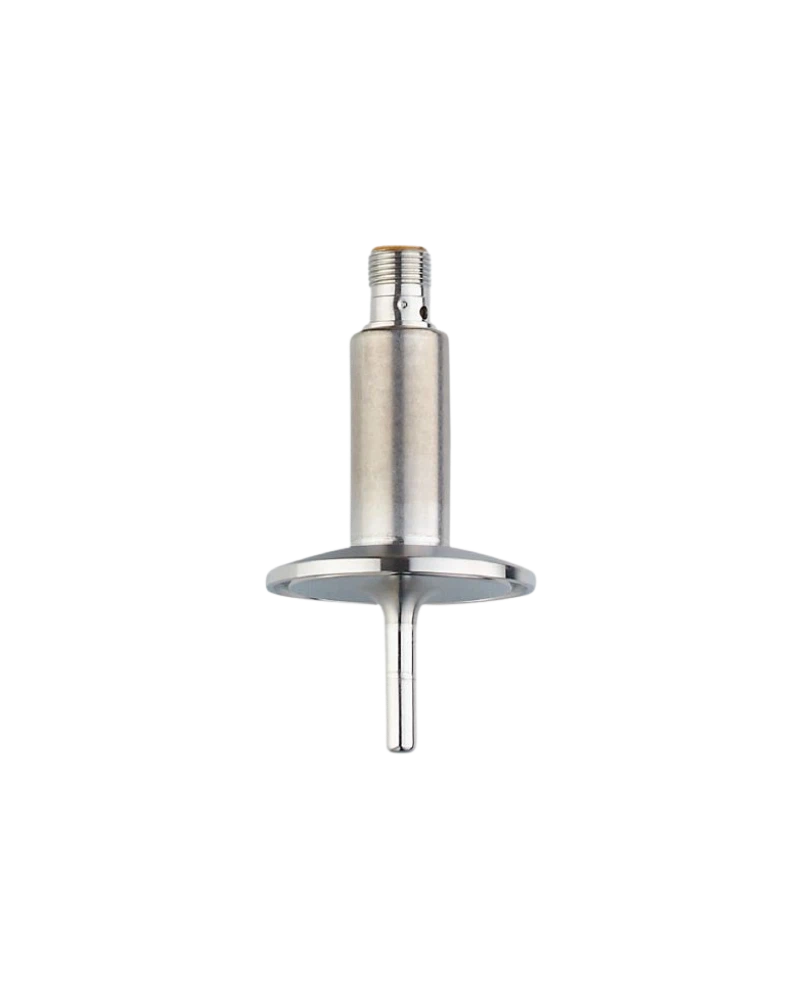

TA2802 is a hygienic temperature transmitter designed for compact installation in food and process equipment. It has a 30 mm installation length and is intended for use with compatible Tri-Clamp process connections. The transmitter provides accurate temperature measurement and a standard 4–20 mA analogue output. IO-Link enables digital configuration and diagnostic functions. Its stainless-steel construction and hygienic process design make it suitable for sanitary production environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2802 is the compact 30 mm variant in the TA28 hygienic transmitter family. It is designed for installations where sanitary clamp connections are preferred. The short probe provides rapid access to the process temperature. The analogue output integrates with conventional process-control systems. IO-Link supports modern digital automation architectures.
Hygienic Design
The transmitter is designed for hygienic process installations. Its compatible Tri-Clamp interface supports sanitary mounting. Stainless-steel wetted materials provide durability and cleaning compatibility. High ingress protection supports washdown environments. The compact design simplifies installation in food and beverage machinery.
Measurement & Control
The temperature element continuously detects the process temperature. Internal electronics convert the measurement into the analogue output. The 4–20 mA signal provides reliable communication with control equipment. IO-Link provides digital measurement and parameter information. This supports automated process monitoring and temperature control.
30 mm installation length
Hygienic transmitter design
Pt1000 temperature element
−50…200 °C family range
Tri-Clamp process connection
1.5-inch clamp family compatibility
4–20 mA output
IO-Link
COM2
18–32 V DC
Stainless-steel construction
316L wetted material
Fast response
0.04 K resolution
High IP protection
Washdown suitability
Digital diagnostics
PLC integration
Scalable output
Process monitoring
Food processing
Dairy production
Beverage manufacturing
Breweries
Hygienic tanks
Sanitary piping
Filling machines
CIP systems
SIP systems
Packaging equipment
Process control
Temperature monitoring
Quality assurance
PLC automation
Production monitoring
| Specification | Details |
|---|---|
| Model | TA2802 |
| Order code | TA-030FLEC01--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 |
| Family range | −50…200 °C |
| Installation length | 30 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | Clamp |
| Clamp family | 1–1.5 in / model dependent |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Wetted material | 316L |
| Housing | Stainless steel |
| Medium | Liquids/gases |
| Application | Hygienic process |
