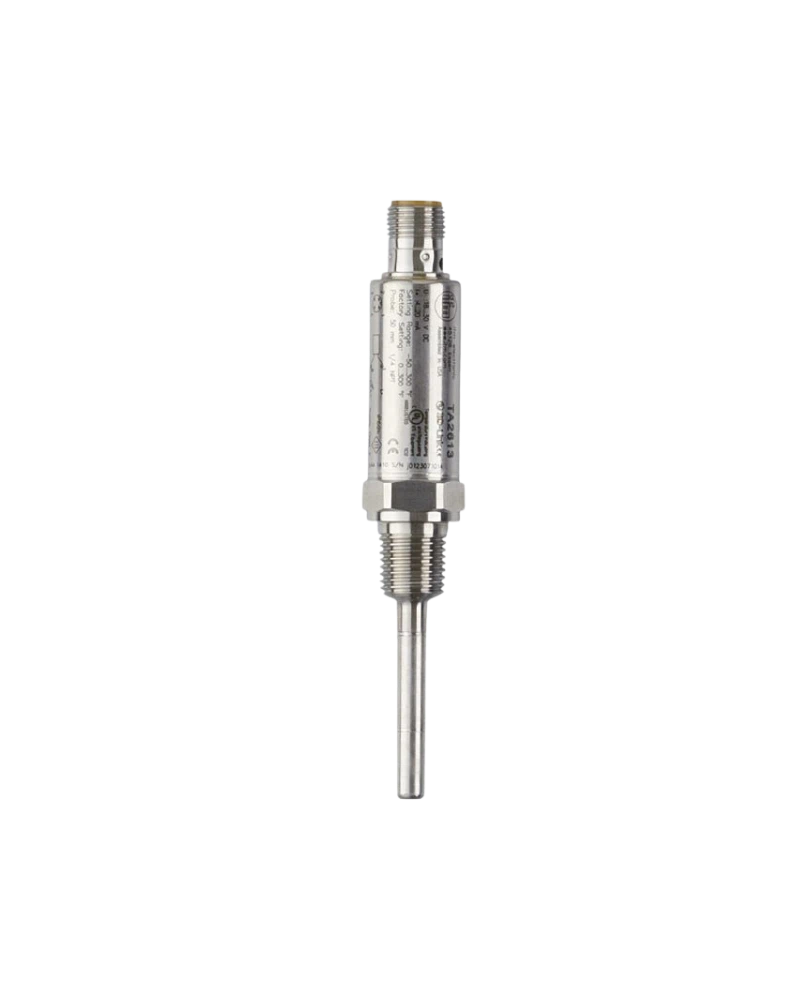

TA2613 is an industrial temperature transmitter with a 50 mm installation length and 1/4-inch NPT process connection. It is designed for reliable temperature monitoring in machinery and process systems. The transmitter provides a standard 4–20 mA output for industrial automation. Its compact cylindrical construction supports straightforward installation. The unit is suitable for hydraulic, pneumatic, process and OEM applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2613 provides a longer sensing depth than the 25 mm TA2603 variant. Its 50 mm probe allows the sensing element to reach further into the process medium. The 1/4-inch NPT process connection is suitable for threaded industrial installations. The analogue output allows direct connection to PLC inputs. IO-Link functionality supports configuration and diagnostic capabilities on compatible installations.
Measurement Performance
The RTD element responds to changes in process temperature. Electronics convert the sensing signal into a continuous temperature output. The 4–20 mA signal provides compatibility with standard control architectures. Digital communication can simplify commissioning. Continuous monitoring supports temperature control and equipment protection.
Mechanical Design
The transmitter uses a compact stainless-steel construction. Its 50 mm probe provides useful insertion depth without excessive installation size. The 1/4-inch NPT process connection supports industrial threaded mounting. High protection characteristics support demanding environments. The design is suitable for continuous machine operation.
Pt1000 temperature element
−50…150 °C family range
50 mm installation length
1/4-inch NPT connection
6 mm probe
4–20 mA output
IO-Link 1.1
COM2
M12 electrical connection
Stainless steel
Compact housing
Fast temperature response
High IP protection
PLC integration
Process monitoring
Digital diagnostics
Scalable signal
Reverse-polarity protection
Overload protection
Short-circuit protection
Hydraulic systems
Pneumatic equipment
Industrial machinery
Machine tools
Pumps
Compressors
Process lines
OEM equipment
Temperature control
PLC systems
SCADA
Equipment protection
Preventive maintenance
Industrial automation
Process monitoring
| Specification | Details |
|---|---|
| Model | TA2613 |
| Order code | TA-050FLEN14-A-ZVG/US |
| Product type | Temperature transmitter |
| Measuring element | Pt1000 |
| Family range | −50…150 °C |
| Installation length | 50 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | 1/4 in NPT |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | Model dependent |
| Accuracy | Model dependent |
| Response | Fast-response |
| Ambient | Model dependent |
| Protection | High IP rating |
| Housing | Stainless steel |
| Wetted material | Stainless steel |
| Medium | Liquid/gas |
| Mounting | Threaded |
| Integration | PLC |
