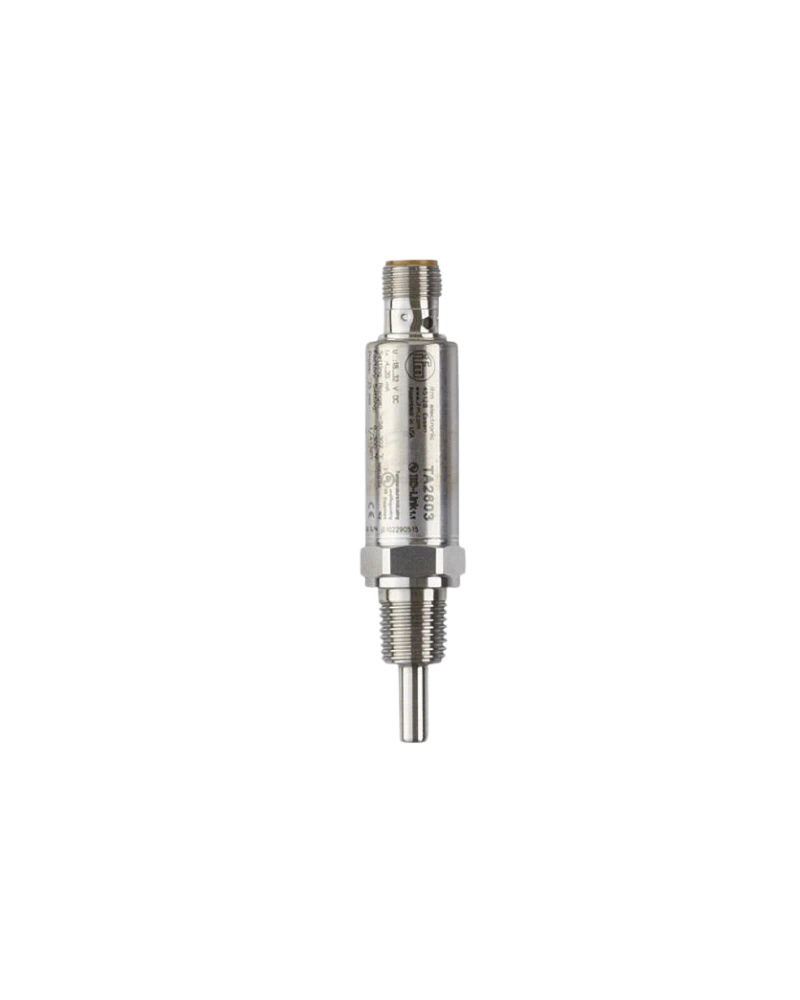

TA2603 is a compact industrial temperature transmitter with a 25 mm installation length and 1/2-inch NPT process connection. It is designed for temperature measurement in industrial machinery and process equipment. The transmitter uses a Pt1000-class temperature sensing element and provides a 4–20 mA output. Its compact probe is useful where installation space is limited. The stainless-steel construction provides durability for demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2603 belongs to the IFM TA compact transmitter family for general industrial applications. Its 25 mm probe length provides a short insertion depth for compact machine installations. The 1/2-inch NPT connection is suitable for compatible threaded process ports. The transmitter converts measured temperature into a standard analogue signal. IO-Link capability within the TA26 family supports parameterisation and digital diagnostics.
Process Measurement
The temperature element detects process-temperature changes continuously. Internal electronics process the sensing signal and provide the corresponding output value. The 4–20 mA signal can be connected to PLC and automation equipment. Digital communication can be used for configuration on supported variants. This allows flexible integration into industrial control systems.
Construction
TA2603 uses a compact stainless-steel process design. Its NPT connection allows direct threaded installation. The short probe is suitable for machines and compact process assemblies. The sensor is designed for liquid and gaseous media. Protective features support reliable industrial operation.
Pt1000 temperature sensing
−50…150 °C family range
25 mm installation length
1/2-inch NPT process connection
6 mm probe
4–20 mA analogue output
IO-Link 1.1 family platform
Compact construction
Stainless-steel housing
M12 connection
Fast response
High protection rating
Industrial process design
PLC integration
Digital diagnostics
Scalable measurement
Reverse-polarity protection
Short-circuit protection
Overload protection
Reliable continuous monitoring
Hydraulic machinery
Pneumatic systems
Industrial pumps
Compressors
Machine tools
Process piping
OEM machinery
Industrial automation
Temperature control
PLC systems
Process monitoring
Equipment protection
Preventive maintenance
Plant engineering
Production machinery
| Specification | Details |
|---|---|
| Model | TA2603 |
| Order code | TA-025FLEN14-A-ZVG/US |
| Product type | Industrial temperature transmitter |
| Sensor | Pt1000 |
| Measuring range | −50…150 °C family |
| Installation length | 25 mm |
| Probe diameter | Approx. 6 mm |
| Process connection | 1/2 in NPT |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Communication | COM2 |
| Supply voltage | 18–32 V DC |
| Connector | M12 |
| Resolution | Model dependent |
| Accuracy | Model dependent |
| Response | Fast-response RTD design |
| Ambient temperature | Model dependent |
| Protection | High IP protection |
| Housing | Stainless steel |
| Process material | Stainless steel |
| Medium | Liquids/gases |
| Mounting | Threaded |
| Application | Industrial |
| Integration | PLC/automation |
