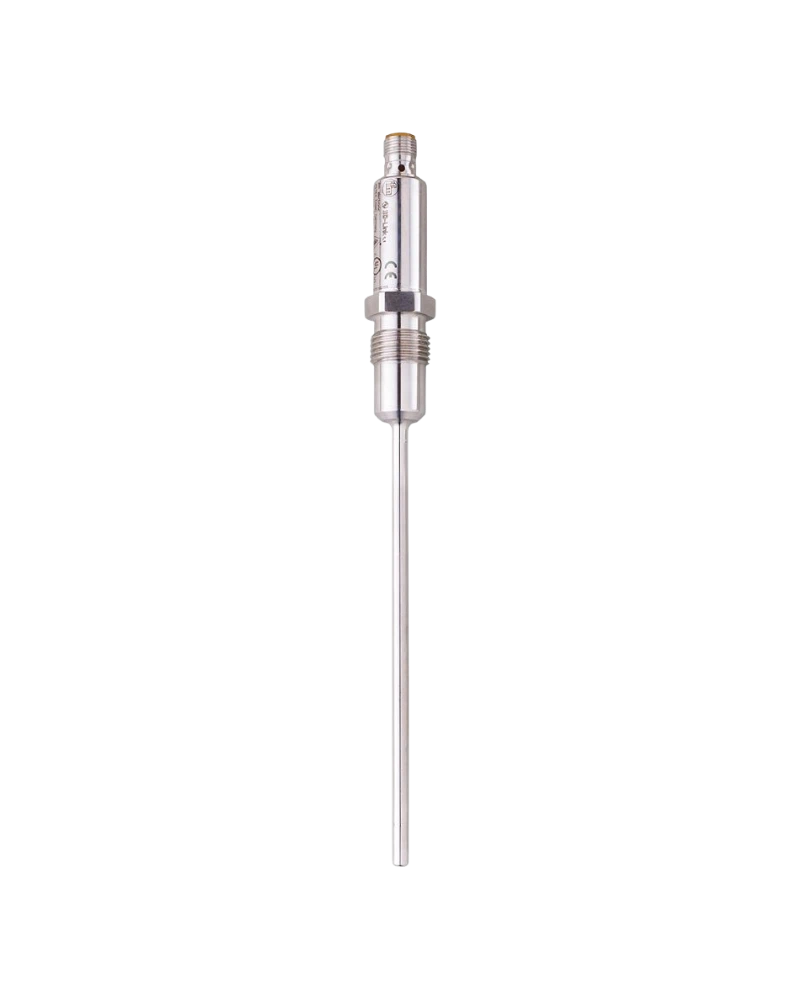

TA2542 is a 150 mm hygienic temperature transmitter designed for deeper temperature measurement in process equipment. It uses a Pt1000 Class A element and provides accurate monitoring across the TA25 family temperature range. The transmitter provides a scalable 4–20 mA output and IO-Link communication. Its G 1/2 sealing-cone connection supports secure installation. The extended probe makes TA2542 suitable for tanks, vessels, piping and food-processing equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2542 is the extended 150 mm variant of the hygienic TA25 transmitter family. Its longer probe allows the sensing element to reach deeper into process media. The Pt1000 Class A element provides stable and repeatable measurement. The 4–20 mA output supports conventional control architectures. IO-Link provides digital commissioning, parameterisation and diagnostics.
Process Measurement
TA2542 continuously monitors process temperature using an RTD sensing element. The integrated electronics calculate the process temperature from resistance variation. The analogue output transmits the temperature to a controller. IO-Link provides additional digital process information. This allows the transmitter to support both conventional and modern automation systems.
Hygienic Design
The transmitter is designed for hygienic processing environments. Its stainless-steel construction supports durability and cleaning compatibility. The G 1/2 sealing-cone connection provides reliable process integration. High ingress protection supports washdown conditions. Its 150 mm insertion length is useful for deeper hygienic vessels.
Pt1000 Class A
−50…200 °C family range
150 mm installation length
6 mm probe
G 1/2 connection
Sealing cone
4–20 mA
IO-Link 1.1
COM2
18–32 V DC
M12 connection
Stainless steel 316L
0.04 K resolution
Fast response
High pressure capability
IP67/IP68/IP69K
Digital diagnostics
Scalable analogue output
PLC compatible
Food processing plants
Dairy tanks
Beverage vessels
Brewing systems
Sanitary pipelines
Process tanks
Filling equipment
CIP systems
SIP systems
Process skids
Temperature control
Quality control
PLC automation
SCADA
Production monitoring
| Specification | Details |
|---|---|
| Model | TA2542 |
| Order code | TA-150CLER12--/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Installation length | 150 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 |
| Connection style | Sealing cone |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
| Application | Hygienic processing |
