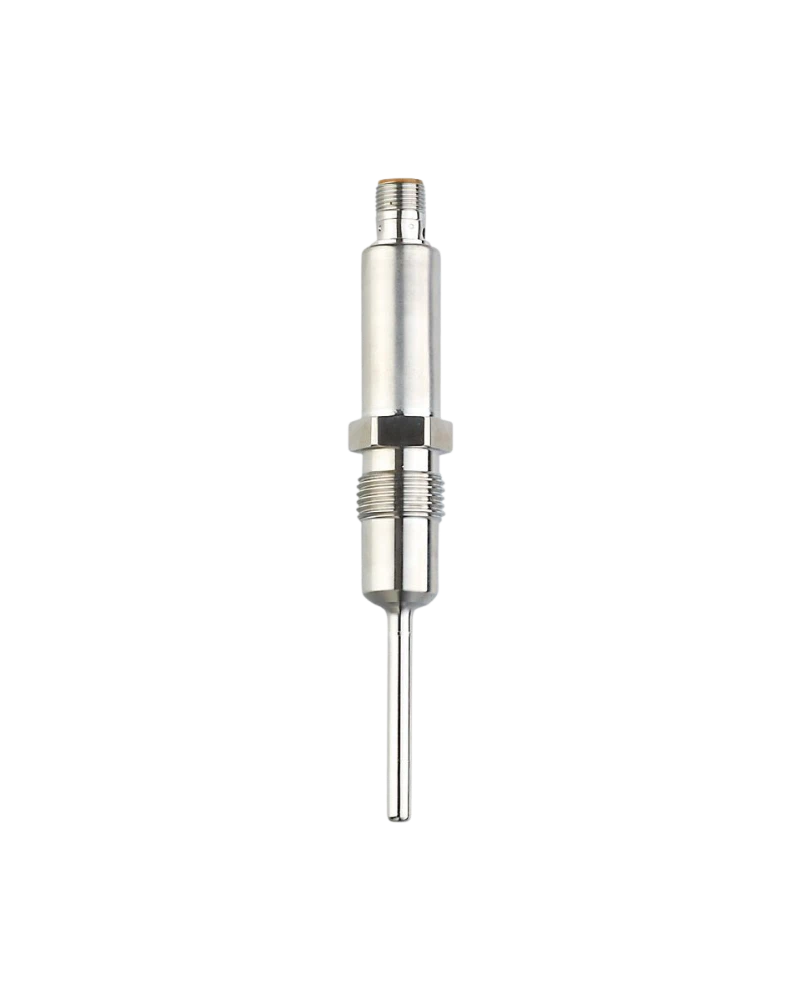

TA2537 is a hygienic temperature transmitter with a 100 mm probe designed for applications operating primarily within the 0…100 °C range. Its Pt1000 Class A measuring element provides accurate and repeatable temperature measurement. The device provides a scalable 4–20 mA output together with IO-Link communication. A G 1/2 sealing-cone process connection supports secure process installation. The transmitter is suitable for food processing, beverage production, hygienic machinery and automated temperature control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2537 is a 100 mm variant in the hygienic TA25 temperature-transmitter family. Its factory configuration is suited to 0…100 °C applications while the sensing platform supports the broader family measurement capability. The Pt1000 element provides stable temperature detection. Its analogue output integrates with conventional automation equipment. IO-Link adds digital configuration and diagnostic capabilities.
Temperature Monitoring
The transmitter continuously measures the temperature of the process medium. Internal electronics convert the Pt1000 resistance into the measured value. The analogue output provides a proportional current signal. IO-Link can provide additional process and diagnostic information. This makes the unit suitable for automated temperature regulation.
Hygienic Operation
The stainless-steel process construction is suitable for hygienic applications. The G 1/2 sealing cone allows secure connection to compatible process equipment. High protection ratings support washdown operations. The 100 mm insertion length enables deeper process measurement. This combination supports reliable food and beverage production.
Pt1000 Class A
100 mm installation length
0…100 °C factory setting
−50…200 °C family measurement capability
6 mm probe
G 1/2 connection
Sealing cone
4–20 mA
IO-Link 1.1
COM2
18–32 V DC
M12 connector
Stainless steel
316L wetted material
0.04 K resolution
Fast response
High IP rating
Digital diagnostics
Scalable output
PLC integration
Food processing
Dairy production
Beverage production
Brewing
Hygienic tanks
Process lines
Filling machines
CIP systems
SIP systems
Packaging machinery
Temperature control
Process monitoring
PLC systems
Quality control
Production automation
| Specification | Details |
|---|---|
| Model | TA2537 |
| Order code | TA-100CLER12--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 Class A |
| Family range | −50…200 °C |
| Factory range | 0…100 °C |
| Installation length | 100 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 |
| Connection | Sealing cone |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| IO-Link version | 1.1 |
| Communication mode | COM2 |
| Supply | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Material | Stainless steel 316L |
| Medium | Liquids and gases |
