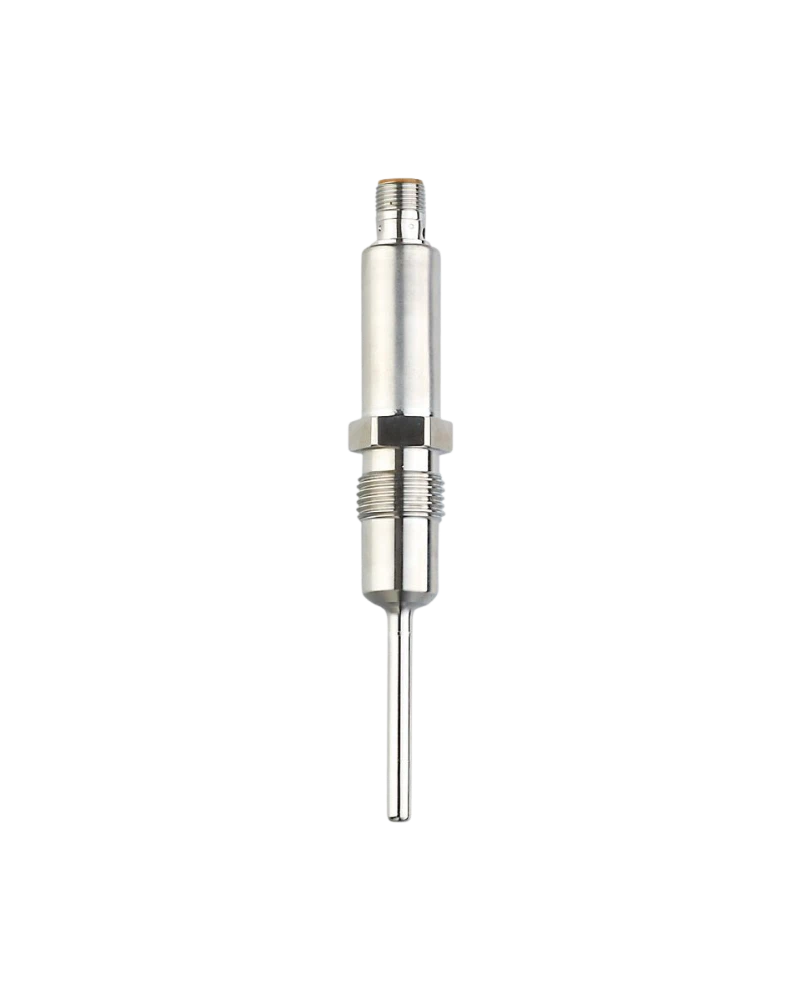

TA2532 is a 100 mm hygienic temperature transmitter designed for reliable temperature measurement in process applications. It uses a Pt1000 Class A sensing element and supports the extended temperature capability of the TA25 family. The transmitter provides a configurable 4–20 mA analogue signal and IO-Link communication. Its G 1/2 sealing-cone process connection enables secure installation in hygienic equipment. The robust stainless-steel construction supports food, beverage and industrial process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2532 combines a 100 mm insertion length with a compact industrial transmitter design. The Pt1000 Class A element provides accurate and repeatable process temperature measurement. Its 4–20 mA output is suitable for PLC and control-system integration. IO-Link allows convenient parameterisation and diagnostic communication. The transmitter is suitable for continuous monitoring in automated process systems.
Process Integration
The 100 mm probe provides deeper access to process media than shorter versions. This makes the transmitter suitable for tanks, vessels and process lines. The analogue output can be scaled according to application requirements. Digital communication provides additional process information. The result is a flexible temperature-monitoring solution for industrial automation.
Reliability & Hygiene
The sensor uses stainless-steel materials suitable for demanding process environments. The sealing-cone connection supports hygienic installation. IP67/IP68/IP69K protection helps protect the device from water and cleaning exposure. The compact electronics are housed in a robust cylindrical body. This design supports reliable operation and simplified maintenance.
Pt1000 Class A
−50…200 °C
100 mm installation length
6 mm probe
G 1/2 process connection
Sealing cone
4–20 mA scalable output
IO-Link 1.1
COM2
18–32 V DC
M12 electrical connector
Stainless-steel housing
316L wetted material
0.04 K resolution
Fast response
High pressure capability
IP67/IP68/IP69K
Digital diagnostics
PLC compatible
Food manufacturing
Dairy processing
Beverage plants
Process tanks
Hygienic piping
Filling systems
CIP equipment
SIP systems
Pumps
Process skids
Temperature control
PLC automation
SCADA monitoring
Quality control
Preventive maintenance
| Specification | Details |
|---|---|
| Model | TA2532 |
| Order code | TA-100CLER12--/US |
| Product category | Temperature transmitter |
| Measuring element | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Installation length | 100 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 |
| Connection style | Sealing cone |
| Output signal | 4–20 mA |
| Output configuration | Scalable |
| IO-Link | Yes |
| IO-Link revision | 1.1 |
| Communication | COM2 |
| Supply voltage | 18–32 V DC |
| Connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 | ≤0.5 s |
| T09 | ≤2 s |
| Ambient temperature | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Housing material | Stainless steel |
| Wetted material | 316L |
| Medium | Liquids/gases |
