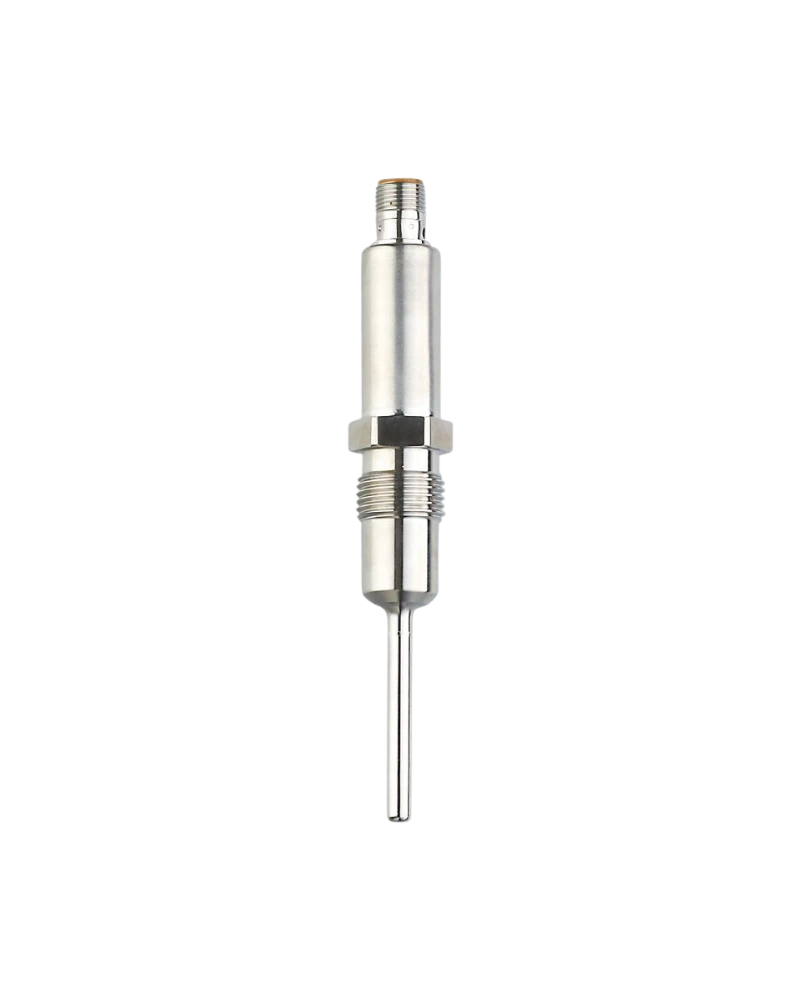

TA2531 is a hygienic temperature transmitter with a 100 mm installation length for accurate process temperature monitoring. It uses a Pt1000 Class A sensing element and is designed for applications requiring reliable temperature measurement. The transmitter provides a scalable 4–20 mA output and IO-Link communication for automation integration. Its G 1/2 sealing-cone process connection supports secure hygienic installation. The stainless-steel construction makes TA2531 suitable for food, beverage and process industries.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2531 provides extended sensing depth compared with compact 50 mm variants. The 100 mm probe allows the sensing element to reach deeper into tanks, vessels and process piping. The Pt1000 Class A element provides stable and repeatable temperature measurement. A 4–20 mA signal enables connection to conventional industrial controllers. IO-Link adds digital configuration, diagnostics and process-data access.
Process Measurement
The sensing element continuously detects changes in process temperature. Internal electronics convert resistance variation into a temperature value. The transmitter sends the measured value through its scalable analogue output. Digital communication can be used for commissioning and diagnostic functions. This combination supports continuous and automated temperature management.
Industrial Reliability
TA2531 is constructed for demanding hygienic process environments. The G 1/2 sealing-cone connection provides reliable process integration. Stainless-steel wetted materials help support hygienic operation. High ingress protection protects the sensor during cleaning and washdown. The transmitter is suitable for continuous operation in automated production systems.
Pt1000 Class A
−50…200 °C measuring range
−10…150 °C model family configuration available
100 mm installation length
6 mm probe
G 1/2 sealing cone
4–20 mA output
IO-Link 1.1
COM2
18–32 V DC
M12 connection
Stainless steel
High protection rating
Fast temperature response
0.04 K analogue resolution
Digital parameterisation
Process diagnostics
Reverse-polarity protection
Short-circuit protection
Overload protection
Food processing
Dairy plants
Beverage processing
Brewing systems
Process tanks
Sanitary piping
Filling equipment
CIP systems
SIP systems
Production machinery
Temperature monitoring
Process control
PLC automation
Quality monitoring
Equipment protection
| Specification | Details |
|---|---|
| Model | TA2531 |
| Order code | TA-100CLER12--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Installation length | 100 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 |
| Connection style | Sealing cone |
| Output | 4–20 mA |
| Output type | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Mode | COM2 |
| Supply | 18–32 V DC |
| Electrical connector | M12 |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| T05 response | ≤0.5 s |
| T09 response | ≤2 s |
| Ambient range | −25…80 °C |
| Protection | IP67/IP68/IP69K |
| Material | Stainless steel 316L |
| Typical medium | Liquids and gases |
| Application class | Hygienic process |
