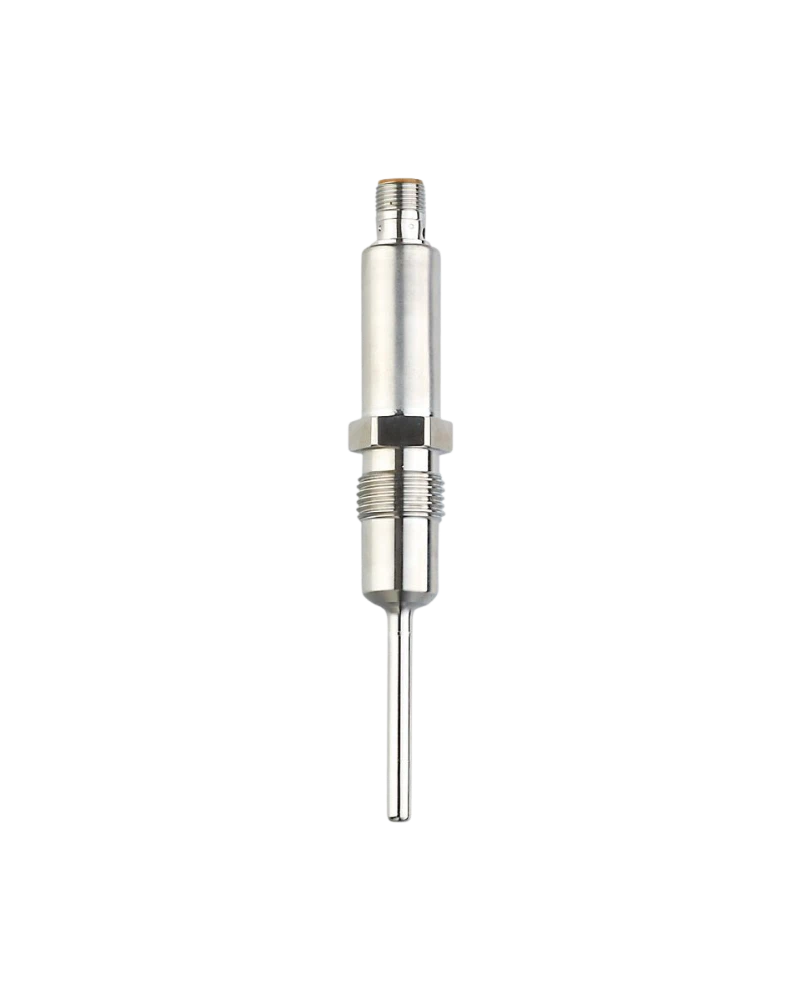

TA2517 is a compact hygienic temperature transmitter designed for reliable process temperature measurement in food, beverage and industrial applications. It features a 50 mm installation length and a Pt1000 Class A sensing element for accurate temperature monitoring. The transmitter provides a scalable 4–20 mA analogue output together with IO-Link communication. Its G 1/2 process connection with sealing cone allows secure installation in process equipment. Stainless-steel construction and high ingress protection make TA2517 suitable for demanding washdown environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Description
TA2517 is designed for temperature measurement in hygienic processes where compact installation and reliable measurement are required. The Pt1000 Class A element provides stable and repeatable temperature readings throughout the specified operating range. The 50 mm probe length provides useful insertion depth for tanks, pipes and processing equipment. Its analogue output can be connected directly to PLC, DCS and process-control systems. IO-Link additionally provides digital parameterisation, diagnostics and process-value communication.
Measuring Principle
The Pt1000 measuring element changes electrical resistance according to the process temperature. Integrated electronics evaluate this resistance and calculate the corresponding temperature value. The calculated value is converted into a proportional 4–20 mA output signal. IO-Link provides additional digital access to measurement and configuration data. This allows continuous temperature monitoring and automated process control.
Hygienic Construction
The transmitter is designed for hygienic process installations using stainless-steel materials. Its G 1/2 sealing-cone connection provides a secure interface to process equipment. The compact probe supports installation in restricted machine and piping locations. High IP protection helps withstand cleaning and washdown conditions. The construction supports reliable operation in food and beverage processing environments.
Pt1000 Class A measuring element
−50…200 °C measuring capability
0…100 °C factory configuration
50 mm installation length
6 mm probe diameter
G 1/2 process connection
Sealing-cone process interface
4–20 mA scalable analogue output
IO-Link 1.1 communication
COM2 communication
18–32 V DC supply
M12 electrical connection
Stainless-steel construction
Electropolished wetted surfaces
High pressure resistance
IP67/IP68/IP69K protection
Reverse-polarity protection
Short-circuit protection
Overload protection
Digital diagnostics
Food processing equipment
Dairy processing systems
Beverage production
Brewing equipment
Hygienic process tanks
Sanitary pipelines
Filling machines
Packaging machinery
CIP systems
SIP systems
Process temperature control
PLC-based automation
Process monitoring
Quality-control systems
Preventive maintenance
| Specification | Details |
|---|---|
| Model | TA2517 |
| Order code | TA-050CLER12--/US |
| Product type | Temperature transmitter |
| Sensor element | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…100 °C |
| Installation length | 50 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Connection type | Sealing cone |
| Output signal | 4–20 mA |
| Output | Scalable analogue |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Communication mode | COM2 |
| Supply voltage | 18–32 V DC |
| Electrical connection | M12 |
| Analogue resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05 | ≤0.5 s |
| Response T09 | ≤2 s |
| Ambient temperature | −25…80 °C |
| Protection rating | IP67/IP68/IP69K |
| Wetted material | Stainless steel 316L |
