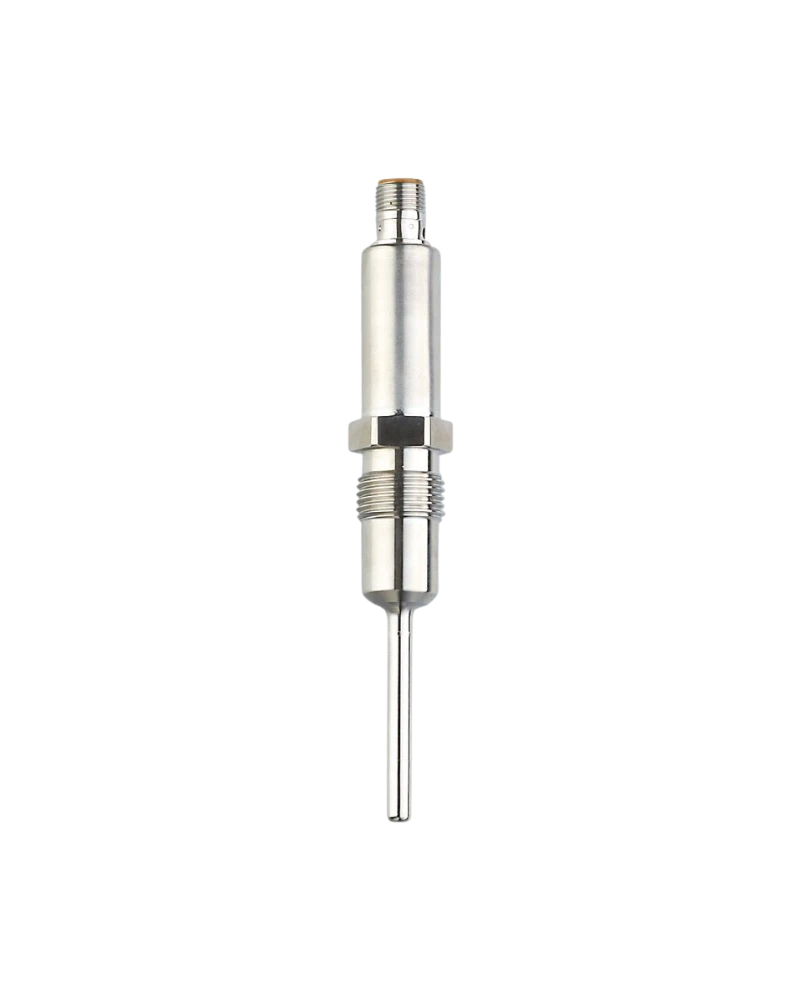

TA2512 is a hygienic 50 mm temperature transmitter designed for food, beverage and sanitary process applications. It uses a Pt1000 Class A element with a −50…200 °C measuring range. Its factory setting is 0…200 °C for broad process-temperature coverage. The transmitter provides configurable 4–20 mA output and IO-Link communication. Its stainless-steel 316L construction, G 1/2 connection and high protection rating provide reliable hygienic operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2512 is designed for accurate temperature measurement in hygienic process systems. Its 50 mm probe provides useful insertion depth for tanks and piping. The Pt1000 Class A element delivers precise temperature sensing. The 4–20 mA output integrates with PLC and control systems. IO-Link provides digital configuration and diagnostics.
TA2512 features electropolished stainless-steel wetted surfaces. The G 1/2 sealing-cone process connection supports hygienic installation. High pressure resistance makes it suitable for demanding process conditions. IP67/IP68/IP69K protection supports cleaning and washdown operations. The sensor is designed for long-term food and beverage processing.
The Pt1000 element changes electrical resistance according to temperature. Internal electronics convert the resistance into a process temperature value. The analogue output transmits the value as 4–20 mA. IO-Link provides digital process information and configuration. Fast response supports dynamic temperature-control applications.
Pt1000 Class A
−50…200 °C
0…200 °C factory setting
50 mm installation length
G 1/2 connection
6 mm probe
4–20 mA
IO-Link 1.1
COM2
M12 connection
Stainless steel 316L
Electropolished wetted parts
160 bar pressure rating
−1000 mbar vacuum resistance
0.04 K resolution
<0.5 / <2 s response
IP67/IP68/IP69K
Food-industry suitability
Digital parameterisation
Food manufacturing
Dairy processing
Beverage production
Breweries
Hygienic tanks
Process pipelines
Filling equipment
CIP systems
SIP systems
Temperature control
Process quality monitoring
PLC automation
SCADA systems
Sanitary machinery
Production monitoring
| Specification | Details |
|---|---|
| Product model | TA2512 |
| Order code | TA-050CLER12--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 50 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| MAWP | 160 bar |
| Output | 4–20 mA |
| Output | Configurable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | <0.5 / <2 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel 316L |
