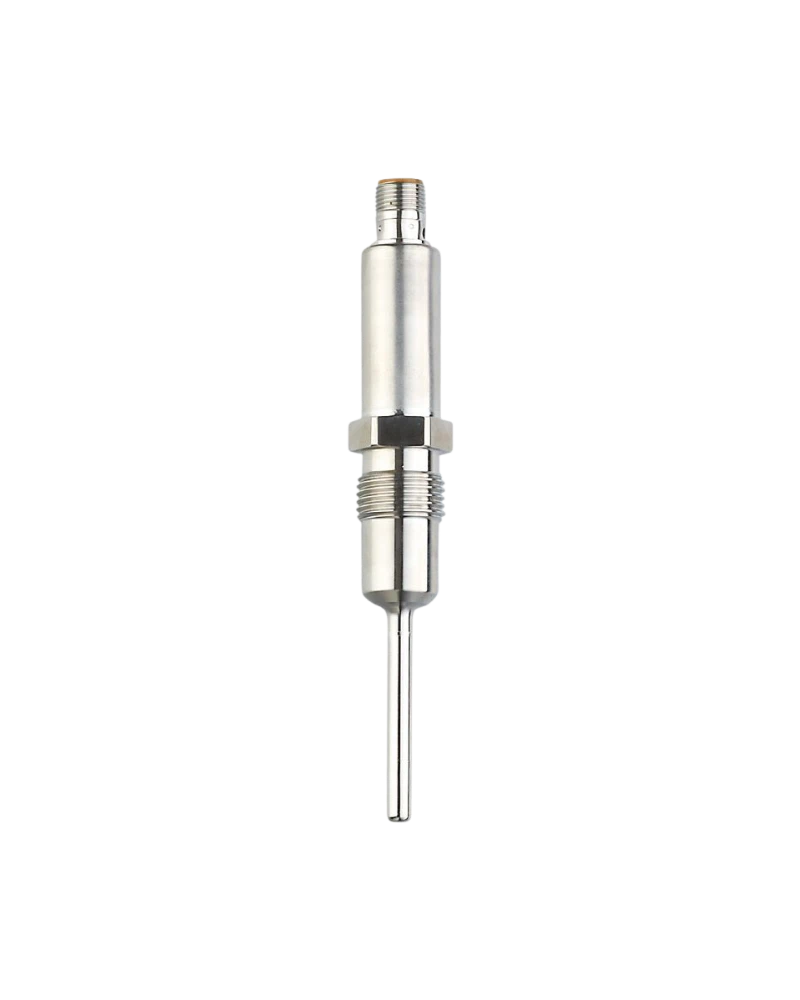

TA2511 is a hygienic temperature transmitter with a 50 mm installation length for food, beverage and process applications. It uses a Pt1000 Class A element and supports a −50…200 °C maximum range. This variant is configured for a factory range suited to −10…150 °C operation. The transmitter provides 4–20 mA output and IO-Link communication. Its G 1/2 sealing-cone connection and electropolished stainless-steel wetted parts support hygienic processing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2511 is designed for hygienic process temperature measurement at a 50 mm insertion depth. Its Pt1000 Class A sensor provides accurate and repeatable readings. The G 1/2 process connection provides secure process integration. The analogue output supports conventional automation. IO-Link enables digital configuration and process diagnostics.
TA2511 uses stainless steel 316L for its wetted components. The electropolished process surface is designed for hygienic applications. The sealing-cone connection supports sanitary process installation. High IP protection supports washdown environments. The robust construction is suitable for continuous food and beverage production.
Temperature changes alter the resistance of the Pt1000 element. Internal electronics process the resistance and calculate temperature. The measured value is transmitted through 4–20 mA. IO-Link provides digital access to the process value and settings. This supports automated temperature control.
Pt1000 Class A
−50…200 °C maximum range
50 mm installation length
Factory range variant
G 1/2 sealing cone
6 mm probe
4–20 mA
IO-Link
M12 connector
Stainless steel 316L
Electropolished wetted surface
160 bar pressure rating
−1000 mbar vacuum resistance
0.04 K resolution
Fast response
IP67/IP68/IP69K
Food-industry design
Digital diagnostics
Food processing
Dairy processing
Beverage production
Breweries
Hygienic tanks
Process piping
Filling machines
CIP systems
SIP systems
Temperature control
Process monitoring
Quality assurance
PLC automation
Sanitary machinery
Production monitoring
| Specification | Details |
|---|---|
| Product model | TA2511 |
| Order code | TA-050CLER12--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 Class A |
| Maximum measuring range | −50…200 °C |
| Factory setting | −10…150 °C class |
| Installation length | 50 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| Output | 4–20 mA |
| Output | Configurable |
| Communication | IO-Link |
| Revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | <0.5 / <2 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel 316L |
