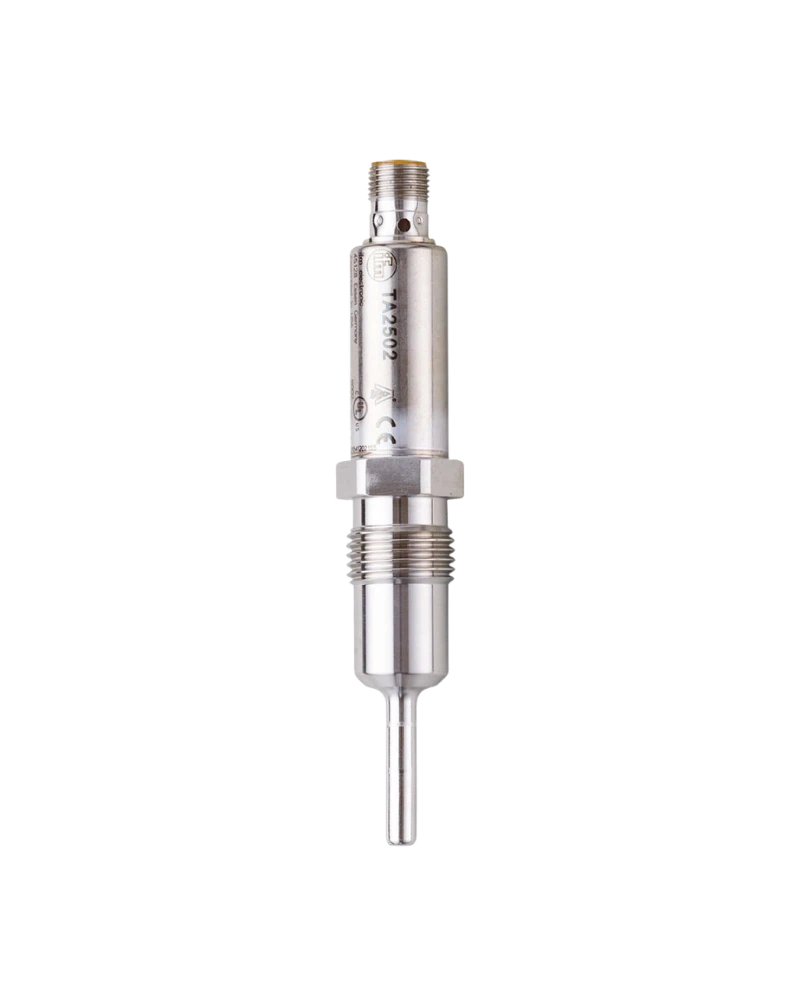

TA2502 is a hygienic temperature transmitter designed for food and beverage processing applications. It uses a Pt1000 Class A element with a −50…200 °C measuring range. The transmitter has a 30 mm installation length and G 1/2 sealing-cone process connection. A 4–20 mA output and IO-Link communication provide flexible automation integration. Its stainless-steel construction and high protection rating support hygienic process environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2502 provides accurate temperature measurement in hygienic process installations. Its 30 mm probe provides compact sensing while maintaining a robust process connection. The Pt1000 Class A element supports precise measurement. The analogue output integrates with PLC systems. IO-Link provides digital configuration, diagnostics and process-data access.
The transmitter is manufactured with stainless-steel wetted surfaces suitable for hygienic processing. The G 1/2 sealing-cone connection provides a reliable process interface. The surface finish supports hygienic process requirements. High IP67/IP68/IP69K protection supports washdown conditions. The device is suitable for liquids and gases.
The Pt1000 element detects process temperature through resistance variation. Electronics calculate the temperature from this resistance. The value is transmitted through a configurable 4–20 mA signal. IO-Link provides digital process information. Fast response supports dynamic process control.
Pt1000 Class A
−50…200 °C
30 mm installation length
G 1/2 process connection
6 mm probe
4–20 mA
IO-Link 1.1
COM2
M12 connection
Stainless steel 316L
Electropolished wetted parts
160 bar pressure rating
0.04 K resolution
Fast response
IP67/IP68/IP69K
Food-industry suitability
Digital parameterisation
PLC integration
Food processing
Dairy production
Beverage manufacturing
Breweries
Process tanks
Hygienic piping
Filling systems
CIP processes
SIP processes
Pump monitoring
Temperature control
Quality control
Process automation
PLC monitoring
Sanitary machinery
| Specification | Details |
|---|---|
| Product model | TA2502 |
| Order code | TA-030CLER12--/US |
| Product type | Hygienic temperature transmitter |
| Sensor | Pt1000 Class A |
| Measuring range | −50…200 °C |
| Factory setting | 0…200 °C |
| Installation length | 30 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 160 bar |
| Vacuum resistance | −1000 mbar |
| Output | 4–20 mA |
| Output | Configurable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response T05/T09 | <0.5 / <2 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Housing | Stainless steel |
