TA2447 is a 150 mm temperature transmitter configured for a 0…100 °C factory measuring range. It uses a Pt1000 Class A element with a maximum measurement range of −50…150 °C. The device provides scalable 4–20 mA output and IO-Link communication. Its G 1/2 process connection and stainless-steel probe provide secure industrial installation. TA2447 is suitable for process temperature monitoring in machinery, tanks and industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2447 is designed for processes where the normal operating temperature falls within the 0…100 °C range. Its 150 mm insertion length provides extended sensing depth. The Pt1000 element provides accurate process measurement. The analogue output allows PLC integration. IO-Link provides digital parameterisation and diagnostics.
The Pt1000 element measures temperature through resistance changes. The electronics calculate the temperature from the measured resistance. A scalable 4–20 mA output communicates the process value. IO-Link provides digital process data. This supports continuous automated monitoring.

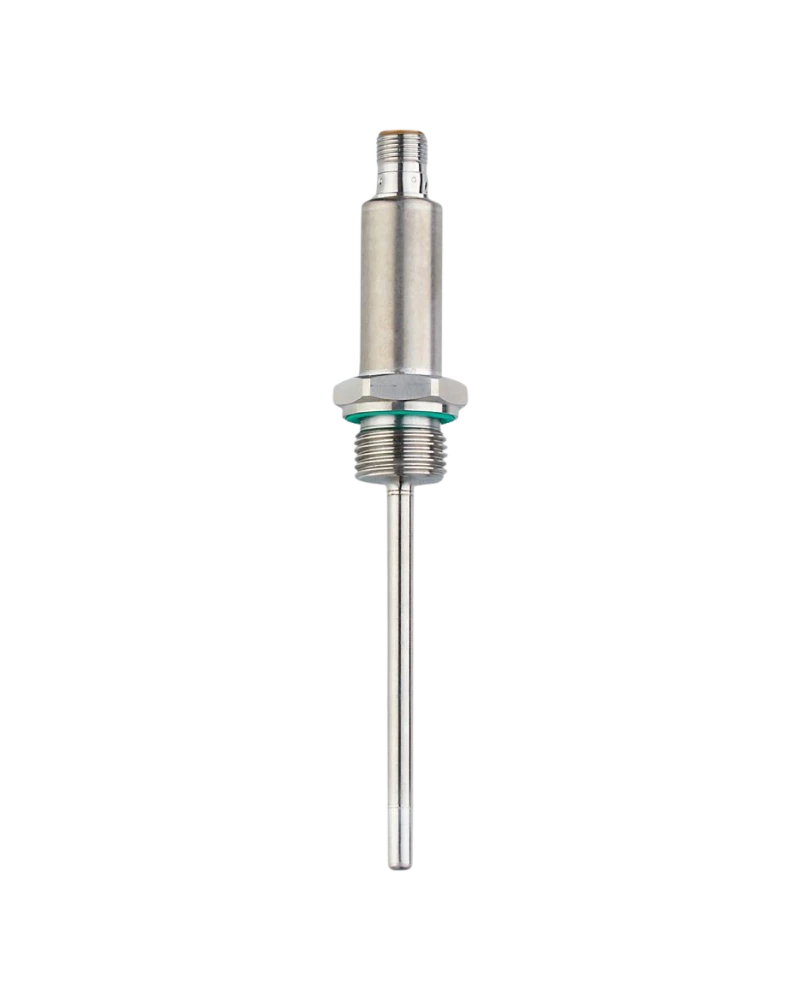

TA2447 uses a stainless-steel cylindrical housing and 6 mm probe. The G 1/2 sealing-cone connection provides reliable process mounting. High IP protection supports wet industrial environments. The device provides strong shock and vibration resistance. It is suitable for long-term industrial operation.
Pt1000 Class A
−50…150 °C maximum range
0…100 °C factory setting
150 mm installation length
G 1/2 connection
6 mm probe
4–20 mA
IO-Link 1.1
COM2
M12 connector
Stainless steel
0.04 K resolution
1 / 3 s response
IP67/IP68/IP69K
Scalable output
Digital diagnostics
PLC integration
Process monitoring
Industrial process systems
Tanks
Pipelines
Pumps
Compressors
Machine tools
Plant engineering
Temperature control
OEM machinery
PLC automation
SCADA
Equipment protection
Maintenance
Process monitoring
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA2447 |
| Order code | TA-150CLER12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Maximum range | −50…150 °C |
| Factory setting | 0…100 °C |
| Installation length | 150 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 300 bar class |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
