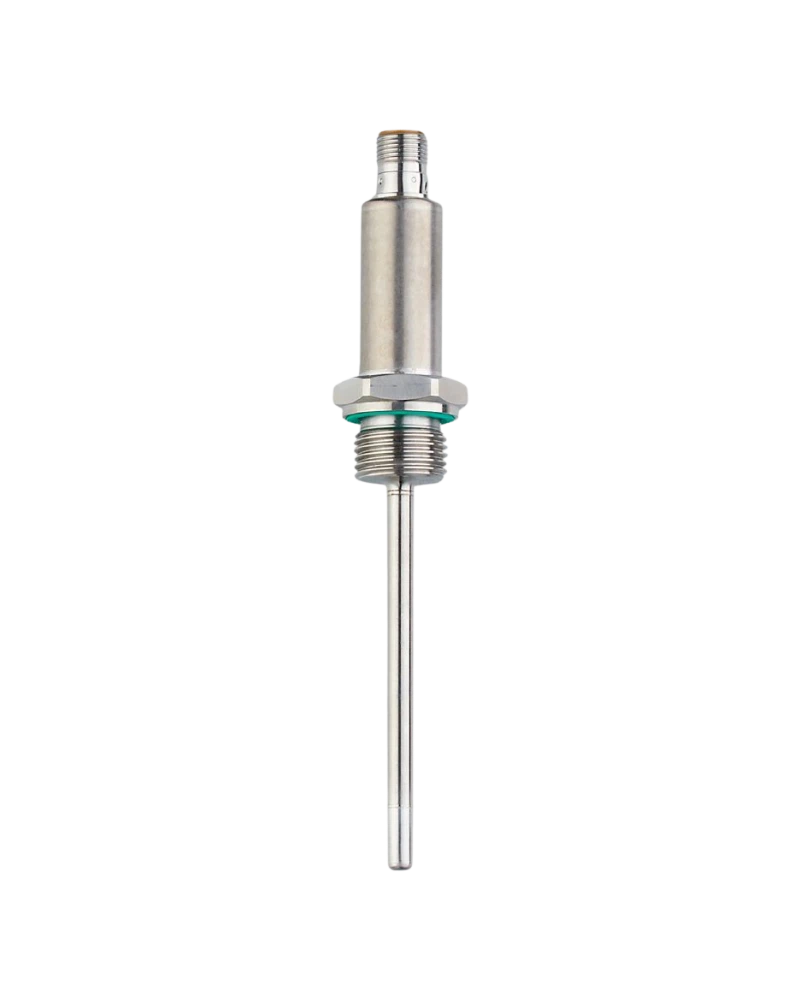

TA2445 is a 150 mm temperature transmitter designed for deep industrial process temperature measurement. It uses a Pt1000 Class A element and supports −50…150 °C. The transmitter provides a scalable 4–20 mA output and IO-Link communication. Its G 1/2 process connection and 6 mm probe provide reliable process installation. TA2445 is suitable for industrial tanks, pipelines, pumps, machinery and plant automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2445 provides extended sensing depth for process applications requiring a 150 mm probe. The Pt1000 Class A element provides accurate and stable temperature measurement. Its analogue output supports PLC and controller integration. IO-Link provides digital parameterisation and process diagnostics. The stainless-steel construction supports demanding industrial environments.
The Pt1000 element changes resistance as the process temperature changes. Electronics evaluate this resistance and calculate the temperature. The analogue output provides the measured value as 4–20 mA. IO-Link provides digital communication. Continuous measurement supports process control.
TA2445 features a stainless-steel housing and 6 mm probe. The G 1/2 connection provides secure process mounting. High pressure resistance supports industrial applications. IP67/IP68/IP69K protection supports demanding environmental conditions. The sensor is designed for continuous industrial use.
Pt1000 Class A
−50…150 °C
150 mm installation length
G 1/2 connection
6 mm probe
4–20 mA
IO-Link
COM2
M12 connector
Stainless steel
High pressure resistance
0.04 K resolution
1 / 3 s response
IP67/IP68/IP69K
Scalable output
Digital diagnostics
PLC integration
Industrial construction
Industrial tanks
Process vessels
Pipelines
Pump systems
Compressor systems
Machine tools
Plant engineering
Process automation
Temperature control
OEM equipment
PLC systems
SCADA
Equipment protection
Maintenance
Industrial monitoring
| Specification | Details |
|---|---|
| Product model | TA2445 |
| Order code | TA-150CLER12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | −50…150 °C |
| Installation length | 150 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 300 bar class |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
