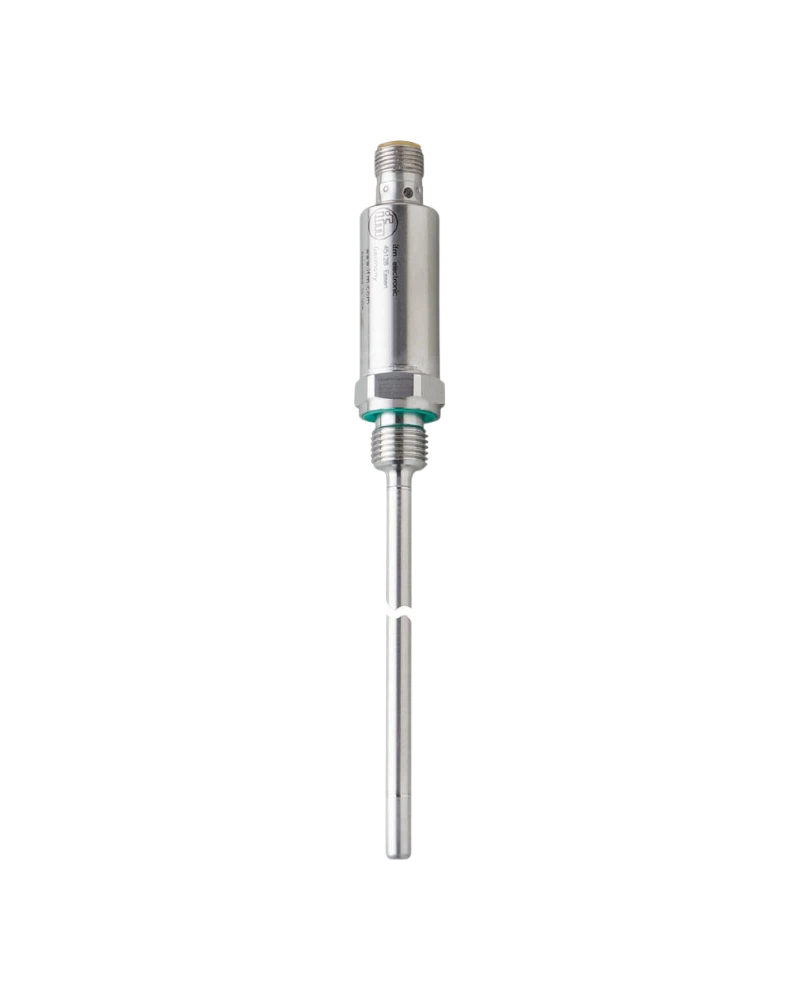

TA2445 is a long-probe industrial temperature transmitter designed for deep process-temperature measurement. Its 150 mm installation length provides extended reach into process vessels, tanks and pipelines. The G 1/2 external thread provides secure mechanical installation. The transmitter combines 4...20 mA analogue output with IO-Link communication for flexible automation integration. Its industrial stainless-steel construction makes it suitable for continuous process monitoring and temperature control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 150 mm installation length allows the sensing point to reach deeper into the process medium. This is useful for large vessels and process pipelines. The sensing element provides stable and repeatable temperature measurement. IO-Link enables digital process-data communication. The analogue output maintains compatibility with conventional control systems.
The G 1/2 external thread provides a secure threaded process interface. The 6 mm probe provides a compact sensing profile. Stainless-steel construction supports industrial mechanical durability. Long probes should be mounted securely to minimise vibration and mechanical loading. Correct seals and fittings should be selected according to process requirements.
The 4...20 mA output supports standard PLC and controller inputs. IO-Link provides digital configuration, diagnostics and process-data access. M12 connectivity simplifies industrial wiring. The transmitter can be integrated into SCADA and industrial IoT architectures. It is suitable for both conventional and smart temperature-monitoring systems.
150 mm installation length
G 1/2 external thread
6 mm probe
4...20 mA output
IO-Link
M12 connector
Long-probe construction
Stainless-steel housing
Liquid measurement
Gas measurement
Process monitoring
Digital diagnostics
PLC integration
Temperature control
Industrial automation
Large process tanks
Process vessels
Pipelines
Cooling systems
Heating systems
Hydraulic equipment
Pumps
Compressors
Industrial machinery
Liquid monitoring
Gas monitoring
PLC automation
Process control
Equipment protection
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2445 |
| Type Code | TA-150CLER12-A-ZVG/US |
| Product Type | Temperature transmitter |
| Measuring Element | Model-specific |
| Accuracy | Model-specific |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 150 mm |
| Probe Diameter | 6 mm |
| Probe Length | 150 mm |
| Process Connection | G 1/2 external |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output Signal | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Housing | Stainless steel |
| Mounting | Threaded |
| Protection | IP67/IP68/IP69K |
| IO-Link Revision | 1.1 |
| Diagnostics | Digital |
| Installation | Process mounted |
| Pack Quantity | 1 pcs |
