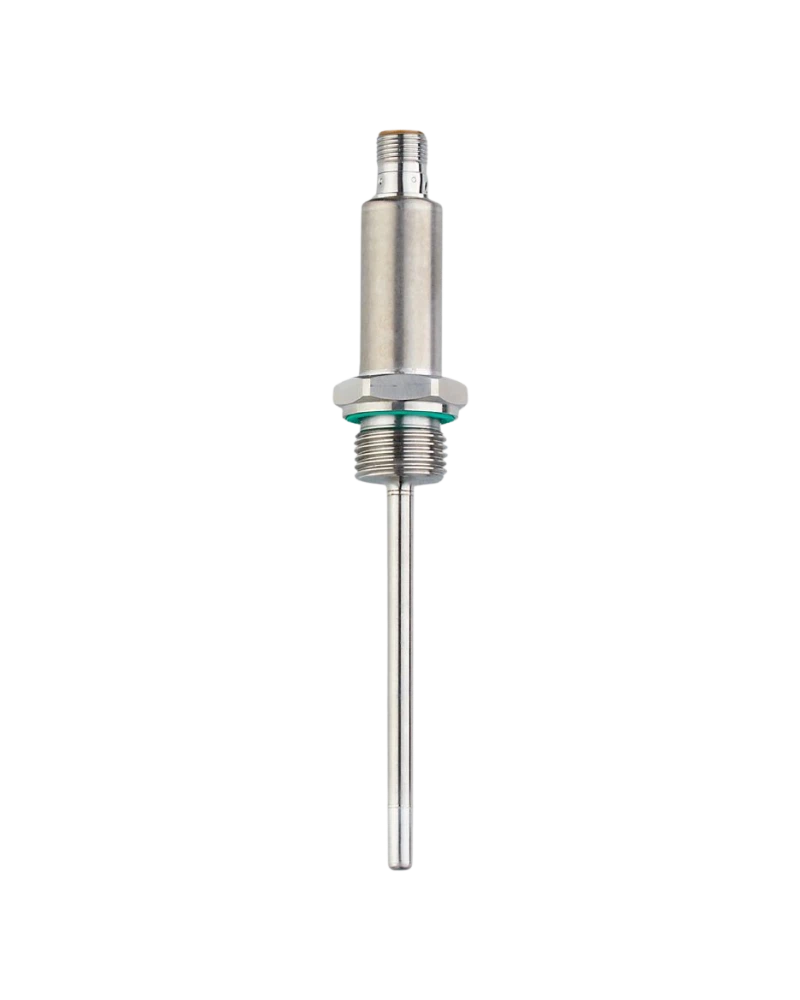

TA2437 is a 100 mm temperature transmitter designed for applications using a 0…100 °C factory setting. It uses a Pt1000 Class A sensing element with a −50…150 °C maximum range. The transmitter provides scalable 4–20 mA output and IO-Link communication. Its G 1/2 process connection and 6 mm probe support industrial process installation. TA2437 is suitable for machinery, piping, tanks and automated temperature control.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2437 is optimized for processes that normally operate between 0 and 100 °C. Its 100 mm insertion length allows deeper measurement than shorter TA24 models. The Pt1000 element provides accurate temperature sensing. The 4–20 mA output supports standard control systems. IO-Link enables digital parameterisation and diagnostics.
The Pt1000 element responds to process temperature through resistance variation. The electronics convert this variation into a temperature value. The analogue output transmits the value to a controller. IO-Link provides digital process information. Continuous measurement enables temperature regulation and monitoring.
TA2437 uses stainless-steel construction with a 6 mm probe. The G 1/2 connection provides secure installation. High pressure resistance supports industrial process conditions. IP67/IP68/IP69K protection supports demanding environments. The sensor is designed for long-term operation.
Pt1000 Class A
−50…150 °C
0…100 °C factory setting
100 mm installation length
G 1/2 connection
4–20 mA
IO-Link
M12 connector
6 mm probe
Stainless steel
High pressure resistance
0.04 K resolution
Fast response
IP67/IP68/IP69K
Scalable analogue output
Digital diagnostics
PLC integration
Process monitoring
Industrial process systems
Tanks
Pipelines
Pumps
Compressors
Machine tools
Plant automation
Temperature control
OEM machinery
PLC systems
SCADA
Process monitoring
Equipment protection
Maintenance
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA2437 |
| Order code | TA-100CLER12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Maximum range | −50…150 °C |
| Factory setting | 0…100 °C |
| Installation length | 100 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 300 bar class |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Supply | 18–32 V DC |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
