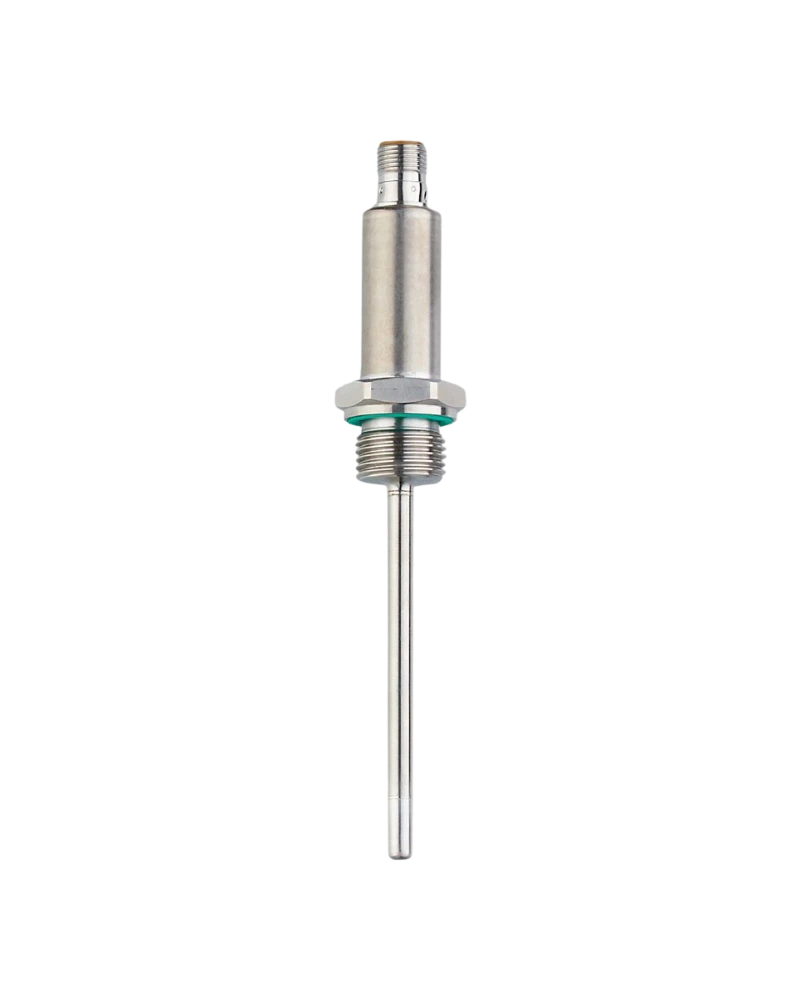

TA2437 is a long-probe temperature transmitter designed for reliable industrial process-temperature monitoring. Its 100 mm installation length provides extended reach into process media. The G 1/2 external thread supports secure threaded mounting. The transmitter provides standard 4...20 mA output together with IO-Link digital communication. Its stainless-steel construction and compact sensing profile make it suitable for process automation and machine-temperature applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 100 mm installation length allows deeper measurement inside tanks and process lines. The sensing element provides repeatable temperature information. The analogue output supports conventional controllers. IO-Link provides additional digital process data. The transmitter is suitable for continuous monitoring and temperature-control applications.
The G 1/2 external thread provides a practical process connection. The 6 mm probe provides a compact sensing profile. Stainless-steel construction supports industrial use. The long probe should be installed securely to avoid unnecessary mechanical stress. Suitable seals and fittings should be selected for the process.
The 4...20 mA output supports PLC integration. IO-Link provides digital configuration and diagnostics. M12 connectivity simplifies field installation. The transmitter can be integrated into SCADA and industrial IoT systems. This supports both standard and connected temperature-monitoring architectures.
100 mm installation length
G 1/2 external thread
6 mm probe
4...20 mA output
IO-Link
M12 connector
Long-probe design
Stainless-steel construction
Liquid measurement
Gas measurement
Digital diagnostics
PLC integration
Process monitoring
Temperature control
Industrial automation
Process pipelines
Process tanks
Industrial vessels
Cooling systems
Heating systems
Hydraulic systems
Pumps
Compressors
Liquid monitoring
Gas monitoring
PLC systems
Process automation
Equipment protection
Thermal management
Industrial IoT
| Specification | Details |
|---|---|
| Product Model | TA2437 |
| Type Code | TA-100CLER12-A-ZVG/US |
| Product Type | Temperature transmitter |
| Measuring Element | Model-specific |
| Accuracy | Model-specific |
| Measuring Range | Model-specific |
| Factory Setting | Model-specific |
| Installation Length | 100 mm |
| Probe Diameter | 6 mm |
| Process Connection | G 1/2 external |
| Media | Liquids and gases |
| Analogue Output | 1 |
| Output | 4...20 mA |
| Communication | IO-Link |
| Connector | M12 |
| Supply Voltage | 18...32 V DC |
| Current Consumption | <50 mA |
| Housing | Stainless steel |
| Mounting | Threaded |
| Protection | IP67/IP68/IP69K |
| IO-Link Revision | 1.1 |
| Diagnostics | Digital |
| Installation | Process mounted |
| Pack Quantity | 1 pcs |
