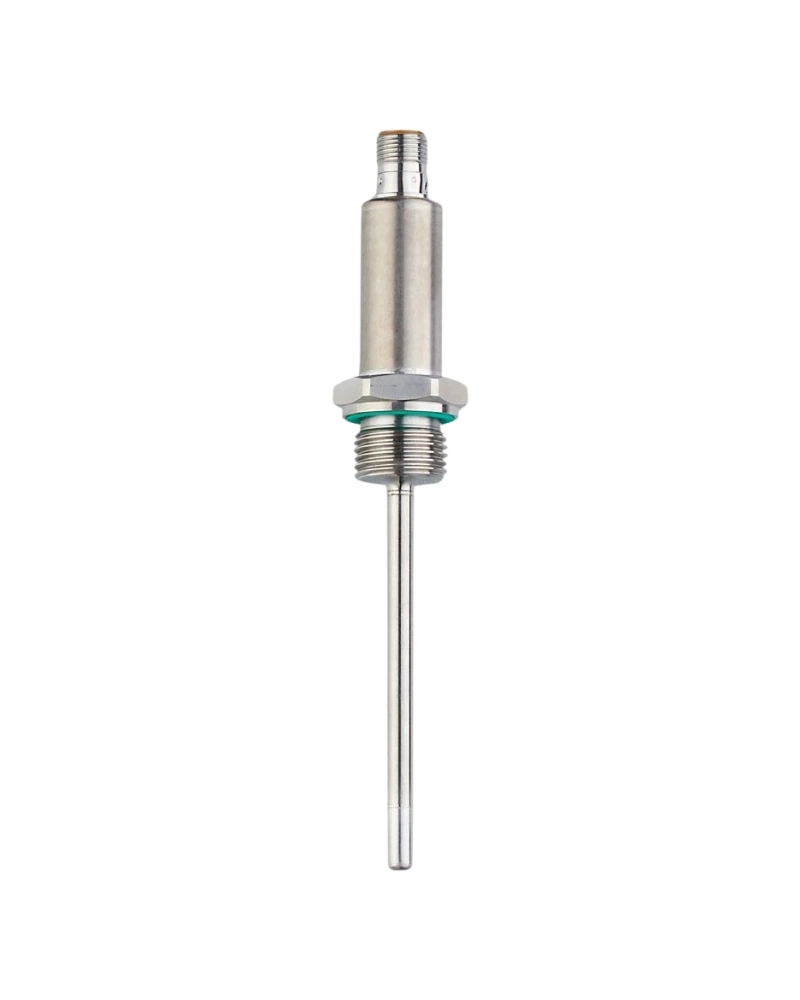

TA2435 is a 100 mm industrial temperature transmitter designed for deeper process temperature measurement. It uses a Pt1000 Class A element and supports −50…150 °C. The transmitter provides a scalable 4–20 mA output with IO-Link communication. Its G 1/2 process connection provides secure installation into industrial equipment. TA2435 is suitable for tanks, pipelines, pumps, machinery and process automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2435 provides reliable temperature measurement where 100 mm insertion depth is required. The Pt1000 Class A element delivers accurate process readings. The analogue output provides standard automation integration. IO-Link adds digital parameterisation and diagnostics. Its stainless-steel construction supports demanding industrial environments.
The Pt1000 element detects temperature through resistance changes. Internal electronics process this resistance into a temperature value. The 4–20 mA output communicates the process value continuously. IO-Link provides digital communication. This allows automated temperature control and monitoring.
TA2435 uses stainless-steel construction and a 6 mm probe. The G 1/2 sealing-cone process connection supports reliable installation. High pressure resistance allows use in industrial processes. High IP protection supports wet and demanding conditions. The sensor is designed for continuous operation.
Pt1000 Class A
−50…150 °C
100 mm installation length
G 1/2 connection
6 mm probe
4–20 mA
IO-Link 1.1
COM2
M12 connection
Stainless steel
High pressure resistance
0.04 K resolution
1 / 3 s response
IP67/IP68/IP69K
Scalable output
Digital diagnostics
PLC integration
Industrial construction
Process tanks
Industrial piping
Pumps
Compressors
Machine tools
Plant engineering
Temperature control
Process monitoring
OEM machinery
PLC automation
SCADA
Equipment protection
Maintenance
Industrial automation
Production systems
| Specification | Details |
|---|---|
| Product model | TA2435 |
| Order code | TA-100CLER12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | −50…150 °C |
| Installation length | 100 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 300 bar class |
| Output | 4–20 mA |
| Output configuration | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Transmission | COM2 |
| Supply | 18–32 V DC |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
