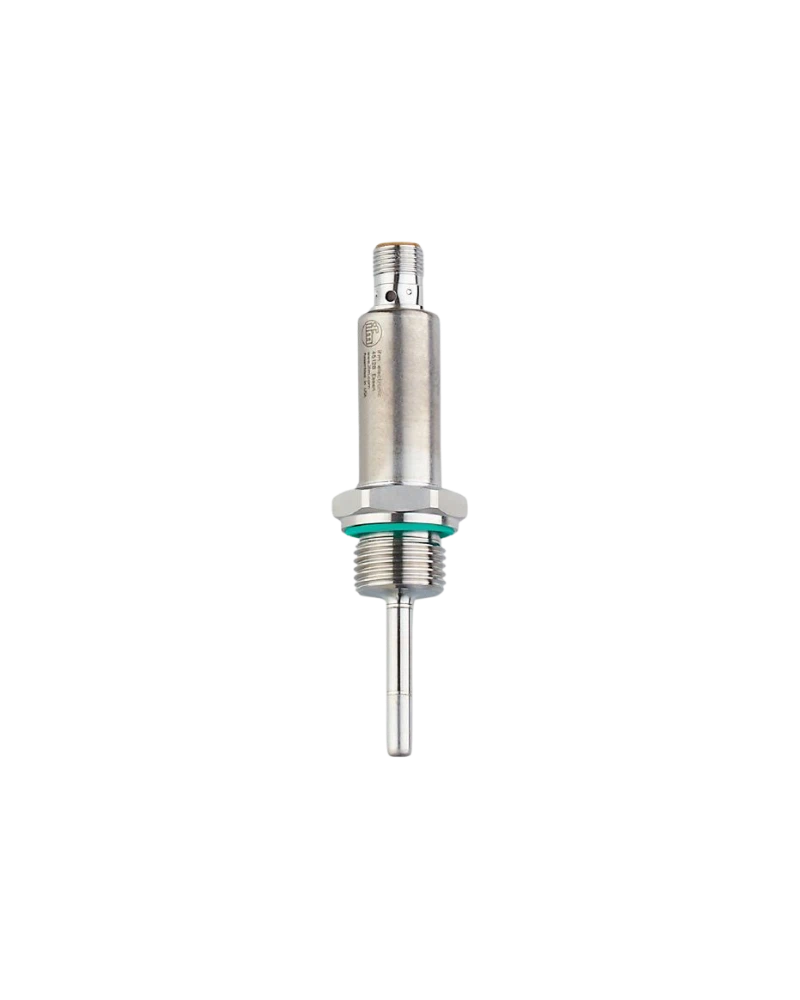

TA2417 is a 50 mm temperature transmitter designed for applications using a 0…100 °C factory measuring range. It uses a Pt1000 Class A element with a maximum range of −50…150 °C. The transmitter provides a scalable 4–20 mA output and IO-Link communication. Its G 1/2 process connection and stainless-steel housing support reliable industrial installation. TA2417 is suitable for temperature monitoring in process equipment, machinery and automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2417 is optimized for applications where the normal operating temperature is within the 0…100 °C range. The 50 mm probe provides moderate insertion depth. Its Pt1000 Class A sensor provides accurate measurement. The analogue output can be integrated into PLC systems. IO-Link provides digital configuration and process diagnostics.
The Pt1000 resistance changes in relation to process temperature. Internal electronics convert the resistance into a temperature value. A 4–20 mA signal provides continuous process transmission. IO-Link enables digital process-data access. This architecture supports reliable temperature control.
TA2417 uses stainless steel for its housing and wetted probe. The G 1/2 connection provides secure process installation. Its compact 50 mm probe is suitable for many machine installations. High IP protection supports industrial environments. The transmitter is designed for continuous operation.
Pt1000 Class A
−50…150 °C maximum range
0…100 °C factory setting
50 mm installation length
G 1/2 connection
4–20 mA
IO-Link
M12 connector
Stainless steel
6 mm probe
High pressure resistance
0.04 K resolution
1 / 3 s response
IP67/IP68/IP69K
Scalable output
Digital diagnostics
PLC compatible
Process monitoring
Process temperature monitoring
Industrial machinery
Pump systems
Process piping
Plant engineering
OEM equipment
Temperature control
PLC systems
SCADA systems
Equipment protection
Maintenance
Process alarms
Industrial automation
Production machinery
Process monitoring
| Specification | Details |
|---|---|
| Product model | TA2417 |
| Order code | TA-050CLER12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Maximum range | −50…150 °C |
| Factory setting | 0…100 °C |
| Installation length | 50 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 300 bar class |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Supply | 18–32 V DC |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
| Application | Industrial temperature monitoring |
