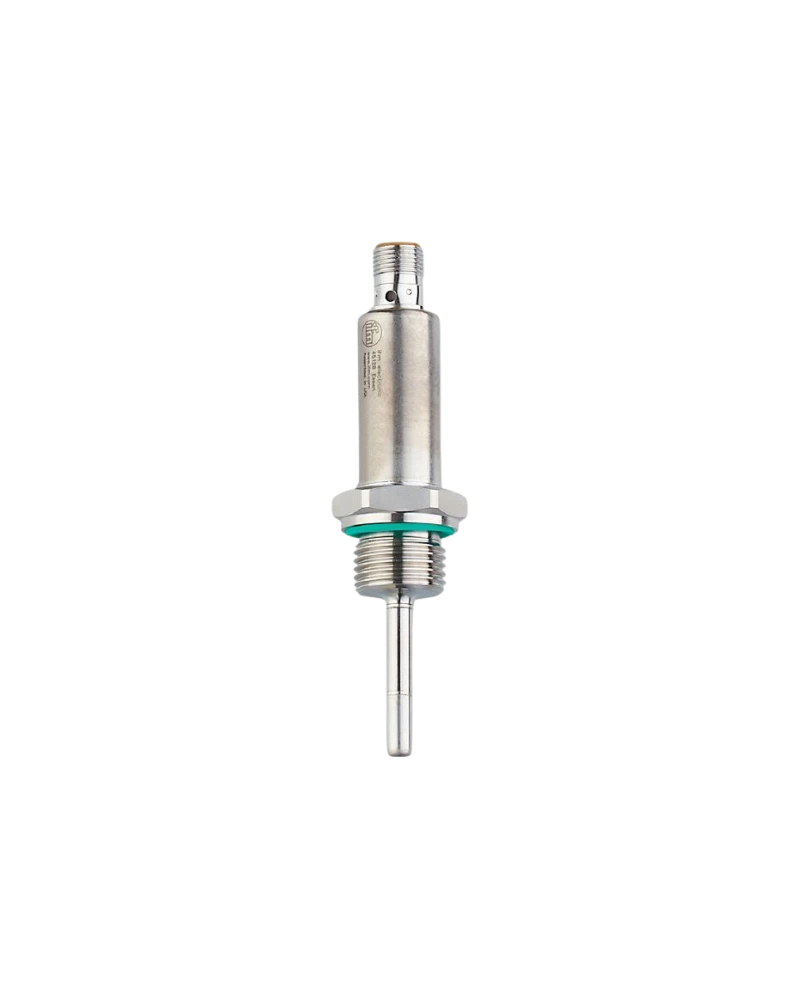

TA2415 is a 50 mm temperature transmitter designed for industrial process measurement. It uses a Pt1000 Class A element with a −50…150 °C measuring range. The transmitter provides scalable 4–20 mA output and IO-Link communication. Its G 1/2 process connection and 6 mm probe support secure industrial installation. TA2415 is suitable for machinery, process piping, pumps and industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
TA2415 provides reliable temperature measurement at a 50 mm insertion depth. Its Pt1000 Class A element delivers accurate and repeatable readings. The G 1/2 process connection provides flexible industrial installation. A scalable 4–20 mA signal allows direct PLC integration. IO-Link provides digital configuration and diagnostics.
The Pt1000 element measures temperature through resistance variation. Internal electronics calculate the corresponding process temperature. The analogue output communicates the value as 4–20 mA. IO-Link provides digital process information. This enables continuous automated temperature control.
TA2415 features stainless-steel construction for industrial durability. The 6 mm probe supports compact process installation. Its G 1/2 sealing-cone connection provides a secure process interface. High IP protection supports moisture-intensive environments. The sensor is suitable for long-term process operation.
Pt1000 Class A
−50…150 °C
50 mm installation length
G 1/2 connection
6 mm probe
4–20 mA
IO-Link 1.1
COM2
M12 connector
Stainless steel
High pressure resistance
0.04 K resolution
Fast response
IP67/IP68/IP69K
Reverse polarity protection
Short-circuit protection
Overload protection
PLC integration
Digital diagnostics
Industrial process systems
Pumps
Compressors
Machine tools
Process piping
Process tanks
Plant engineering
Temperature control
OEM machinery
PLC automation
SCADA systems
Equipment protection
Maintenance
Process monitoring
Industrial automation
| Specification | Details |
|---|---|
| Product model | TA2415 |
| Order code | TA-050CLER12-A-ZVG/US |
| Sensor | Pt1000 Class A |
| Measuring range | −50…150 °C |
| Factory setting | −50…150 °C |
| Installation length | 50 mm |
| Probe diameter | 6 mm |
| Process connection | G 1/2 external |
| Sealing | Sealing cone |
| Media | Liquids and gases |
| Pressure rating | 300 bar class |
| Output | 4–20 mA |
| Output configuration | Scalable |
| Communication | IO-Link |
| Revision | 1.1 |
| Supply | 18–32 V DC |
| Current consumption | <50 mA |
| Resolution | 0.04 K |
| Accuracy | ±0.3 K + ±0.1% MS |
| Response | 1 / 3 s |
| Ambient | −25…80 °C |
| Storage | −40…100 °C |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Housing | Stainless steel |
